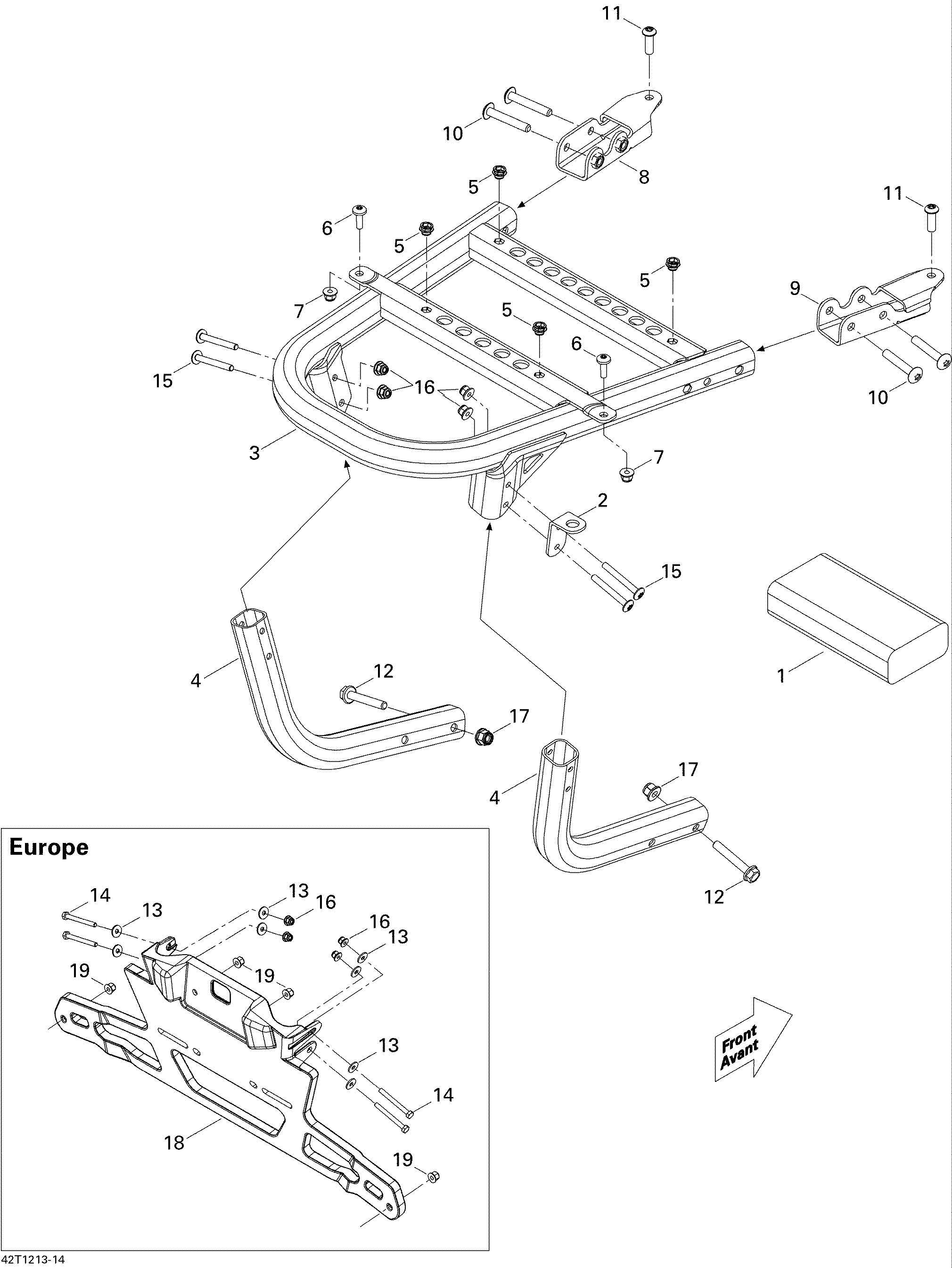

09- Rear Cargo Box для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1704700148 Tool KitTool Kit
-
2705005837 Flag Support. Except EuropeFlag Support. Except Europe
-
3715001894 Rear SupportRear Support
-
4705004981 Rear TubeRear Tube
-
5293450274 InsertInsert
-
6250000075 Torx Screw M6 X 20Torx Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8705004977 LH Front BracketLH Front Bracket
-
9705004978 RH Front BracketRH Front Bracket
-
10250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
11250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
12207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
13234062410 Flat Washer 6 mm. Except EuropeFlat Washer 6 mm. Except Europe
-
13234062410 Flat Washer 6 mm. EuropeFlat Washer 6 mm. Europe
-
14207066044 Hex. Screw M6 X 60. EuropeHex. Screw M6 X 60. Europe
-
15207066044 Hex. Screw M6 X 60. Except EuropeHex. Screw M6 X 60. Except Europe
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18708300553 Plate Support. EuropePlate Support. Europe
-
19233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
