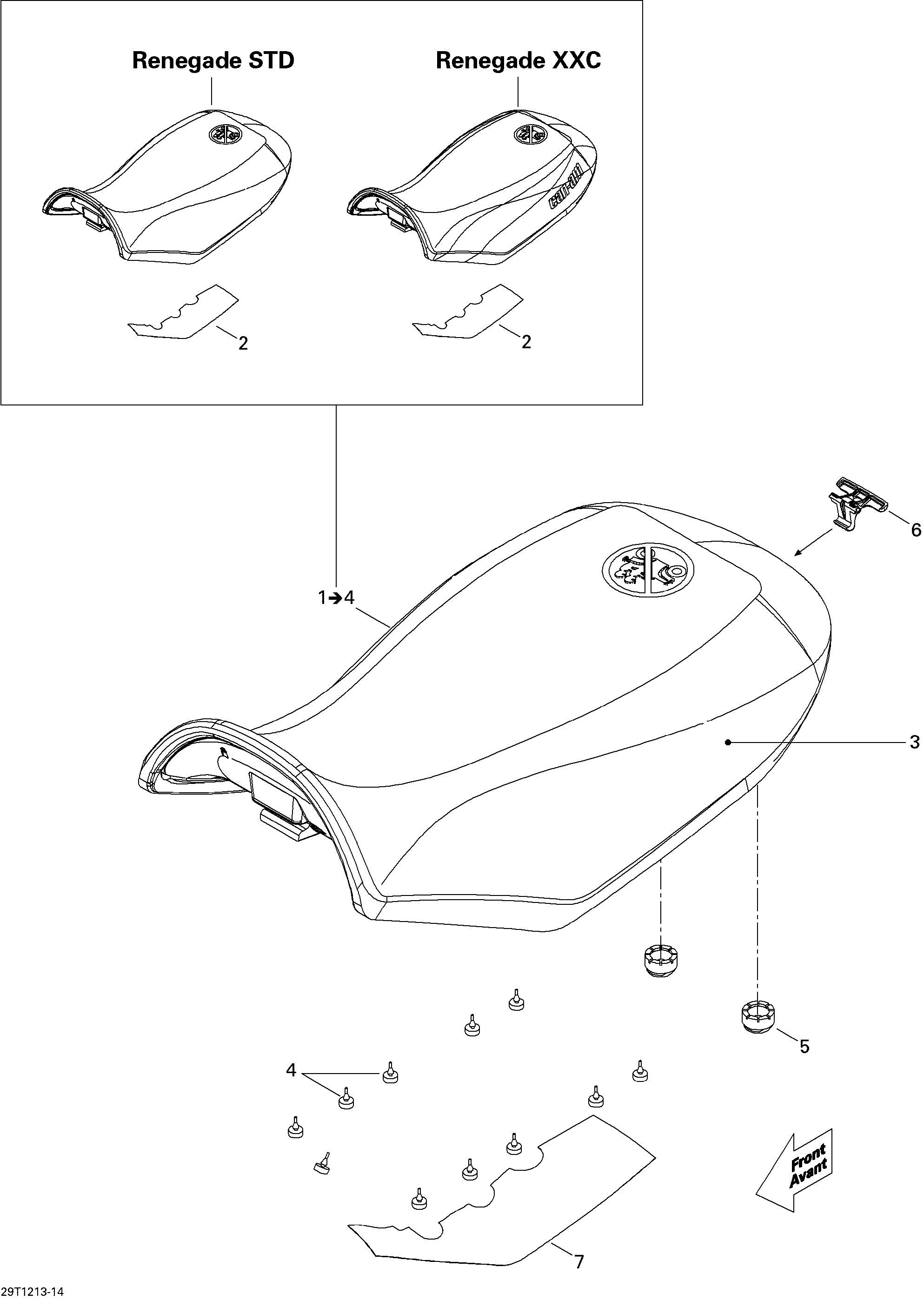

09- Seat для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1715500356 Seat Ass'y. Renegade STD, Includes 1 to 4Seat Ass'y. Renegade STD, Includes 1 to 4
-
1715500357 Seat Ass'y. Renegade XXC, Includes 1 to 4Seat Ass'y. Renegade XXC, Includes 1 to 4
-
2705005762 Heat ShieldHeat Shield
-
3708000887 Seat Cover. Renegade STDSeat Cover. Renegade STD
-
3708000886 Seat Cover. Renegade XXCSeat Cover. Renegade XXC
-
4708000759 Rubber StopperRubber Stopper
-
5708000760 Bumper RubberBumper Rubber
-
6708000914 LatchLatch
-
7705005762 Heat ShieldHeat Shield
