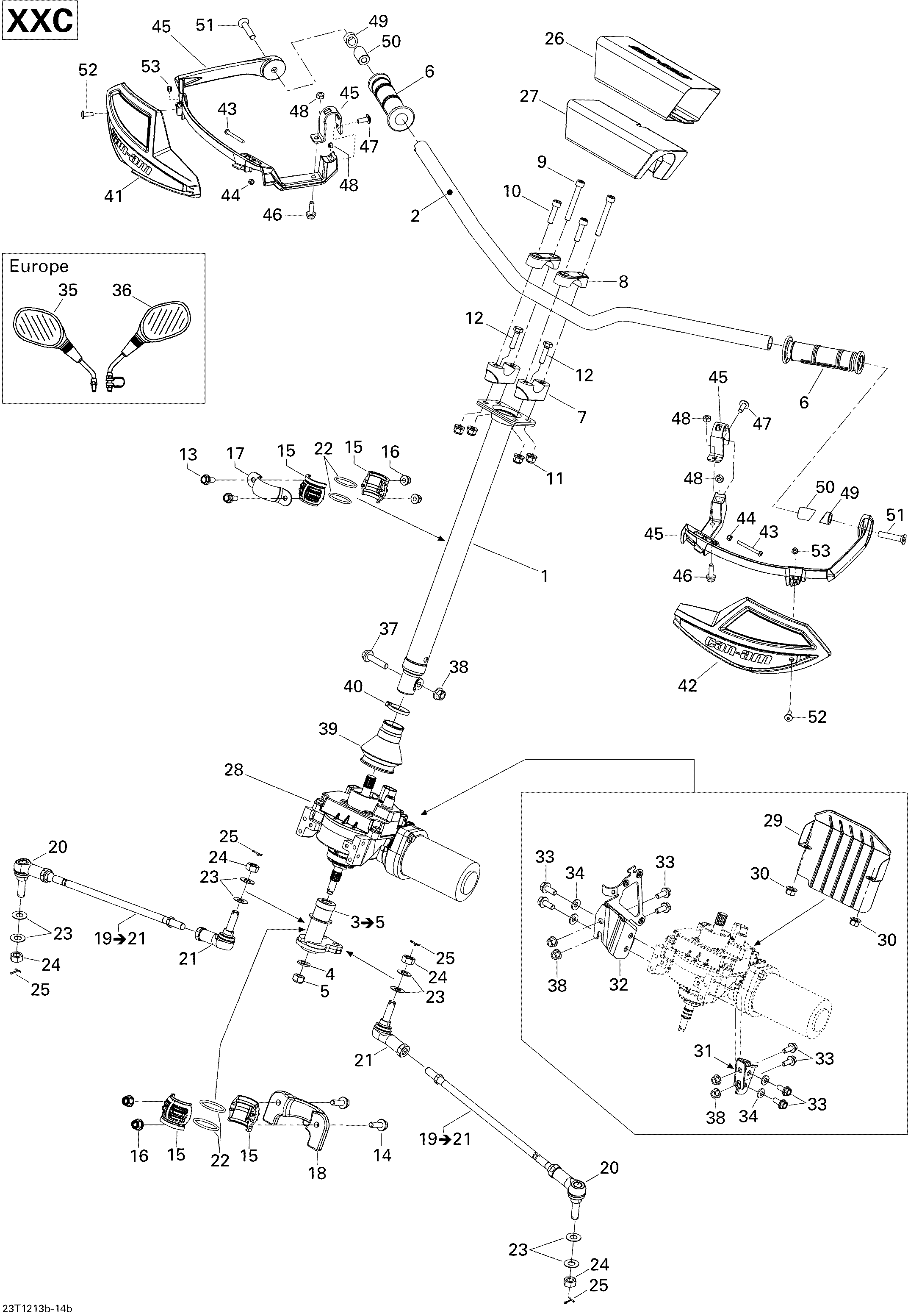

07- Steering XXC для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1709400703 Upper Main TubeUpper Main Tube
-
2709400513 Aluminum- Handle BarAluminum- Handle Bar
-
3703500785 Pitman Kit. Includes 3 to 5Pitman Kit. Includes 3 to 5
-
4250200086 Flat WasherFlat Washer
-
5250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
6709400493 Handle GripHandle Grip
-
7709400497 Steering SupportSteering Support
-
8709400496 SupportSupport
-
9205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
10205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
11233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
12207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
15709400783 Spherical Half BushingSpherical Half Bushing
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17709400827 Upper Column AttachmentUpper Column Attachment
-
18709400912 Lower Column AttachmentLower Column Attachment
-
19703500783 Tie-Rod Ass'y. Includes 19 to 21Tie-Rod Ass'y. Includes 19 to 21
-
20709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
21709400490 Ball JointBall Joint
-
22293300068 O-RingO-Ring
-
23706200281 Hardened WasherHardened Washer
-
24250100099 Nut M12Nut M12
-
25211400013 Cotter PinCotter Pin
-
26709400519 CoverCover
-
27709400422 FoamFoam
-
28709401071 Power Steering ModulePower Steering Module
-
29709401005 Heat DeflectorHeat Deflector
-
30233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
31709400848 Power Steering Module BracketPower Steering Module Bracket
-
32709400994 RH Steering BracketRH Steering Bracket
-
33207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
34234281474 Conical Spring Washer M8Conical Spring Washer M8
-
35709400406 LH Mirror. EuropeLH Mirror. Europe
-
36709400523 RH Mirror. EuropeRH Mirror. Europe
-
37207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
38233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
39709400674 BellowsBellows
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41709400530 RH Air DeflectorRH Air Deflector
-
42709400531 LH Air DeflectorLH Air Deflector
-
43205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
44232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
45715000545 Deflector Support KitDeflector Support Kit
-
46207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
48232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
49709400161 BracketBracket
-
50709400162 BracketBracket
-
51205384034 Socket Head ScrewSocket Head Screw
-
52250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
53232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
