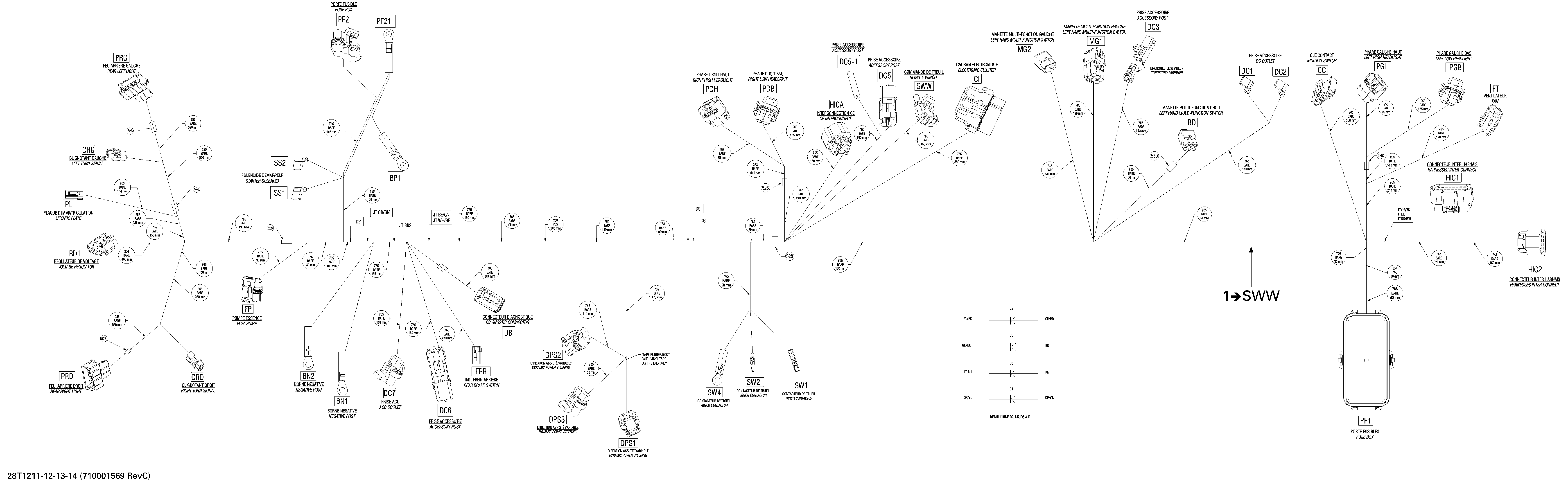

10- Main Harness для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1710001569 Main Harness. Includes 1 to SWWMain Harness. Includes 1 to SWW
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
426515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
BD409012100 Female TerminalFemale Terminal
-
BD710000080 CapCap
-
BD710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
BD710000402 Wire SealWire Seal
-
BN1710000913 TerminalTerminal
-
BN2278001392 Open BarrelOpen Barrel
-
BP1278001392 Open BarrelOpen Barrel
-
CC293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CC710000274 Female TerminalFemale Terminal
-
CC710000848 LockLock
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710001635 TerminalTerminal
-
CI515175812 PlugPlug
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175803 Wire SealWire Seal
-
CI710000399 Female HousingFemale Housing
-
CI710001131 Female TerminalFemale Terminal
-
CRD409012100 Female TerminalFemale Terminal
-
CRD710000402 Wire SealWire Seal
-
CRG409012100 Female TerminalFemale Terminal
-
CRG710000402 Wire SealWire Seal
-
D11409012700 DiodeDiode
-
D2409012700 DiodeDiode
-
D5409012700 DiodeDiode
-
D6409012700 DiodeDiode
-
DB293000052 Sealing CapSealing Cap
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB278001665 Female TerminalFemale Terminal
-
DB710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
DC1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC3515175231 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC3710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC5278000223 Female TerminalFemale Terminal
-
DC5278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC5278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC5278000218 Wire SealWire Seal
-
DC5278000216 Wire SealWire Seal
-
DC5278001065 Wire SealWire Seal
-
DC5710000992 ClipClip
-
DC5-1278001007 Insulated SheathInsulated Sheath
-
DC5-1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC5-1710000421 Female TerminalFemale Terminal
-
DC6278000223 Female TerminalFemale Terminal
-
DC6278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC6278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC6278000218 Wire SealWire Seal
-
DC6278000216 Wire SealWire Seal
-
DC6710000992 ClipClip
-
DC7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC7710001157 HousingHousing
-
DC7710001323 LockLock
-
DPS1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS1710001161 HousingHousing
-
DPS1710001162 LockLock
-
DPS1710001163 Wire SealWire Seal
-
DPS1710001164 Female TerminalFemale Terminal
-
DPS1710001114 CapCap
-
DPS1710001225 CapCap
-
DPS2278001325 Fuse HolderFuse Holder
-
DPS2710000113 Female TerminalFemale Terminal
-
DPS2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS3710001157 HousingHousing
-
DPS3710001323 LockLock
-
FP278001014 Female TerminalFemale Terminal
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP278001013 Wire SealWire Seal
-
FP710001340 Female TerminalFemale Terminal
-
FP515176621 Wire SealWire Seal
-
FRR515175231 Female TerminalFemale Terminal
-
FRR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRR293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FT409004300 Male TerminalMale Terminal
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
HIC1710001230 SealSeal
-
HIC1710001233 SealSeal
-
HIC1710001229 TerminalTerminal
-
HIC1710001228 TerminalTerminal
-
HIC1710001226 HousingHousing
-
HIC1710001225 CapCap
-
HIC1710001221 LockLock
-
HIC2710001233 SealSeal
-
HIC2710001229 TerminalTerminal
-
HIC2710001228 TerminalTerminal
-
HIC2710001225 CapCap
-
HIC2710001221 LockLock
-
HIC2710001332 Seal WireSeal Wire
-
HIC2710001928 HousingHousing
-
HICA710001233 SealSeal
-
HICA710001229 TerminalTerminal
-
HICA710001225 CapCap
-
HICA710001221 LockLock
-
HICA710001332 Seal WireSeal Wire
-
HICA710001928 HousingHousing
-
MG1409011300 Male TerminalMale Terminal
-
MG1409012300 SealSeal
-
MG1710000080 CapCap
-
MG1710000402 Wire SealWire Seal
-
MG1710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MG2409012100 Female TerminalFemale Terminal
-
MG2409012300 SealSeal
-
MG2710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MG2710000402 Wire SealWire Seal
-
PDB710001427 Wire SealWire Seal
-
PDB278002578 TerminalTerminal
-
PDH710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PDH710001427 Wire SealWire Seal
-
PDH710001873 TerminalTerminal
-
PF1278000999 Wire SealWire Seal
-
PF1415128501 SealSeal
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF1710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF1710000781 Fuse PullerFuse Puller
-
PF1710000840 CapCap
-
PF1710001026 Fuse CoverFuse Cover
-
PF1278002165 Bus BarBus Bar
-
PF1278002172 FoamFoam
-
PF1278002172 FoamFoam
-
PF1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1710001778 RelayRelay
-
PF1515177009 Female TerminalFemale Terminal
-
PF1515177012 Female TerminalFemale Terminal
-
PF1710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PF2710001047 Fuse, 40 AMPFuse, 40 AMP
-
PF2710001200 Fuse 30 amp.Fuse 30 amp.
-
PF2710001633 LockLock
-
PF2710001636 TerminalTerminal
-
PF2710001905 Terminal JointTerminal Joint
-
PF2710001996 HousingHousing
-
PF21710000526 Protector CapProtector Cap
-
PF21710000913 TerminalTerminal
-
PF21233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
PGB710001427 Wire SealWire Seal
-
PGB278002578 TerminalTerminal
-
PGH710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PGH710001427 Wire SealWire Seal
-
PGH710001873 TerminalTerminal
-
PL515175231 Female TerminalFemale Terminal
-
PL515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PL293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PRD415128501 SealSeal
-
PRG415128501 SealSeal
-
RD1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
RD1710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RD1710000882 CapCap
-
RD1710001934 TerminalTerminal
-
RD1710001932 SealSeal
-
SS1409010300 Female TerminalFemale Terminal
-
SS1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
SS2409010300 Female TerminalFemale Terminal
-
SS2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
SW1278001007 Insulated SheathInsulated Sheath
-
SW1710000421 Female TerminalFemale Terminal
-
SW2278001008 Insulated SheathInsulated Sheath
-
SW2278002261 Female TerminalFemale Terminal
-
SW4278000992 Open BarrelOpen Barrel
-
SWW278000223 Female TerminalFemale Terminal
-
SWW278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
SWW278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
SWW278000216 Wire SealWire Seal
-
SWW710000504 Wire SealWire Seal
-
SWW278001065 Wire SealWire Seal
-
SWW710000992 ClipClip
