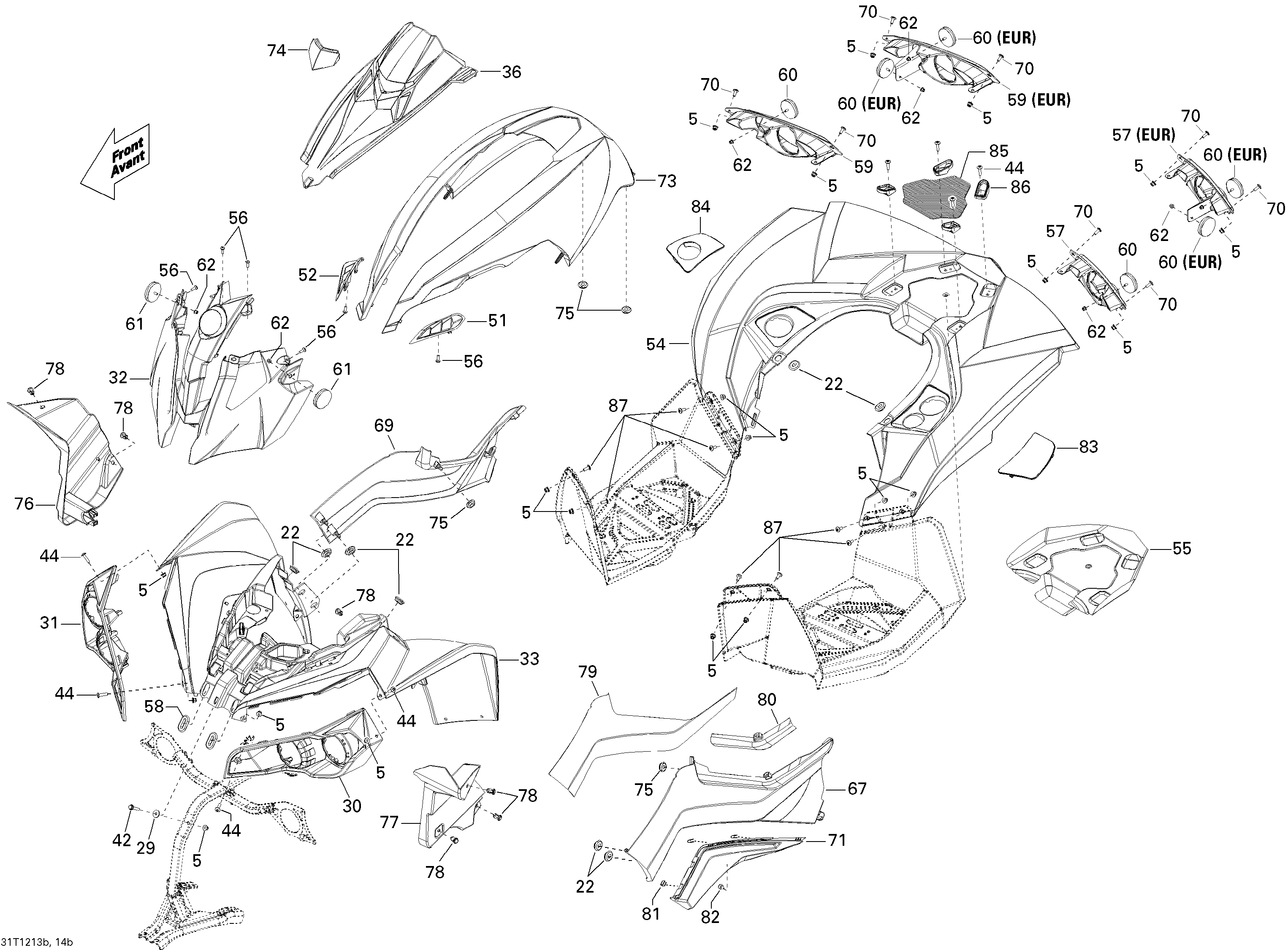

09- Body And Accessories 2 для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
5233261434 Flanged Elastic Nut M6. STDFlanged Elastic Nut M6. STD
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
22705000321 Oval WasherOval Washer
-
29224061201 Flat WasherFlat Washer
-
30705004508 LH Front FaciaLH Front Facia
-
31705004509 RH Front FaciaRH Front Facia
-
32705003948 Front FaciaFront Facia
-
33715000737 Front Fender Kit, Yellow. STDFront Fender Kit, Yellow. STD
-
33715000742 Front Fender Kit, Black. XXCFront Fender Kit, Black. XXC
-
36705003556 DashboardDashboard
-
42207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
44250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
51705002276 LH Grill. STDLH Grill. STD
-
51705002652 LH Grill. XXCLH Grill. XXC
-
52705002277 RH Grill. STDRH Grill. STD
-
52705002653 RH Grill. XXCRH Grill. XXC
-
54715000499 Rear Fender Kit, Black. XXCRear Fender Kit, Black. XXC
-
54715000760 Rear Fender Kit, Yellow. STDRear Fender Kit, Yellow. STD
-
55705005840 Reflective SheetReflective Sheet
-
56250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
57705004731 LH Rear Facia. North America, InternationalLH Rear Facia. North America, International
-
57705004927 LH Rear Facia. EuropeLH Rear Facia. Europe
-
58705003668 Oblong GrommetOblong Grommet
-
59705004732 RH Rear Facia. North America, InternationalRH Rear Facia. North America, International
-
59705004926 RH Rear Facia. EuropeRH Rear Facia. Europe
-
60705002408 Reflector, Red. North America, InternationalReflector, Red. North America, International
-
60705002408 Reflector, RedReflector, Red
-
61705002409 Reflector, Amber. North America, InternationalReflector, Amber. North America, International
-
62233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
62233251434 Flanged Elastic Nut M5. North America, InternationalFlanged Elastic Nut M5. North America, International
-
67705002946 LH Lateral Panel, Yellow. XXCLH Lateral Panel, Yellow. XXC
-
67705002958 LH Lateral Panel. STDLH Lateral Panel. STD
-
69705002949 RH Lateral Panel, Yellow. XXCRH Lateral Panel, Yellow. XXC
-
69705002959 RH Lateral Panel. STDRH Lateral Panel. STD
-
70250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
71705004988 Panel ExtensionPanel Extension
-
73715001495 Central Pannel Kit, Yellow. EuropeCentral Pannel Kit, Yellow. Europe
-
73715001493 Central Pannel Kit, YellowCentral Pannel Kit, Yellow
-
74705002353 Cap. North America, InternationalCap. North America, International
-
75705003264 GrommetGrommet
-
76705004308 RH Inner FenderRH Inner Fender
-
77705004307 LH Inner FenderLH Inner Fender
-
78293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
79705005620 Reflective SheetReflective Sheet
-
80705005617 Reflective SheetReflective Sheet
-
81414479100 ClipClip
-
82293830005 Rubber PlugRubber Plug
-
83705001910 LH Cap, BlackLH Cap, Black
-
84705002420 Neck CapNeck Cap
-
85705002343 Rear CapetRear Capet
-
86705002342 HookHook
-
87250000261 Torx Screw M6 X 16Torx Screw M6 X 16
