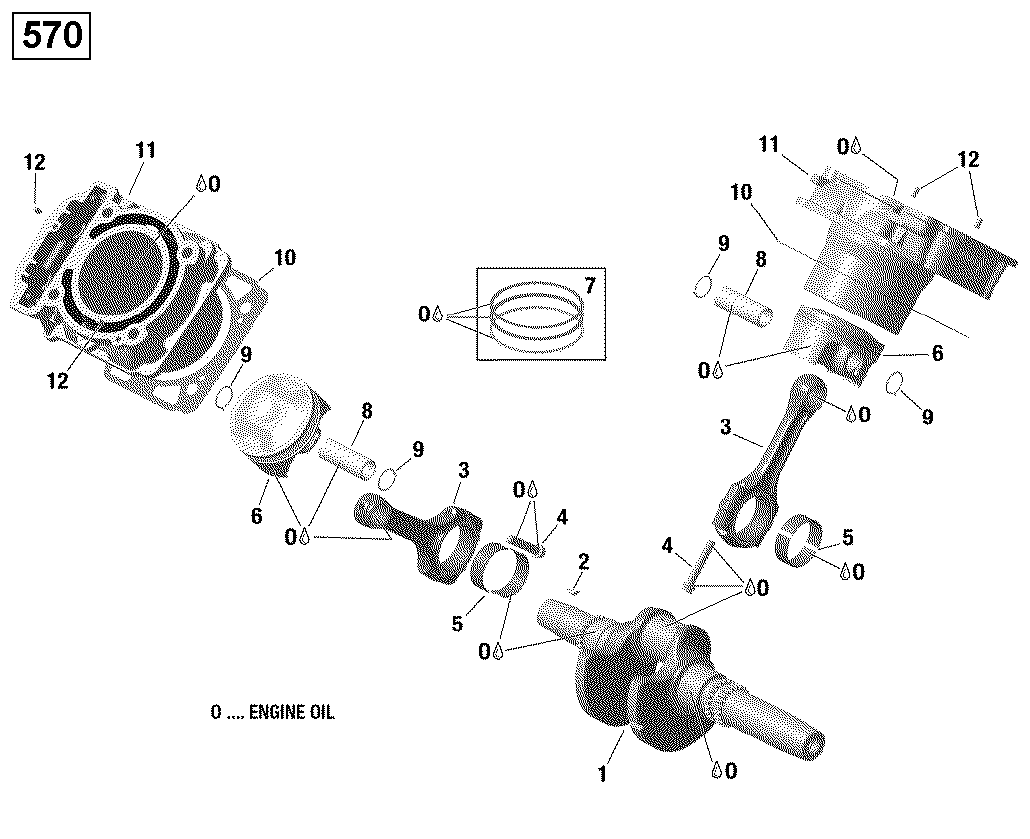

01- Crankshaft and Pistons - 570 EFI для BRP Renegade - 2016
-
№АртикулНазвание
-
1420219835 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3>4420217645 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6>7420685992 Piston Ass'y, 83.958 mmPiston Ass'y, 83.958 mm
-
7420685744 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845107 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420413092 Cylinder With SleeveCylinder With Sleeve
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
