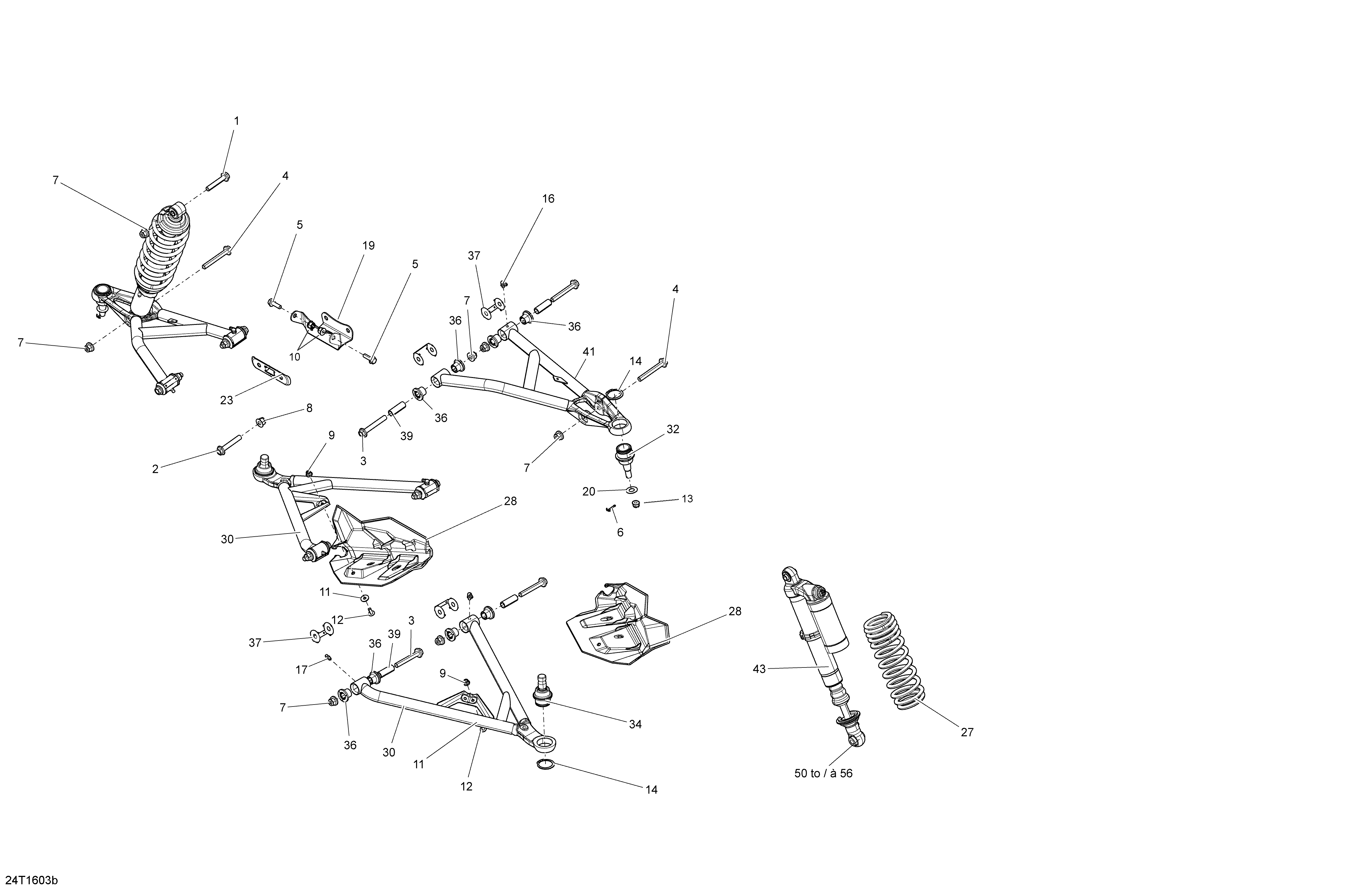

07- Front Suspension - XMR для BRP Renegade - 2016
-
№АртикулНазвание
-
1207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat Washer, StainlessFlat Washer, Stainless
-
12250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
19705203247 Upper Front HolderUpper Front Holder
-
20250200086 Flat WasherFlat Washer
-
23706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
27706202335 Gulfstream Blue Spring. Model BlueGulfstream Blue Spring. Model Blue
-
27706202628 Red Spring. Model RedRed Spring. Model Red
-
28706201829 LH Joint ProtectorLH Joint Protector
-
28706201830 RH Joint ProtectorRH Joint Protector
-
30706201874 Black LH Lower ArmBlack LH Lower Arm
-
30706201875 Black RH Lower ArmBlack RH Lower Arm
-
32706202044 Ball JointBall Joint
-
34706202045 Ball JointBall Joint
-
36706202088 CushionCushion
-
37706202089 Wear PlateWear Plate
-
39703500875 Bushing KitBushing Kit
-
41706201796 Black LH Upper ArmBlack LH Upper Arm
-
41706201797 Black RH Upper ArmBlack RH Upper Arm
-
43706202334 Shock AbsorberShock Absorber
-
50715900209 O-Ring BushingO-Ring Bushing
-
51715900210 Interior BushingInterior Bushing
-
52706201648 BushingBushing
-
53706201585 Bushing SleeveBushing Sleeve
-
54706201586 Bushing SleeveBushing Sleeve
-
55715900251 Spherical BearingSpherical Bearing
-
56715900252 Retaining RingRetaining Ring
