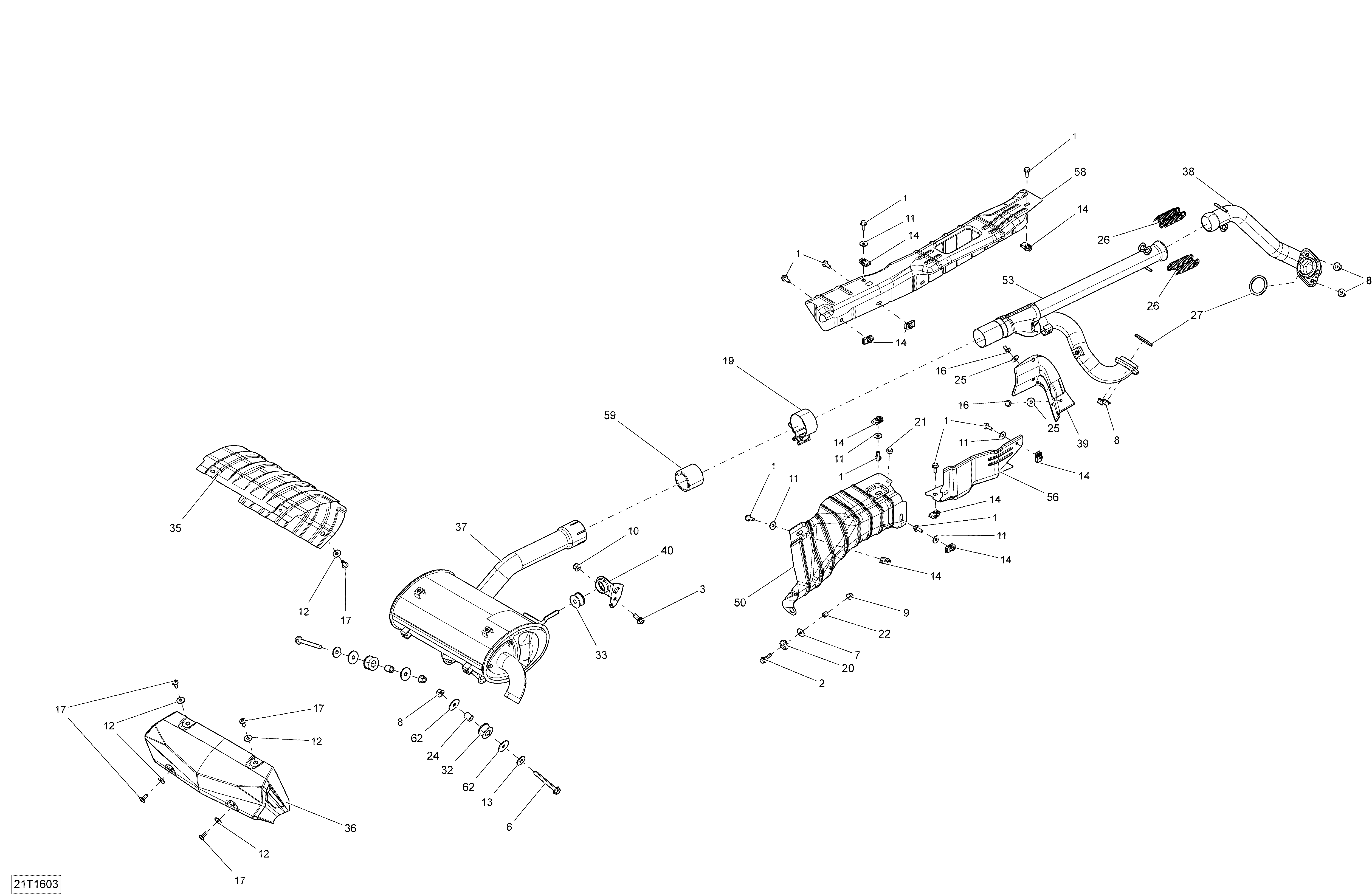

01- Exhaust System для BRP Renegade - 2016
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3207682034 Hex. Flanged ScrewHex. Flanged Screw
-
6207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
7224060201 Flat WasherFlat Washer
-
8233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062410 Flat Washer 6 mmFlat Washer 6 mm
-
12234062670 Flat Washer, StainlessFlat Washer, Stainless
-
13234082410 Flat Washer 8 mmFlat Washer 8 mm
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
17250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
19293650231 Gear ClampGear Clamp
-
20293720053 GrommetGrommet
-
21293830005 Rubber BumperRubber Bumper
-
22293900105 BushingBushing
-
24293900116 Spacer BushingSpacer Bushing
-
25391302000 Flat WasherFlat Washer
-
26415107100 SpringSpring
-
27707600317 GasketGasket
-
32707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
33707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
35707600737 Heat DeflectorHeat Deflector
-
36707600738 Heat DeflectorHeat Deflector
-
37707600748 Muffler. Except Europe ModelMuffler. Except Europe Model
-
37707601632 Muffler. Europe ModelMuffler. Europe Model
-
37a715900089 Spark ArrestorSpark Arrestor
-
37b715900149 GasketGasket
-
37c715900144 Muffler End PieceMuffler End Piece
-
38707600627 Front Head Pipe. Engine 1000RFront Head Pipe. Engine 1000R
-
38707600764 Front Head Pipe. Except Engine 1000RFront Head Pipe. Except Engine 1000R
-
39707600932 Pipe ProtectorPipe Protector
-
40707600933 SupportSupport
-
50707601425 ProtectorProtector
-
53707601446 Rear Head Pipe. Except Engine 1000RRear Head Pipe. Except Engine 1000R
-
53707601455 Rear Head Pipe. Engine 1000RRear Head Pipe. Engine 1000R
-
56707601484 ProtectorProtector
-
58707601486 ProtectorProtector
-
59707601544 Pipe GasketPipe Gasket
-
62250200158 Flat Washer M8Flat Washer M8
