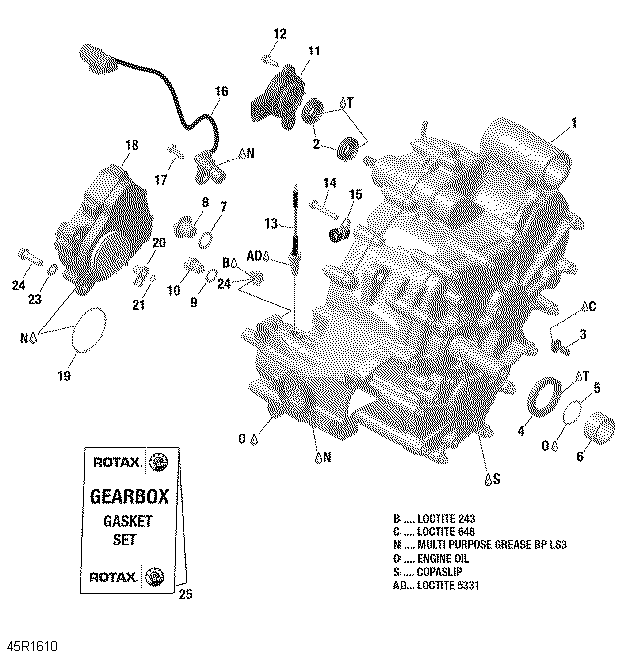

01- Gear Box Assy - Renegade Except XMR для BRP Renegade - 2016
-
№АртикулНазвание
-
1>14420685809 Gear BoxGear Box
-
2420250452 Oil SealOil Seal
-
3420441431 Distance Screw M6Distance Screw M6
-
4420950089 Oil SealOil Seal
-
5420631610 O-RingO-Ring
-
6420647253 Distance RingDistance Ring
-
7420650350 O-RingO-Ring
-
8420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
9420250640 Copper WasherCopper Washer
-
10420241786 Magnetic Drain PlugMagnetic Drain Plug
-
11420266168 Angle Rotation SensorAngle Rotation Sensor
-
12420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13420640192 Position SwitchPosition Switch
-
14420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251691 Cable ClampCable Clamp
-
16420265621 Speed SensorSpeed Sensor
-
17420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
18>21415129174 Actuator Ass'yActuator Ass'y
-
19293300117 O-RingO-Ring
-
20415129175 Shifting ForkShifting Fork
-
21293370042 CirclipCirclip
-
22420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
23420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
24420842619 Hex. Nut M8Hex. Nut M8
-
25420684149 Gasket SetGasket Set
