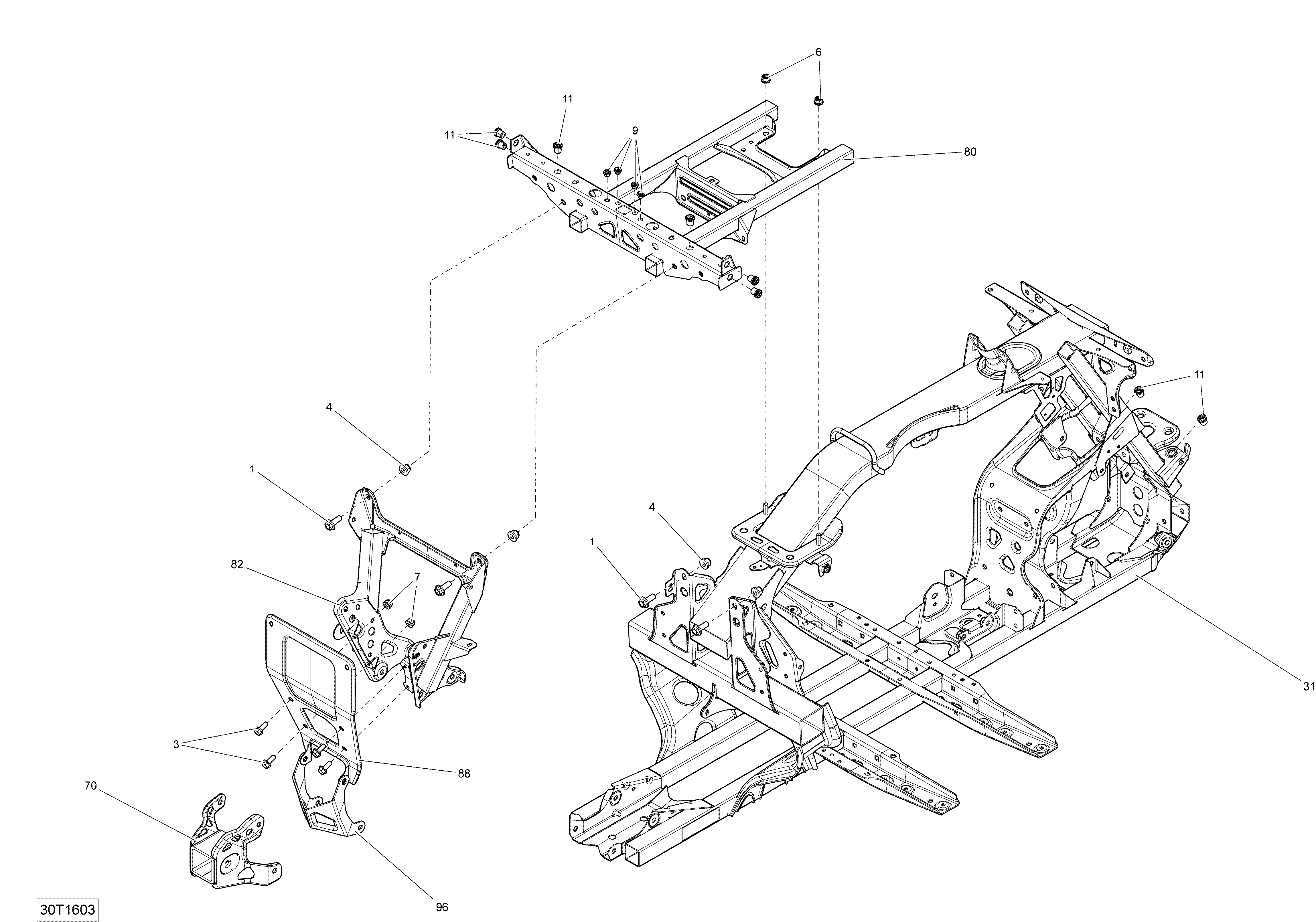

09- Frame для BRP Renegade - 2016
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9293450232 InsertInsert
-
11293450307 InsertInsert
-
31705204116 Black FrameBlack Frame
-
70715002243 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
80705204075 Black Frame ExtensionBlack Frame Extension
-
82705203387 Black Rear SupportBlack Rear Support
-
88705203301 Rear SupportRear Support
-
96705203701 Diffderential ProtectorDiffderential Protector
