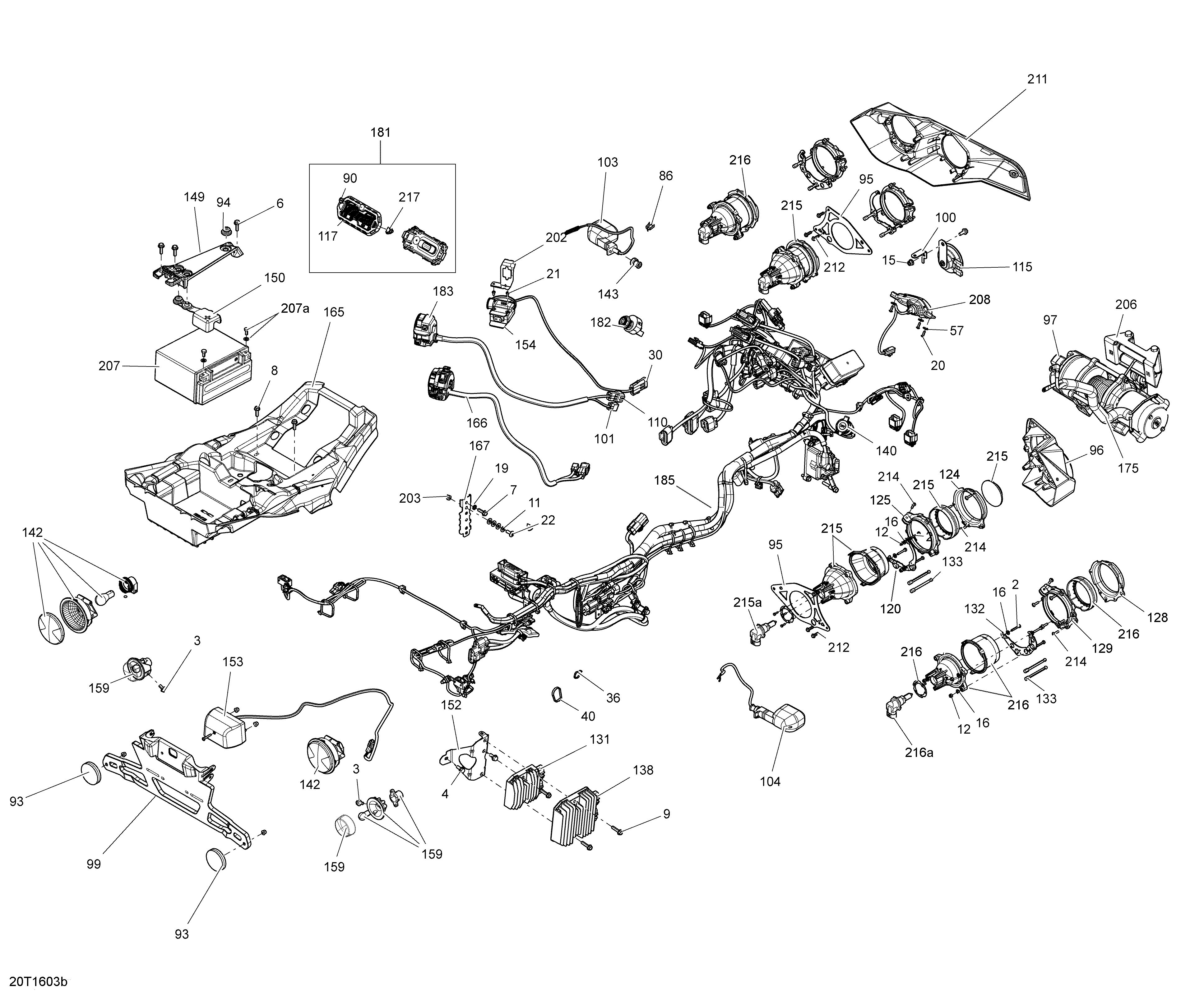

10- Electrical System для BRP Renegade - 2016
-
№АртикулНазвание
-
1205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
2207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
3207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Europe ModelHex. Flanged Screw M6 X 12, Scotch Grip. Europe Model
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
9210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
10210264040 Hex Flanged Screw M6 X 40. Package XMRHex Flanged Screw M6 X 40. Package XMR
-
11224061121 Flat WasherFlat Washer
-
12232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16234051410 Flat Washer M5Flat Washer M5
-
17234161601 Lock Washer Helical M6Lock Washer Helical M6
-
19234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
20241641040 Phillips Screw K40 X 10. Europe ModelPhillips Screw K40 X 10. Europe Model
-
21250000153 Hex. Cap Screw 6-32 X 1/4''. Package XMRHex. Cap Screw 6-32 X 1/4''. Package XMR
-
22250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
23250400021 Clevis Pin. Package XMRClevis Pin. Package XMR
-
24250400022 Cotter Pin. Package XMRCotter Pin. Package XMR
-
25270000141 ClipClip
-
26278000216 Wire Seal. Except Package XMRWire Seal. Except Package XMR
-
30278000281 Female Terminal Housing, 3 Circuits. Except Package XMRFemale Terminal Housing, 3 Circuits. Except Package XMR
-
36293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38293750002 Tie-Rap 142 mm. Europe ModelTie-Rap 142 mm. Europe Model
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
51293750009 Tie-Rap 173 mm. Package XMRTie-Rap 173 mm. Package XMR
-
52293750041 Tie-rap 627 mm. North America ModelTie-rap 627 mm. North America Model
-
53293830005 Rubber BumperRubber Bumper
-
54293900078 Sleeve. Package XMRSleeve. Package XMR
-
55390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
56391301600 WasherWasher
-
57250200081 Flat Washer. Europe ModelFlat Washer. Europe Model
-
61414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
86414227300 ClipClip
-
87503175800 Washer. Europe ModelWasher. Europe Model
-
89517203200 Spacer. Engine 570 Europe ModelSpacer. Engine 570 Europe Model
-
89517203200 Spacer. Engine 850 Europe ModelSpacer. Engine 850 Europe Model
-
90704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
91704901835 DPS Label. Package XXC Europe ModelDPS Label. Package XXC Europe Model
-
92705002329 Hook. Package XMRHook. Package XMR
-
93705002408 Red Reflector. Europe ModelRed Reflector. Europe Model
-
94705003666 Rubber GrommetRubber Grommet
-
95705004309 Painted Headlamp SupportPainted Headlamp Support
-
96705004509 RH Front FaciaRH Front Facia
-
97705008546 Winch. Package XMRWinch. Package XMR
-
99708300553 Plate Support. Europe ModelPlate Support. Europe Model
-
100709200284 Support. Europe ModelSupport. Europe Model
-
103710000546 Flasher. Europe ModelFlasher. Europe Model
-
103a710000662 Flasher Bulb. Europe ModelFlasher Bulb. Europe Model
-
104710000547 Flasher. Europe ModelFlasher. Europe Model
-
104a710000662 Flasher Bulb. Europe ModelFlasher Bulb. Europe Model
-
109710000817 Black-Electronic Key. Except Europe ModelBlack-Electronic Key. Except Europe Model
-
109710000817 Black-Electronic Key. Europe ModelBlack-Electronic Key. Europe Model
-
114710000917 Connector Ass'y. Except Package XMRConnector Ass'y. Except Package XMR
-
115710000983 Horn. Europe ModelHorn. Europe Model
-
116710000992 ClipClip
-
117710001183 Trim Ring Ass'yTrim Ring Ass'y
-
118710001000 Winch Solenoid. Package XMRWinch Solenoid. Package XMR
-
120710001037 LH Low Light SupportLH Low Light Support
-
120710001094 RH Low Light SupportRH Low Light Support
-
124710001083 LH Low Front HousingLH Low Front Housing
-
124710001081 RH Low Front HousingRH Low Front Housing
-
125710001084 LH Low Rear HousingLH Low Rear Housing
-
125710001082 RH Low Rear HousingRH Low Rear Housing
-
128710001087 LH High Front HousingLH High Front Housing
-
128710001085 RH High Front HousingRH High Front Housing
-
129710001088 LH High Rear HousingLH High Rear Housing
-
129710001086 RH High Rear HousingRH High Rear Housing
-
131710001103 Voltage Regulator. Package STD Except Europe ModelVoltage Regulator. Package STD Except Europe Model
-
131710001191 Voltage RegulatorVoltage Regulator
-
132710001036 LH High Light SupportLH High Light Support
-
132710001115 RH High Light SupportRH High Light Support
-
133710001147 Setting ScrewSetting Screw
-
140710001248 Outlet DCOutlet DC
-
141710001364 Starter RelayStarter Relay
-
142710001645 Tail LightTail Light
-
142a520000758 BulbBulb
-
143710001826 Cap Guard. Europe ModelCap Guard. Europe Model
-
146710002183 Grey-Electronic Key. Except Europe ModelGrey-Electronic Key. Except Europe Model
-
149710002404 Fixation PlateFixation Plate
-
150710002569 CapCap
-
152710002587 Rectifier SupportRectifier Support
-
153710002721 Licence Light. Europe ModelLicence Light. Europe Model
-
154710002724 Winch Interrupter. Package XMRWinch Interrupter. Package XMR
-
155710002896 Tie-Rap Clip. Except Package STDTie-Rap Clip. Except Package STD
-
159710002964 Flasher. Europe ModelFlasher. Europe Model
-
161710003006 HousingHousing
-
162710003239 Flasher Unit. Europe ModelFlasher Unit. Europe Model
-
163710003260 Protective Tubing. Package XMRProtective Tubing. Package XMR
-
165710003990 Battery TrayBattery Tray
-
166710004040 Multi-Function Handle. Europe ModelMulti-Function Handle. Europe Model
-
167710004118 Connector BracketConnector Bracket
-
168710004324 Brake HarnessBrake Harness
-
169710004375 Connector Ass'y. Package XMRConnector Ass'y. Package XMR
-
171710004376 Positive Cable. Except Package XMRPositive Cable. Except Package XMR
-
173710004377 Positive CablePositive Cable
-
175710004378 Winch Cables. Package XMRWinch Cables. Package XMR
-
176710004379 Negative Harness. Package XMRNegative Harness. Package XMR
-
177710004382 Ground CableGround Cable
-
181710005024 Multifunction SpeedometerMultifunction Speedometer
-
182710003847 Ignition Switch. Except Europe ModelIgnition Switch. Except Europe Model
-
182710004570 Ignition Switch. Europe ModelIgnition Switch. Europe Model
-
183710004618 Multi-Function Handle. Package STD Except Europe ModelMulti-Function Handle. Package STD Except Europe Model
-
183710004617 Multi-Function Handle. Package XXC Except Europe ModelMulti-Function Handle. Package XXC Except Europe Model
-
183710004617 Multi-Function Handle. Package XMRMulti-Function Handle. Package XMR
-
185710004619 Main Harness Ass'yMain Harness Ass'y
-
185710004680 Main Harness Ass'y. Europe ModelMain Harness Ass'y. Europe Model
-
202710004670 Black Support. Package XMRBlack Support. Package XMR
-
203232361493 Domed Nut M6Domed Nut M6
-
206715000011 Winch Roller. Package XMRWinch Roller. Package XMR
-
207410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
207a250000282 Battery Bolt KitBattery Bolt Kit
-
208710001042 Day Light. Europe ModelDay Light. Europe Model
-
208a520000758 BulbBulb
-
211705004508 LH Front FaciaLH Front Facia
-
212241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
213710004326 Light HarnessLight Harness
-
214250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
215710002524 Low Beam Ass'yLow Beam Ass'y
-
215a415129249 Halogen BulbHalogen Bulb
-
216710002525 High Beam Ass'yHigh Beam Ass'y
-
216a415129249 Halogen BulbHalogen Bulb
-
217715900265 ButtonButton
-
117250000746 Torx Truss Screw M8 X 16. Package XMRTorx Truss Screw M8 X 16. Package XMR
