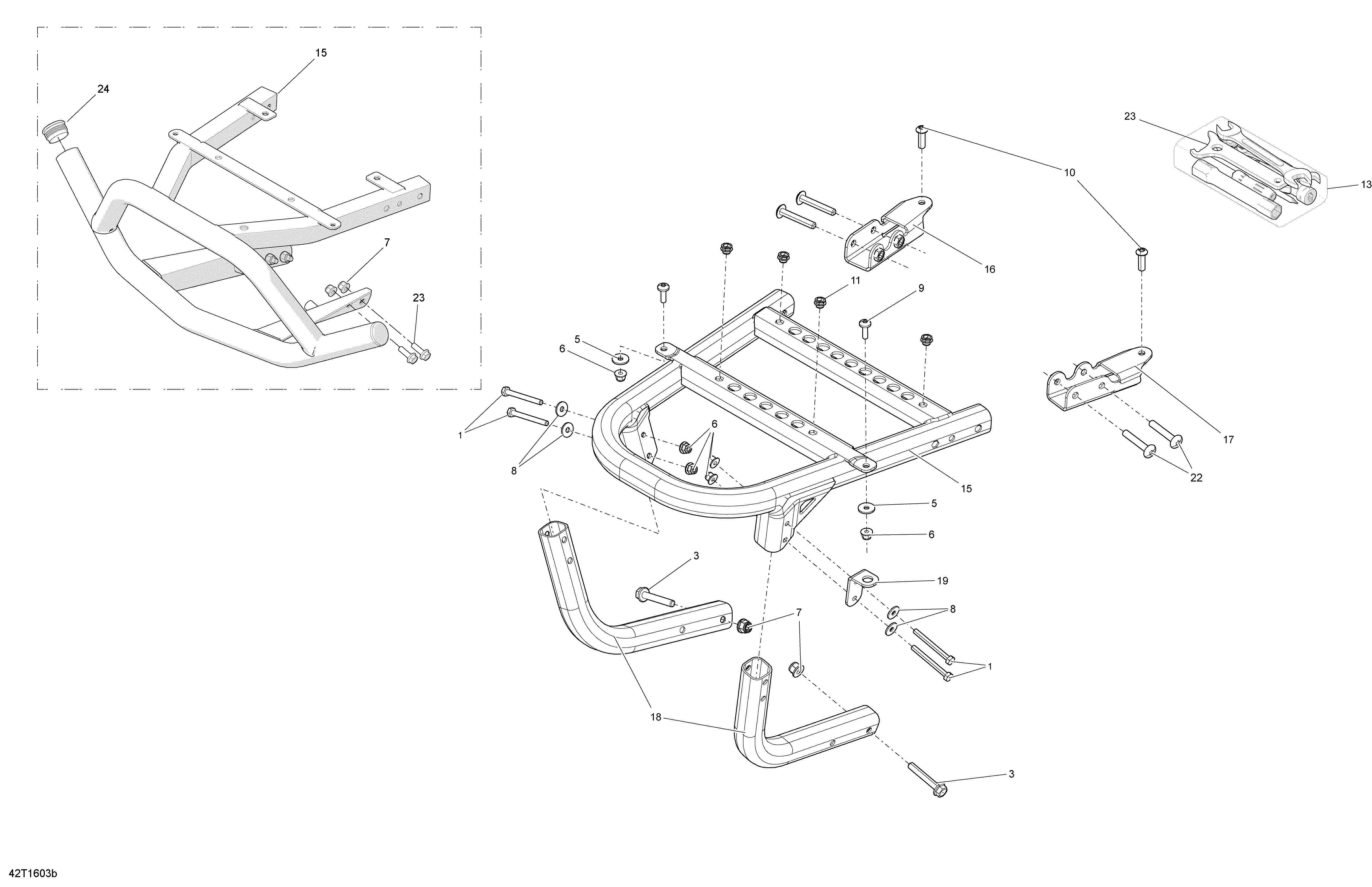

09- Rear Cargo Box для BRP Renegade - 2016
-
№АртикулНазвание
-
1207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
3207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
5224061201 Flat WasherFlat Washer
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062410 Flat Washer 6 mmFlat Washer 6 mm
-
9250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
10250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
11293450274 InsertInsert
-
13704700162 Tool KitTool Kit
-
15715001894 Kit Rear Bumper. Package STD, XXCKit Rear Bumper. Package STD, XXC
-
15705009740 Blue Rear Bumper. Package XMR BlueBlue Rear Bumper. Package XMR Blue
-
15705010641 Red Rear Bumper. Package XMR RedRed Rear Bumper. Package XMR Red
-
16705004977 LH Front BracketLH Front Bracket
-
17705004978 RH Front BracketRH Front Bracket
-
18705004981 Rear TubeRear Tube
-
19705005837 Flag Support. Except Europe ModelFlag Support. Except Europe Model
-
22250000844 Torx Screw M8 X 50 S.GRIPTorx Screw M8 X 50 S.GRIP
-
23207682544 Hex. Flanged Screw M8 X 25. Package XMRHex. Flanged Screw M8 X 25. Package XMR
-
24705202455 Cap. Package XMRCap. Package XMR
