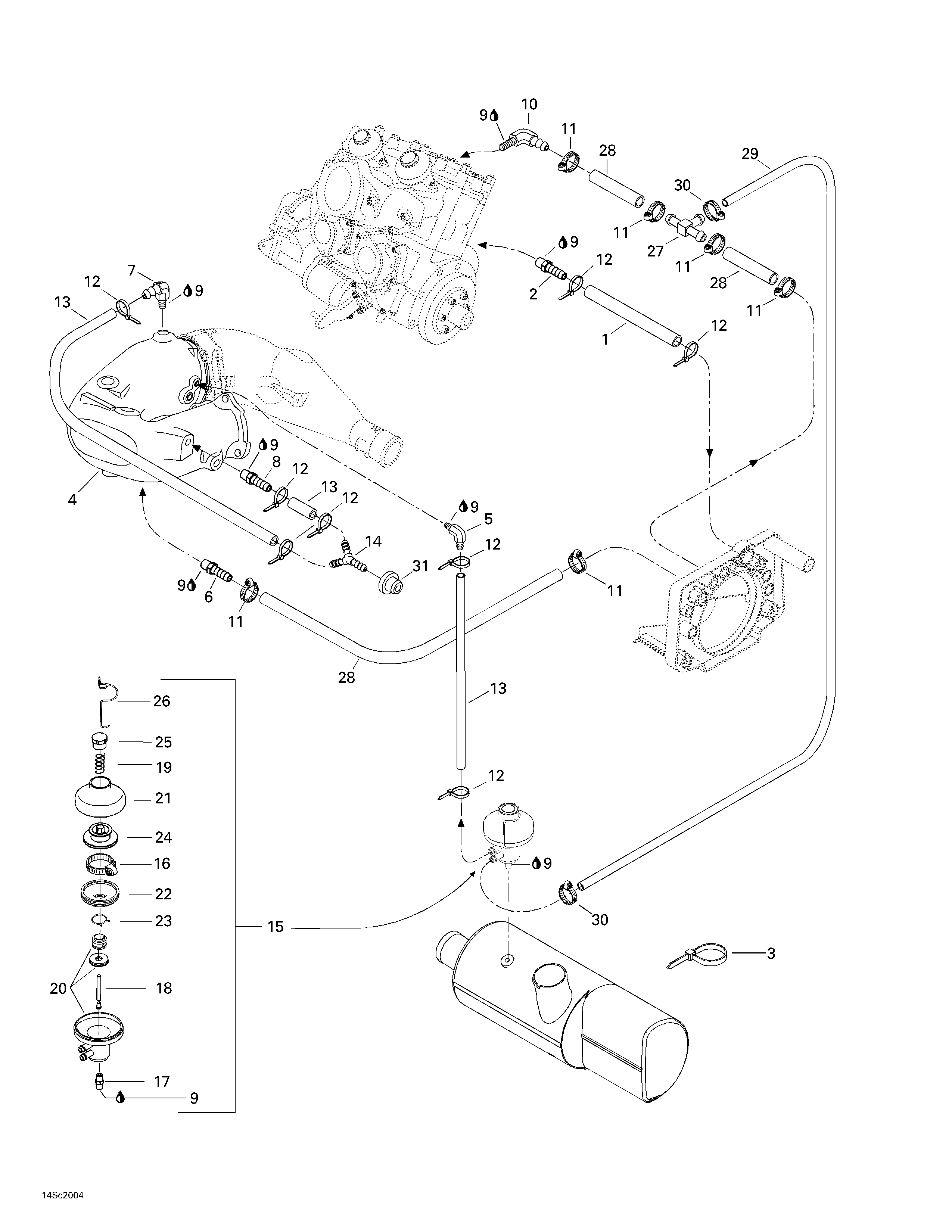

01- Cooling System для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
2293710066 Male ConnectorMale Connector
-
3414115200 Tie Rap 180 mmTie Rap 180 mm
-
4274000818 Head Pipe Ass'y. Includes 4 - 8.Head Pipe Ass'y. Includes 4 - 8.
-
5293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
6293710021 Male ConnectorMale Connector
-
7293710048 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
8293710037 Male ConnectorMale Connector
-
9293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
10293700023 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
11293650037 Tridon ClampTridon Clamp
-
12293750001 Tie Rap 94 mmTie Rap 94 mm
-
13276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
14293710059 > Fitting> Fitting
-
15274000832 Pressure Regulator Ass'y. Includes 15 - 26.Pressure Regulator Ass'y. Includes 15 - 26.
-
16293650065 ClampClamp
-
17293700010 Male FittingMale Fitting
-
18274000423 Feeding RodFeeding Rod
-
19274000382 SpringSpring
-
21420911551 Valve CoverValve Cover
-
22420260721 BellowsBellows
-
23420838190 ClampClamp
-
25420241221 Adjustment ScrewAdjustment Screw
-
26290838083 Spring ClampSpring Clamp
-
27293710025 T FittingT Fitting
-
28276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
29275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
30293650038 Tridon ClampTridon Clamp
-
31293720029 GrommetGrommet
