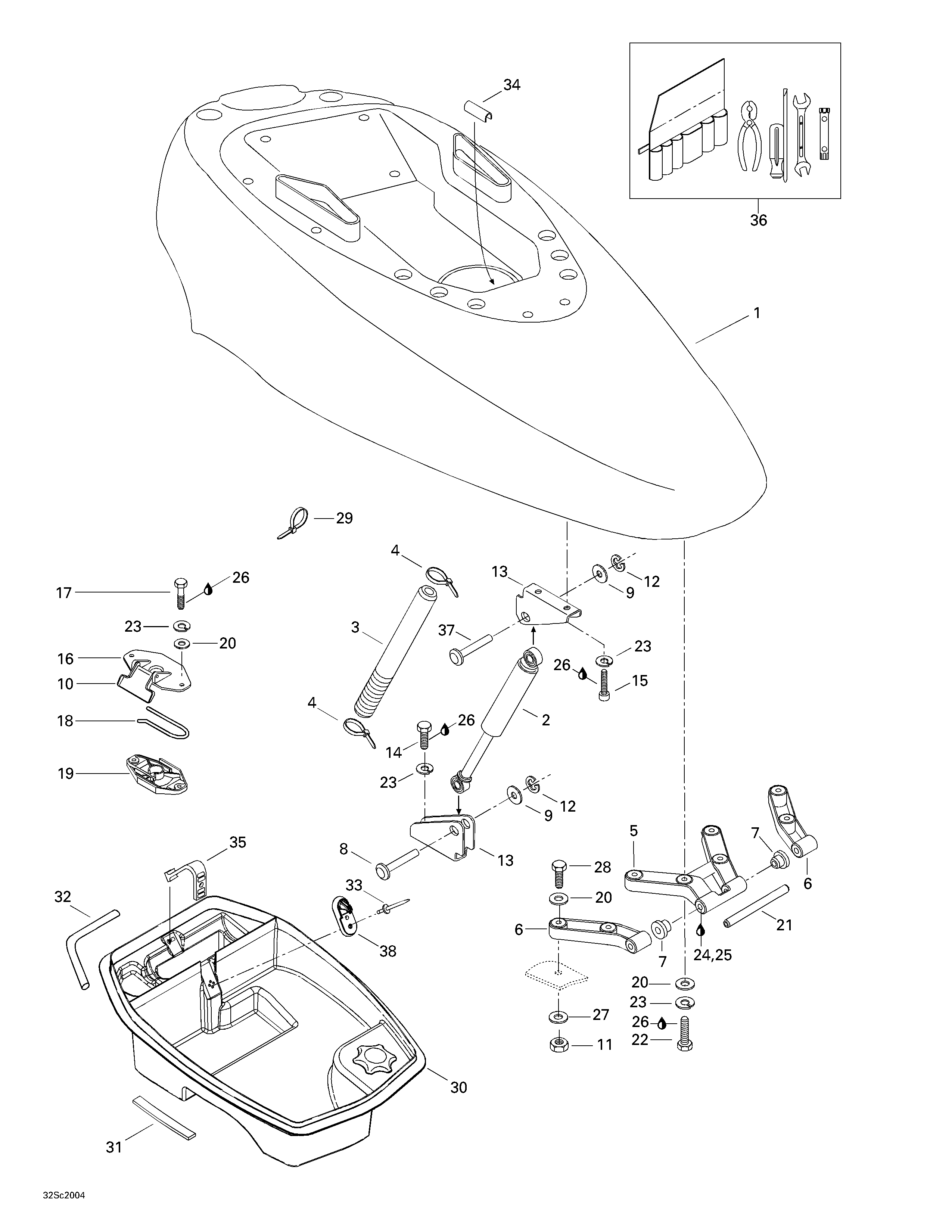

09- Engine Cover для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1269700065 Engine CoverEngine Cover
-
2269500363 Shock Ass'y. Includes 2 - 4.Shock Ass'y. Includes 2 - 4.
-
3291001022 BellowsBellows
-
4293750001 Tie Rap 94 mmTie Rap 94 mm
-
5269700043 Hinge (Cover)Hinge (Cover)
-
6269700022111 RH Hinge (Body)RH Hinge (Body)
-
269700023111 LH Hinge (Body)LH Hinge (Body)
-
7293350016 CushionCushion
-
8211400006 Short PinShort Pin
-
9234081600 Washer 8 mmWasher 8 mm
-
10269000016 Latch LeverLatch Lever
-
11232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
12293370008 CirclipCirclip
-
13291001013 Shock SupportShock Support
-
14207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
15205061660 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
16269700020 Latch CoverLatch Cover
-
17207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
18269700017 SpringSpring
-
19269000015 Latch BaseLatch Base
-
20234061600 Washer 6 mmWasher 6 mm
-
21269700024 AxleAxle
-
22207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
23234161601 Lock Washer 6 mmLock Washer 6 mm
-
24293800054 Loctite 648, 50 mlLoctite 648, 50 ml
-
25293800041 Loctite-Primer NLoctite-Primer N
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27234062600 Washer 6 mmWasher 6 mm
-
28207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
29414115200 Tie RapTie Rap
-
30269500847 Front Tray. Includes 30 - 32.Front Tray. Includes 30 - 32.
-
31293250087 GasketGasket
-
32293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
33293150027 Advel RivetAdvel Rivet
-
34271000110 MouldingMoulding
-
35269500408 StrapStrap
-
36295000168 Tool KitTool Kit
-
37211400019 PinPin
-
38269500521 HookHook
