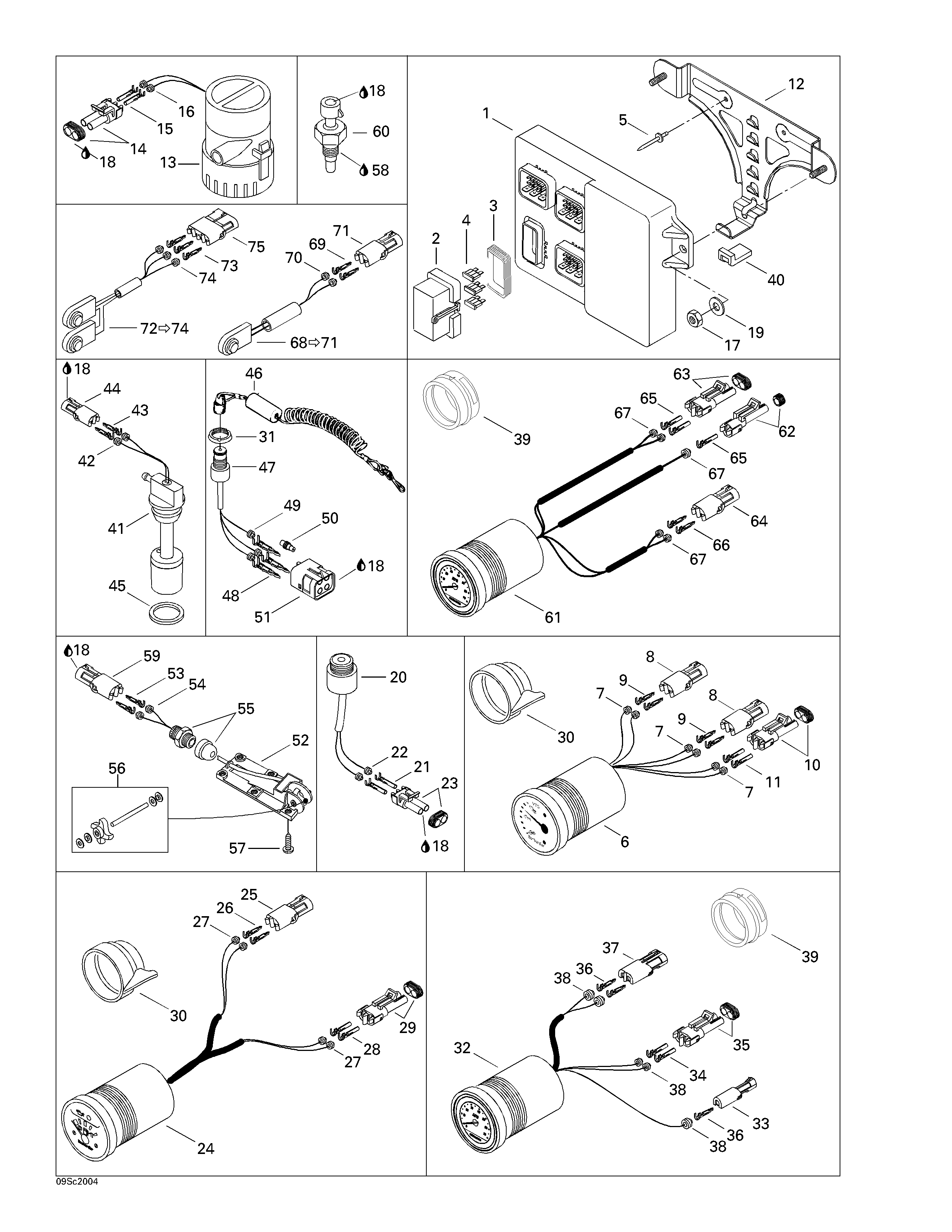

10- Electronic Module And Electrical Accessories для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1278001526 Electronic Module. Includes 1 - 4.Electronic Module. Includes 1 - 4.
-
2278001069 Fuse HolderFuse Holder
-
3278001070 SealSeal
-
4278000343 Fuse 15 AmpFuse 15 Amp
-
278000704 Fuse 7.5 AmpFuse 7.5 Amp
-
278000344 Fuse 5 AmpFuse 5 Amp
-
5293150039 Pop Rivet 3/16Pop Rivet 3/16
-
6278001339 VTS Gauge. Includes 6 - 11.VTS Gauge. Includes 6 - 11.
-
7278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
8278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
9278000222 Male terminal (18 Gauge)Male terminal (18 Gauge)
-
10278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
11278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
12291001194 Module Support Ass'yModule Support Ass'y
-
13278001176 Bilge Pump. Includes 13 - 16.Bilge Pump. Includes 13 - 16.
-
14278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
15278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
16278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
19234062600 Flat Washer 6 mmFlat Washer 6 mm
-
20278001565 Buzzer Ass'y. Includes 20 - 23.Buzzer Ass'y. Includes 20 - 23.
-
21278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
22278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
23278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
24278001389 Fuel/Oil Gauge. Includes 24 - 29.Fuel/Oil Gauge. Includes 24 - 29.
-
25278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
26278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
27278000218 Wire Seal (16-18 gauge)Wire Seal (16-18 gauge)
-
28278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
29278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
30293720005 Gauge SupportGauge Support
-
31278000508 Safety Switch NutSafety Switch Nut
-
32278001340 Speedometer. Includes 32 - 38.Speedometer. Includes 32 - 38.
-
33278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
34278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
35278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
36278000222 Male terminal (18 Gauge)Male terminal (18 Gauge)
-
37278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
38278001065 Wire Seal (20 Gauge)Wire Seal (20 Gauge)
-
39293720047 Gauge SupportGauge Support
-
40278001166 Module ProtectorModule Protector
-
41278001402 Oil Level Sensor Ass'y. Includes 41 - 45.Oil Level Sensor Ass'y. Includes 41 - 45.
-
42278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
43278000222 Male terminal (18 Gauge)Male terminal (18 Gauge)
-
44278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
45293720008 GrommetGrommet
-
46278001543 Safety Landyard Ass'ySafety Landyard Ass'y
-
47278000977 Safety Switch. Includes 47 - 51.Safety Switch. Includes 47 - 51.
-
48278000222 Male terminal (18 Gauge)Male terminal (18 Gauge)
-
49278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
50278000216 Wire Seal (Cap)Wire Seal (Cap)
-
51278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
52278000970 Speed Sensor. Includes 52 - 56.Speed Sensor. Includes 52 - 56.
-
55293710031 Electrical ConnectorElectrical Connector
-
56295500108 Paddle Wheel KitPaddle Wheel Kit
-
57250000021 Screw M5 x 16 (Scotch Grip)Screw M5 x 16 (Scotch Grip)
-
58293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
59278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
60278001016 Temperature SensorTemperature Sensor
-
61278001381 Tachometer. Includes 61 - 67.Tachometer. Includes 61 - 67.
-
62278000219 Male Housing (1 Circuit)Male Housing (1 Circuit)
-
63278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
64278000217 Female Housing (2 circuits)Female Housing (2 circuits)
-
65278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
66278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
67278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
68278001358 Switch Ass'y. Includes 68 - 71.Switch Ass'y. Includes 68 - 71.
-
69278000222 Male TerminalMale Terminal
-
70278000218 Wire SealWire Seal
-
71278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
72278001533 Switch VTS. Includes 72 - 74.Switch VTS. Includes 72 - 74.
-
73278000222 Male TerminalMale Terminal
-
74278000218 Wire SealWire Seal
-
75278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
