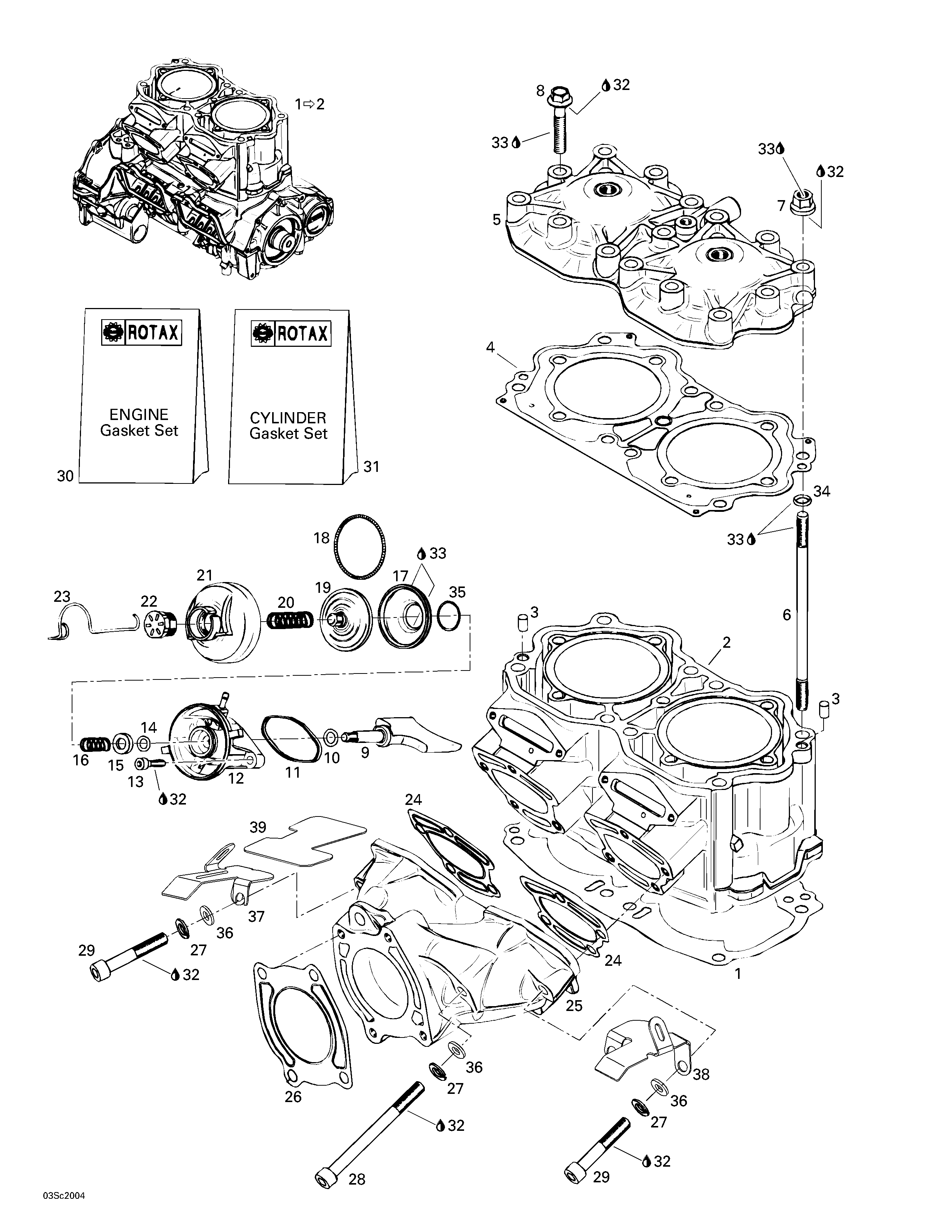

01- Cylinder, Exhaust Manifold для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1290094702 Short Block Ass'y. Includes 1 - 2.Short Block Ass'y. Includes 1 - 2.
-
1290931902 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
290931901 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931900 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
2290923569 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290632010 Pin 8 x 12Pin 8 x 12
-
4290931702 Cylinder Head GasketCylinder Head Gasket
-
5290923921 Head Cylinder (Silver)Head Cylinder (Silver)
-
6290640232 Stud M10 x 200Stud M10 x 200
-
7290842863 Stud Nut M10Stud Nut M10
-
8290841708 Screw Hex. Flange M10 x 60Screw Hex. Flange M10 x 60
-
9290854410 Piston ExhaustPiston Exhaust
-
10290931765 O-RingO-Ring
-
11290931670 Rubber GasketRubber Gasket
-
12290854435 Valve HousingValve Housing
-
13205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
14290931765 O-RingO-Ring
-
15290926220 Support RingSupport Ring
-
16290838260 SpringSpring
-
17290260723 BellowsBellows
-
18290239048 Hose SpringHose Spring
-
19290854445 Exhaust ValveExhaust Valve
-
20290939137 Spring CompressionSpring Compression
-
21290911555 Cover ValveCover Valve
-
22420241221 Screw AdjustmentScrew Adjustment
-
23420838082 Clip SpringClip Spring
-
24290931653 GasketGasket
-
25290979604 Exhaust Manifold (Silver)Exhaust Manifold (Silver)
-
26290931488 GasketGasket
-
27234101601 Lock Washer 10 mmLock Washer 10 mm
-
28290941483 Socket Head Screw M10 x 110Socket Head Screw M10 x 110
-
29205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
30290888131 Engine Gasket SetEngine Gasket Set
-
31290888136 Cylinder Gasket SetCylinder Gasket Set
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34290850460 O-RingO-Ring
-
35420838253 Clamp SpringClamp Spring
-
36234000600 Flat Washer 10 mmFlat Washer 10 mm
-
37273000170 Duct SupportDuct Support
-
38273000169 Duct SupportDuct Support
-
39273000165 Protector PadProtector Pad
