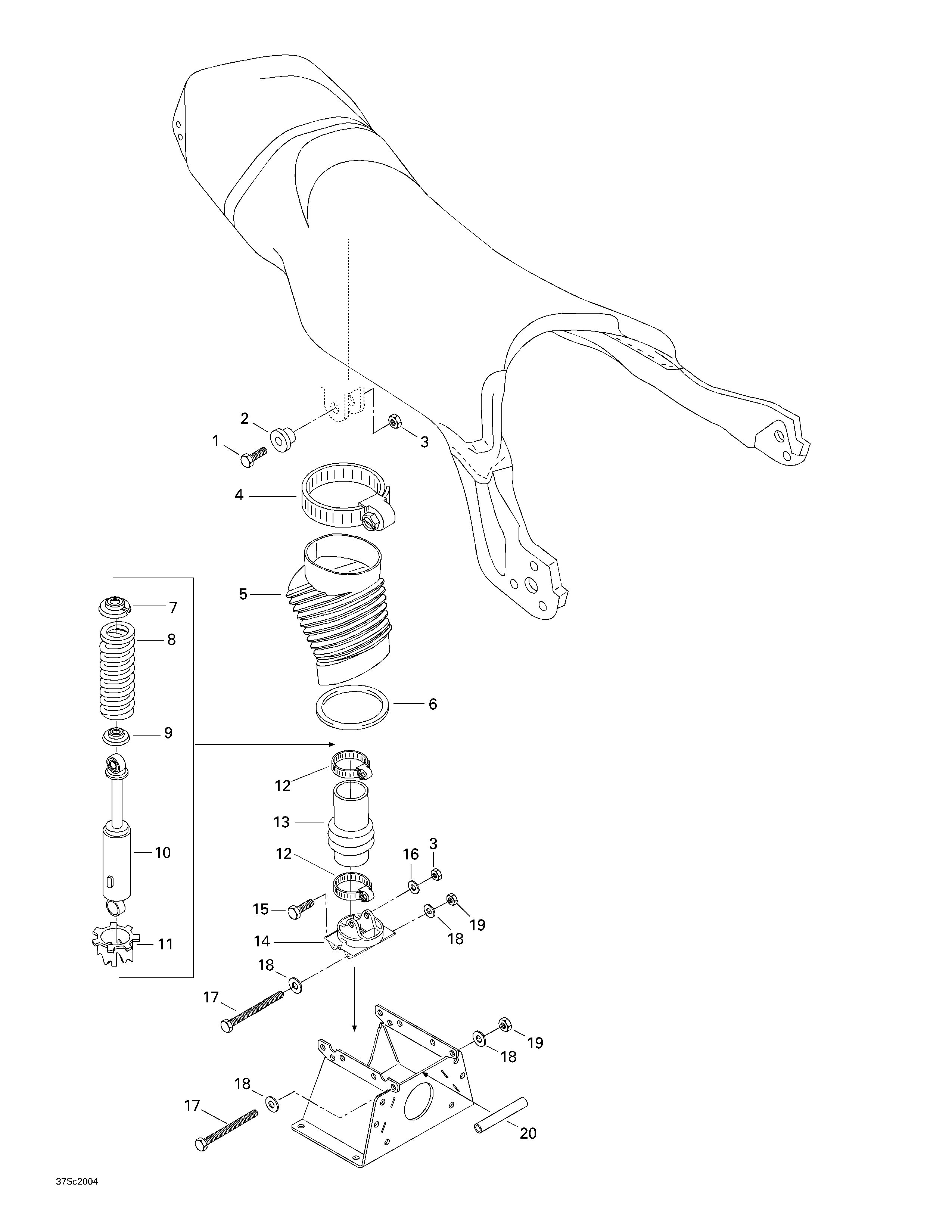

09- Seat Suspension для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1207007060 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
2269000427 Spacer 12 mmSpacer 12 mm
-
3232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
4293650054 Clamp TridonClamp Tridon
-
5291001470 Outer BellowOuter Bellow
-
6293000012 Retaining RingRetaining Ring
-
7503140600 Stopper SpringStopper Spring
-
8291001245 SpringSpring
-
9503165100 Spring GuideSpring Guide
-
10291001244 ShockShock
-
11291001088 Ring AdjusterRing Adjuster
-
12293650006 Tridon ClampTridon Clamp
-
13291001247 Shock BellowShock Bellow
-
14291001201 Lower Shock Support (Black)Lower Shock Support (Black)
-
15207006060 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
16234001600 Washer 10 mmWasher 10 mm
-
17230062060 Hex. Screw M6 x 120Hex. Screw M6 x 120
-
18234062600 Washer 6 mmWasher 6 mm
-
19232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
20291000757 SpacerSpacer
