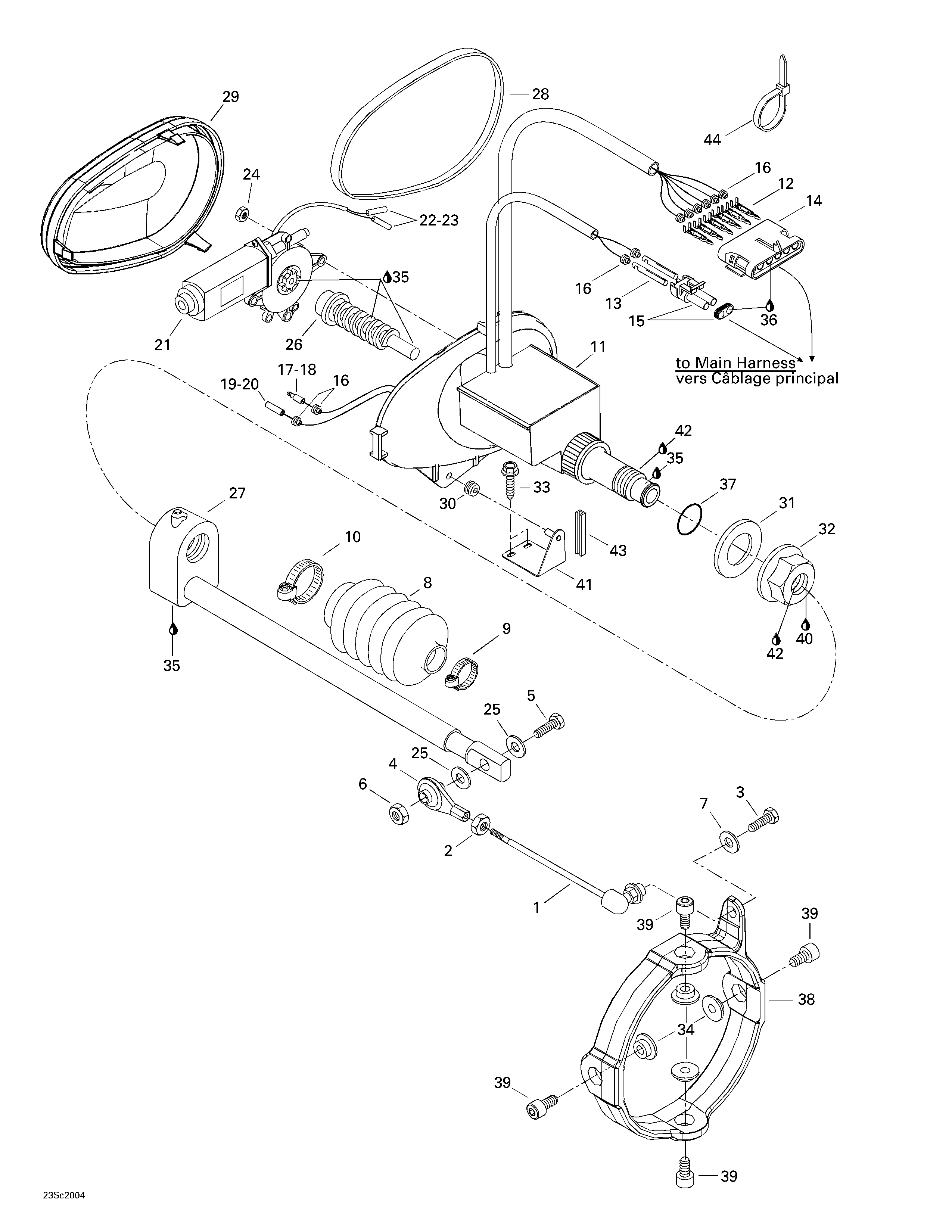

05- Trim для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1271001134 Moulding RodMoulding Rod
-
2250100015 NutNut
-
3243041660 Screw M4.8 x 16Screw M4.8 x 16
-
4277000918 Ball JointBall Joint
-
5207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7234052600 Flat Washer 5 mmFlat Washer 5 mm
-
8271000459 Protector HoseProtector Hose
-
9293650082 ClampClamp
-
10293650083 ClampClamp
-
11278001524 V.T.S Box Ass'y. Includes 11 - 20.V.T.S Box Ass'y. Includes 11 - 20.
-
12278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
13278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
14278000156 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
15278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
16278000218 Wire Seal (16-18 Gauge)Wire Seal (16-18 Gauge)
-
17278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
18278001008 Insulation SleeveInsulation Sleeve
-
19278001009 Female Terminal (14 - 18 Gauge)Female Terminal (14 - 18 Gauge)
-
20278001007 Insulation SleeveInsulation Sleeve
-
21278001292 VTS Motor Ass'y. Includes 21 - 23.VTS Motor Ass'y. Includes 21 - 23.
-
22278000231 Insulating Sheet (Male Terminal)Insulating Sheet (Male Terminal)
-
23278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
24232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
25234061600 Washer 6 mmWasher 6 mm
-
26278000428 Worm ScrewWorm Screw
-
27278000883 Sliding BlockSliding Block
-
28293200027 GasketGasket
-
29278000595 V.T.S CoverV.T.S Cover
-
30293720015 GrommetGrommet
-
31293830027 Washer SealWasher Seal
-
32211100020 Special Nut M27Special Nut M27
-
33243041660 Hex. Plastic Screw M4.8 x 16Hex. Plastic Screw M4.8 x 16
-
34293900007 Venturi BushingVenturi Bushing
-
35293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37293300044 O-RingO-Ring
-
38271001009 Trimming RingTrimming Ring
-
39211000127 SocketHeadScrewM8x10(ScotchGrip)SocketHeadScrewM8x10(ScotchGrip)
-
40293800060 Loctite 243, 10mlLoctite 243, 10ml
-
41292000250 VTS Support Ass'yVTS Support Ass'y
-
42293800041 Loctite - Primer NLoctite - Primer N
-
43271000110 Protection TrimProtection Trim
-
44293750008 Tie Rap 350 mmTie Rap 350 mm
