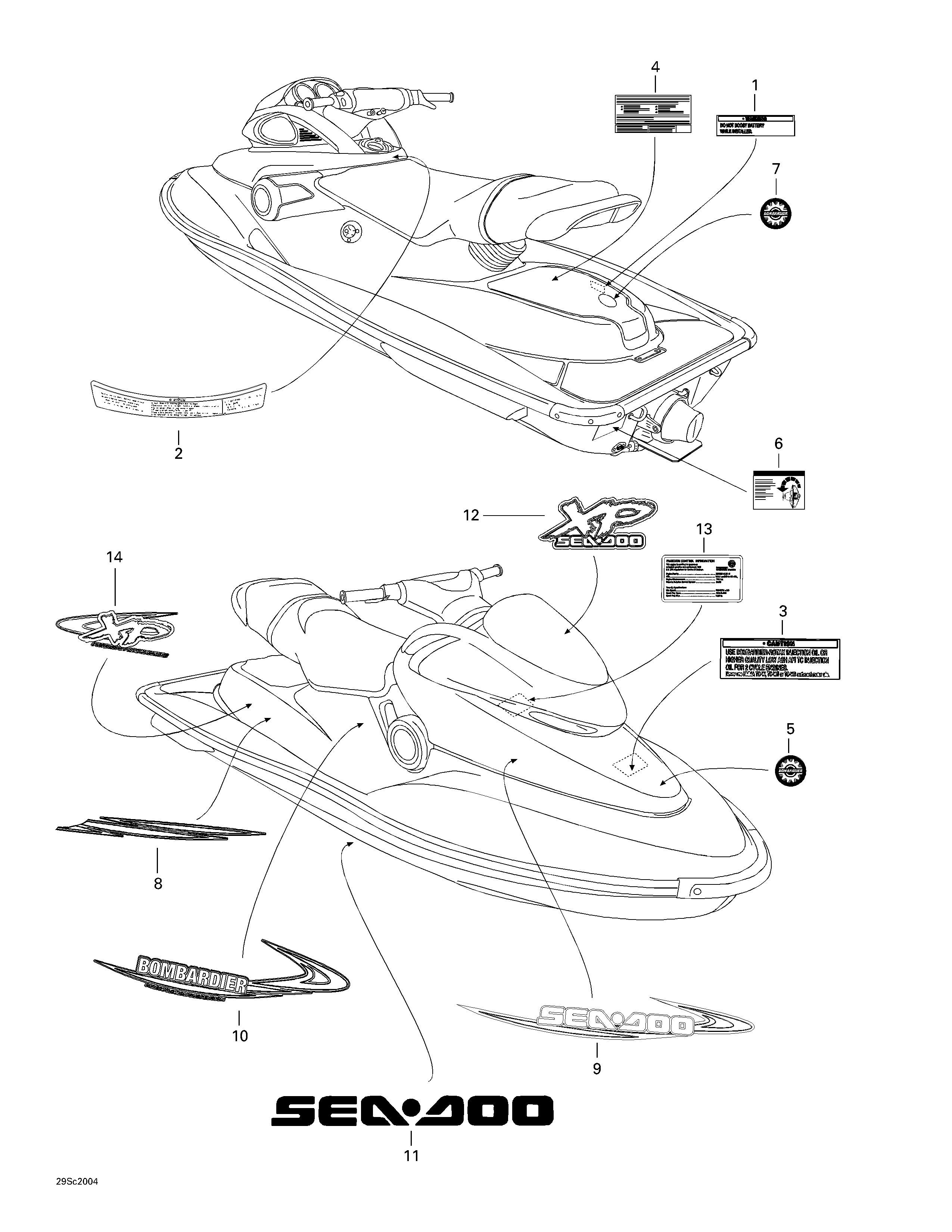

09- Decals для BRP XP, 5651/5655 - 2000
-
№АртикулНазвание
-
1219900965 Warning Label (Battery)Warning Label (Battery)
-
2219901578 Warning LabelWarning Label
-
3219901601 Warning Decal (Injection Oil)Warning Decal (Injection Oil)
-
4219900656 > Decal> Decal
-
5516000282 > Plastic Logo> Plastic Logo
-
6219900934 > Decal> Decal
-
7219901561 > Logo Decal> Logo Decal
-
8219901556 R.H. Side Rear DecalR.H. Side Rear Decal
-
219901555 LH Side Rear DecalLH Side Rear Decal
-
9219901552 R.H. Side Front DecalR.H. Side Front Decal
-
219901551 LH Side Front DecalLH Side Front Decal
-
10219901554 Center Decal R.HCenter Decal R.H
-
219901553 Center Decal L.HCenter Decal L.H
-
11219901560 > Hull Decal> Hull Decal
-
12219901559 > Idendification Decal> Idendification Decal
-
13219901521 E.P.A. LabelE.P.A. Label
-
14219901558 R.H. Side Rear LogoR.H. Side Rear Logo
-
219901557 LH Side Rear LogoLH Side Rear Logo
