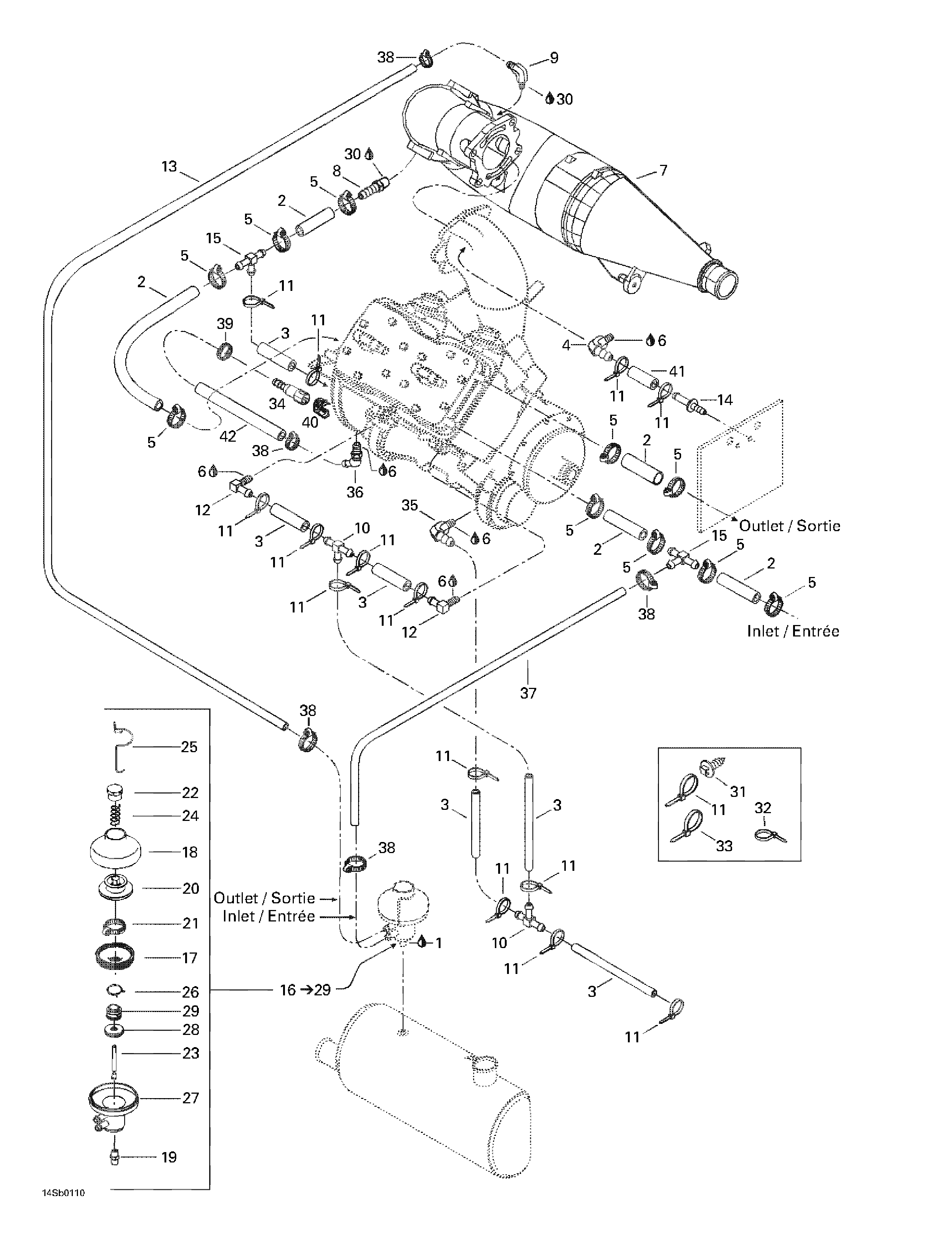

01- Cooling System для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1293800018 Loctite 592, 50 mlLoctite 592, 50 ml
-
2276000001 Hose 12.5 mmHose 12.5 mm
-
3275000007 Hose 8 mmHose 8 mm
-
4293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
5293650037 Clamp TridonClamp Tridon
-
6293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
7274000395 Head Pipe Ass'y. Includes 7 - 9.Head Pipe Ass'y. Includes 7 - 9.
-
8293710021 Male ConnectorMale Connector
-
9293710048 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
10293710061 > Fitting> Fitting
-
11293750001 Tie Rap 94 mmTie Rap 94 mm
-
12293700016 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
13275500139 Hose 6 mmHose 6 mm
-
14291000306 Bleed FittingBleed Fitting
-
15293710025 > Fitting> Fitting
-
16274000838 Pressure Regulator Ass'y. Includes 16 - 29.Pressure Regulator Ass'y. Includes 16 - 29.
-
17420260721 BellowsBellows
-
18420911551 Valve CoverValve Cover
-
19293700010 Male FittingMale Fitting
-
21293650065 Clamp RivalairClamp Rivalair
-
22420241220 Screw AdjustmentScrew Adjustment
-
23274000423 Feeding RodFeeding Rod
-
24274000612 SpringSpring
-
25290838083 Spring ClipSpring Clip
-
26420838190 ClampClamp
-
30293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
31293730018 DartDart
-
32414115200 Tie Rap 180 mmTie Rap 180 mm
-
33293750002 Tie Rap 130 mmTie Rap 130 mm
-
34275500428 Connector BoxConnector Box
-
35293700016 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
36293700036 Elbow Fitting 45 DegElbow Fitting 45 Deg
-
37275500139 Hose 6 mmHose 6 mm
-
38293650038 Tridon Gear ClampTridon Gear Clamp
-
39293650047 Collet A SertirCollet A Sertir
-
40275500429 Connector StopperConnector Stopper
-
41276000048 Hose 6 mmHose 6 mm
-
42275500345 Hose 8 mmHose 8 mm
