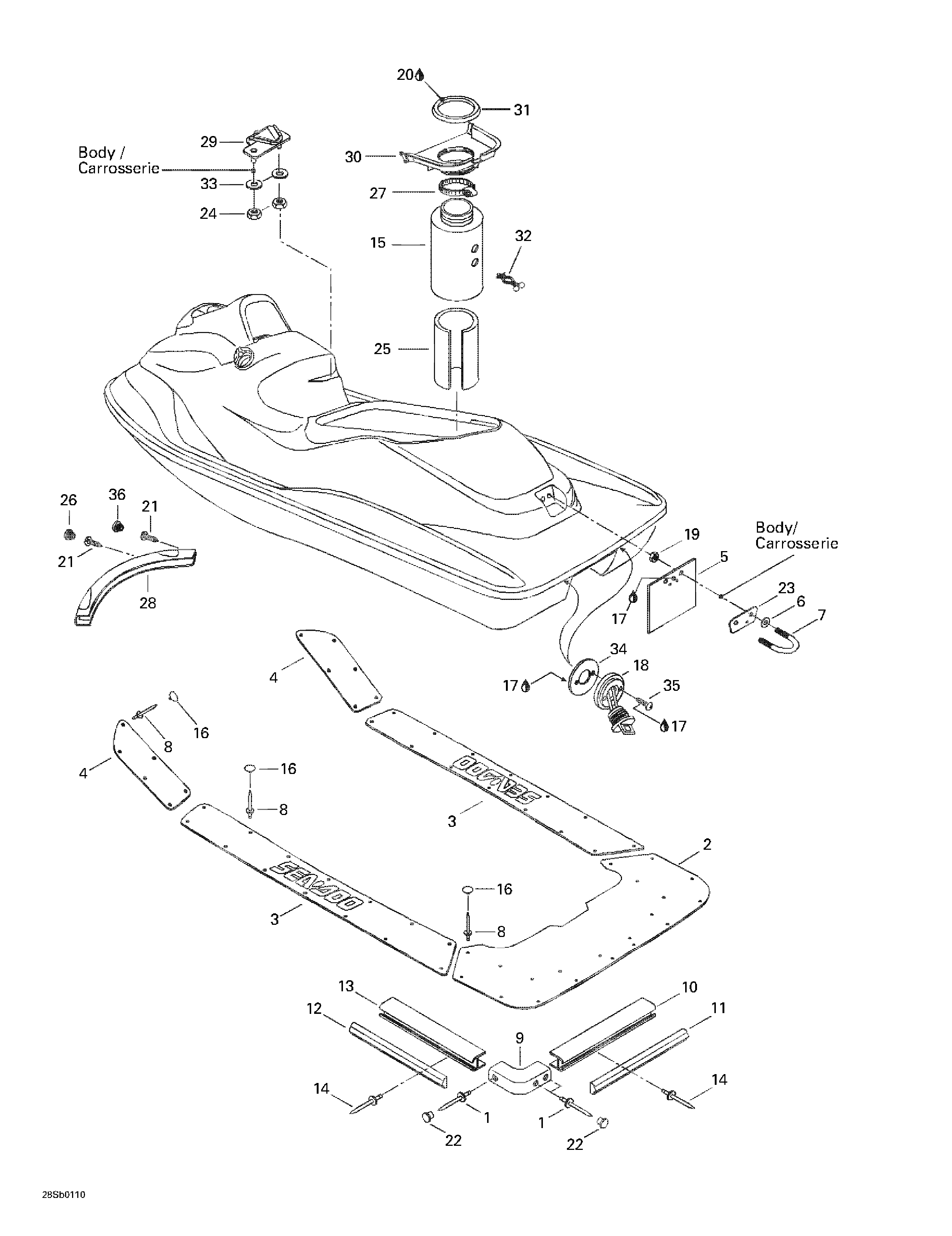

09- Body, Rear View для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1293150013 Rivet 3/16 x 1.190Rivet 3/16 x 1.190
-
2291001185 Rear Carpet (Black)Rear Carpet (Black)
-
3291001183 R.H. Lateral Carpet (Black)R.H. Lateral Carpet (Black)
-
291001184 LH Lateral Carpet (Black)LH Lateral Carpet (Black)
-
4291000511 R.H. Front Carpet (Black)R.H. Front Carpet (Black)
-
291000512 LH Front Carpet (Black)LH Front Carpet (Black)
-
5291001362 Retainer PlateRetainer Plate
-
6293050001 Washer 8 mmWasher 8 mm
-
7292000011 > Clamp> Clamp
-
8293150036 Pop Rivet 1/8 x .765Pop Rivet 1/8 x .765
-
9291001505 Bumper Corner (Black)Bumper Corner (Black)
-
10291001191 Rear Bumper (Black)Rear Bumper (Black)
-
11291001192 Rear Bumper Trim (Black)Rear Bumper Trim (Black)
-
12291001190 Side Bumper Trim (Black)Side Bumper Trim (Black)
-
13291001189 Side Bumper (Black)Side Bumper (Black)
-
14293150014 Pop Rivet 3/16 x .940Pop Rivet 3/16 x .940
-
15291001393 Rear Vent HoseRear Vent Hose
-
16293000014 Cap (Black)Cap (Black)
-
17296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
18292000187 Drain PlugDrain Plug
-
19232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
20413705800 Loctite 414, 29.5 c.cLoctite 414, 29.5 c.c
-
21211000037 ScrewScrew
-
22291000339 Bumper Plug (Black)Bumper Plug (Black)
-
23291000544 Finition PlateFinition Plate
-
24232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
25291000400 Noise DeflectorNoise Deflector
-
26291001040 Bumper Plug (Black)Bumper Plug (Black)
-
27293650054 Tridon ClampTridon Clamp
-
28291001035 Nose Bumper (Black)Nose Bumper (Black)
-
29291001479 HookHook
-
30291001150 Hose Support Ass'y. Includes 30 - 31.Hose Support Ass'y. Includes 30 - 31.
-
30291001105 Hose Vent AdaptorHose Vent Adaptor
-
31293200017 Neoprene SealNeoprene Seal
-
32291000714 Bracket RitchcoBracket Ritchco
-
33234062600 Washer 6 mmWasher 6 mm
-
34293250030 GasketGasket
-
35211000021 Screw 10 - 14 x 5/8Screw 10 - 14 x 5/8
-
36291001519 Bumper PlugBumper Plug
