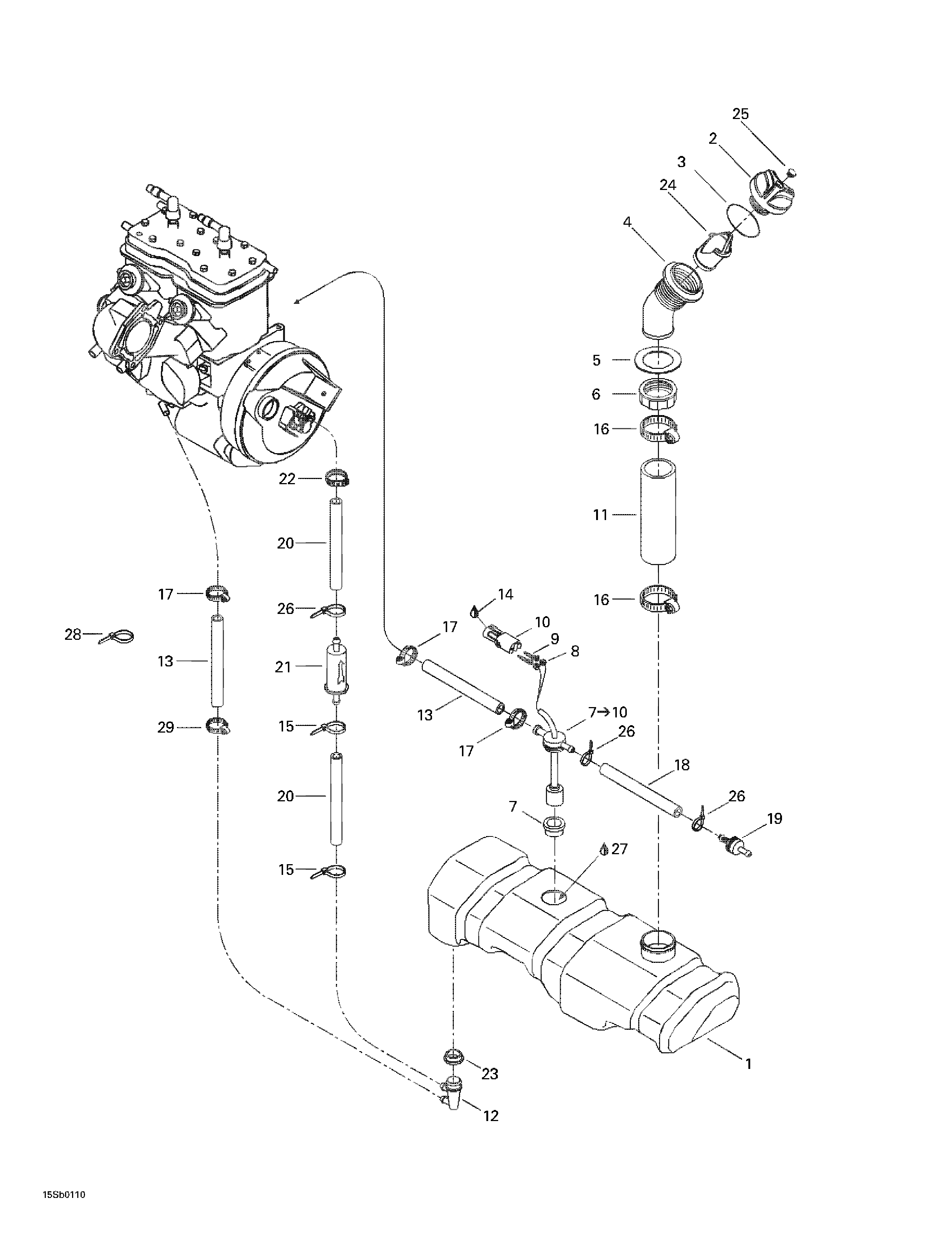

02- Oil Injection System для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1275000172 Oil TankOil Tank
-
2275000221 Oil CapOil Cap
-
3293250075 O-RingO-Ring
-
4275000187 Filler NeckFiller Neck
-
5293250029 GasketGasket
-
6211100012 Nut-Neck Oil FillerNut-Neck Oil Filler
-
7278001401 Oil Level Sensor Ass'y. Includes 7 - 10.Oil Level Sensor Ass'y. Includes 7 - 10.
-
7293720008 GrommetGrommet
-
8278000218 Wire Seal (16,18 gauge)Wire Seal (16,18 gauge)
-
9278000222 Male Terminal (18 gauge)Male Terminal (18 gauge)
-
10278000217 Female Housing (2 Ways)Female Housing (2 Ways)
-
11275000188 Filler HoseFiller Hose
-
12293710051 Fitting Elbow 90 DegFitting Elbow 90 Deg
-
13275000008 Hose 12 mmHose 12 mm
-
14293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
15293750001 Tie RapTie Rap
-
16293650035 Tridon ClampTridon Clamp
-
17293650038 Tridon ClampTridon Clamp
-
18275500139 Hose 6 mmHose 6 mm
-
19275500398 Check ValveCheck Valve
-
20275000007 Hose 8 mmHose 8 mm
-
21275000051 Oil FilterOil Filter
-
22293650042 Oetiker ClampOetiker Clamp
-
23293720008 GrommetGrommet
-
24275000190 RestrictorRestrictor
-
25293000076 Snap CapSnap Cap
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liters)Injection Oil (3 x 4 Liters)
-
413803200 Injection Oil (Drum)Injection Oil (Drum)
-
413710500 Synthetic Injection Oil (12 x 1 Liter)Synthetic Injection Oil (12 x 1 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liters)Synthetic Injection Oil (3 x 4 Liters)
-
413710700 Synthetic Injection Oil (205 Liters)Synthetic Injection Oil (205 Liters)
-
28414115200 Tie Rap 180 mmTie Rap 180 mm
-
29293650084 Norma ClampNorma Clamp
