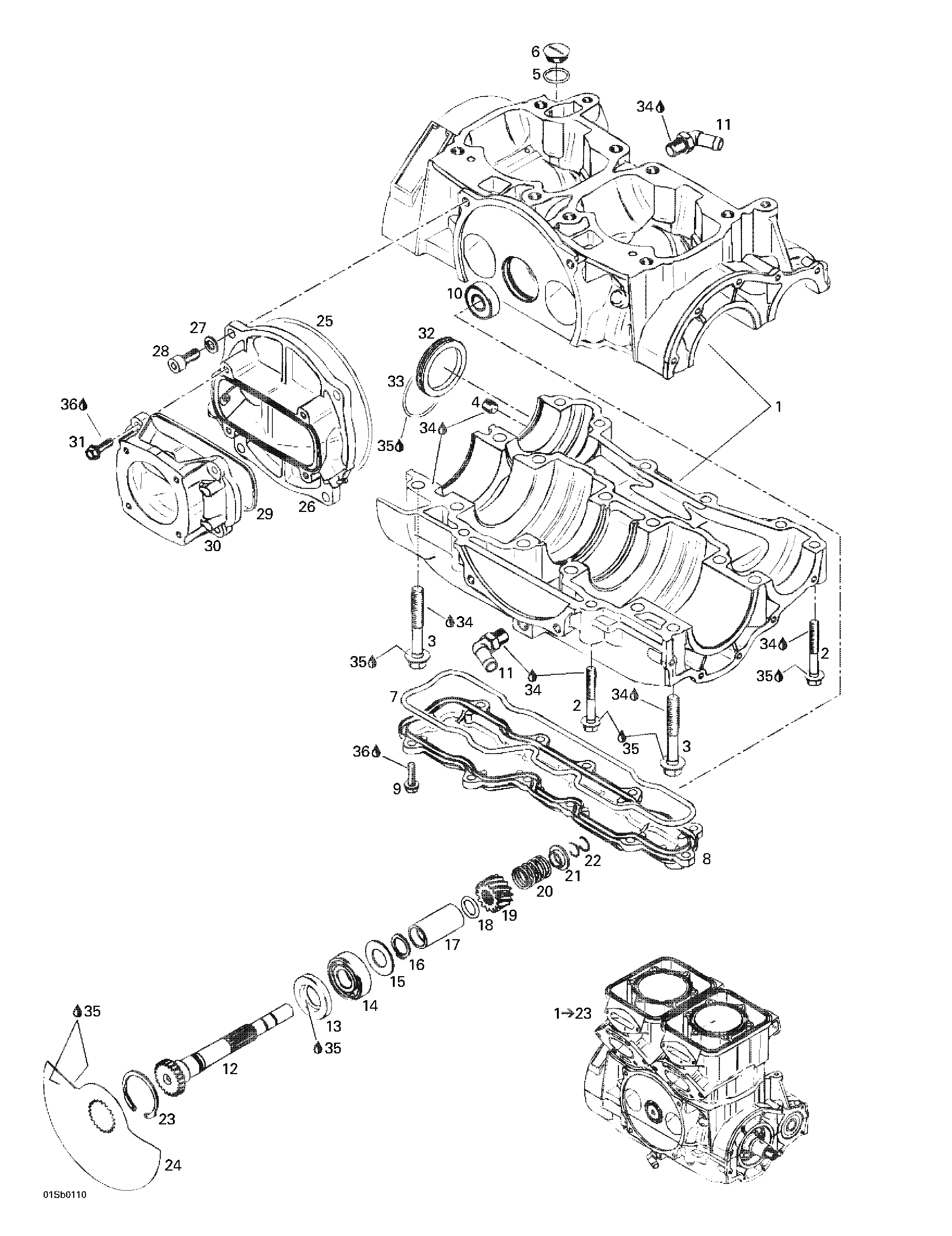

01- Crankcase, Rotary Valve для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1290078703 Short Block Ass'y. Includes 1 - 23.Short Block Ass'y. Includes 1 - 23.
-
1290888223 Crankcase Ass'y > (Silver). Includes 1 - 11.Crankcase Ass'y > (Silver). Includes 1 - 11.
-
2290240328 Flanged Screw M8 x 55Flanged Screw M8 x 55
-
3290941333 Flanged Screw M10 x 75Flanged Screw M10 x 75
-
4290240483 Drain Plug 1/8''Drain Plug 1/8''
-
5290250890 O-RingO-Ring
-
6290241801 Drain Plug M18Drain Plug M18
-
7420950360 O'RingO'Ring
-
8290811236 Waterchannel CoverWaterchannel Cover
-
9290941253 Screw M6 x 20Screw M6 x 20
-
10420932797 Ball Bearing >Ball Bearing >
-
11420922245 Hose Nipples 90 DegHose Nipples 90 Deg
-
12290837352 Rotary Valve ShaftRotary Valve Shaft
-
13420930580 Oil SealOil Seal
-
14290932032 Ball Bearing >Ball Bearing >
-
15420227439 ShimShim
-
16420845450 Snap RingSnap Ring
-
17290847287 Distance SleeveDistance Sleeve
-
18293300024 O-RingO-Ring
-
19420935735 Sprocket 14 TeethSprocket 14 Teeth
-
20420938810 SpringSpring
-
21420827430 Spring SeatSpring Seat
-
22420845160 CirclipCirclip
-
23420845260 Snap RingSnap Ring
-
24420924502 Rotary Valve (159 Deg.)Rotary Valve (159 Deg.)
-
25290831767 O-RingO-Ring
-
26290811036 Rotary Valve CoverRotary Valve Cover
-
27234180602 Lock Washer 8 mmLock Washer 8 mm
-
28205082060 Socket Screw M8 x 20Socket Screw M8 x 20
-
29420850520 Rubber RingRubber Ring
-
30290867821 Intake ManifoldIntake Manifold
-
31290841543 Screw M6 x 25Screw M6 x 25
-
32290810745 Cover BearingCover Bearing
-
33290230300 O-RingO-Ring
-
34293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
35413707000 Molykote 111Molykote 111
-
36293800023 Loctite 767, Antiseize Lubricant, 454 gr.Loctite 767, Antiseize Lubricant, 454 gr.
-
37290886392 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
