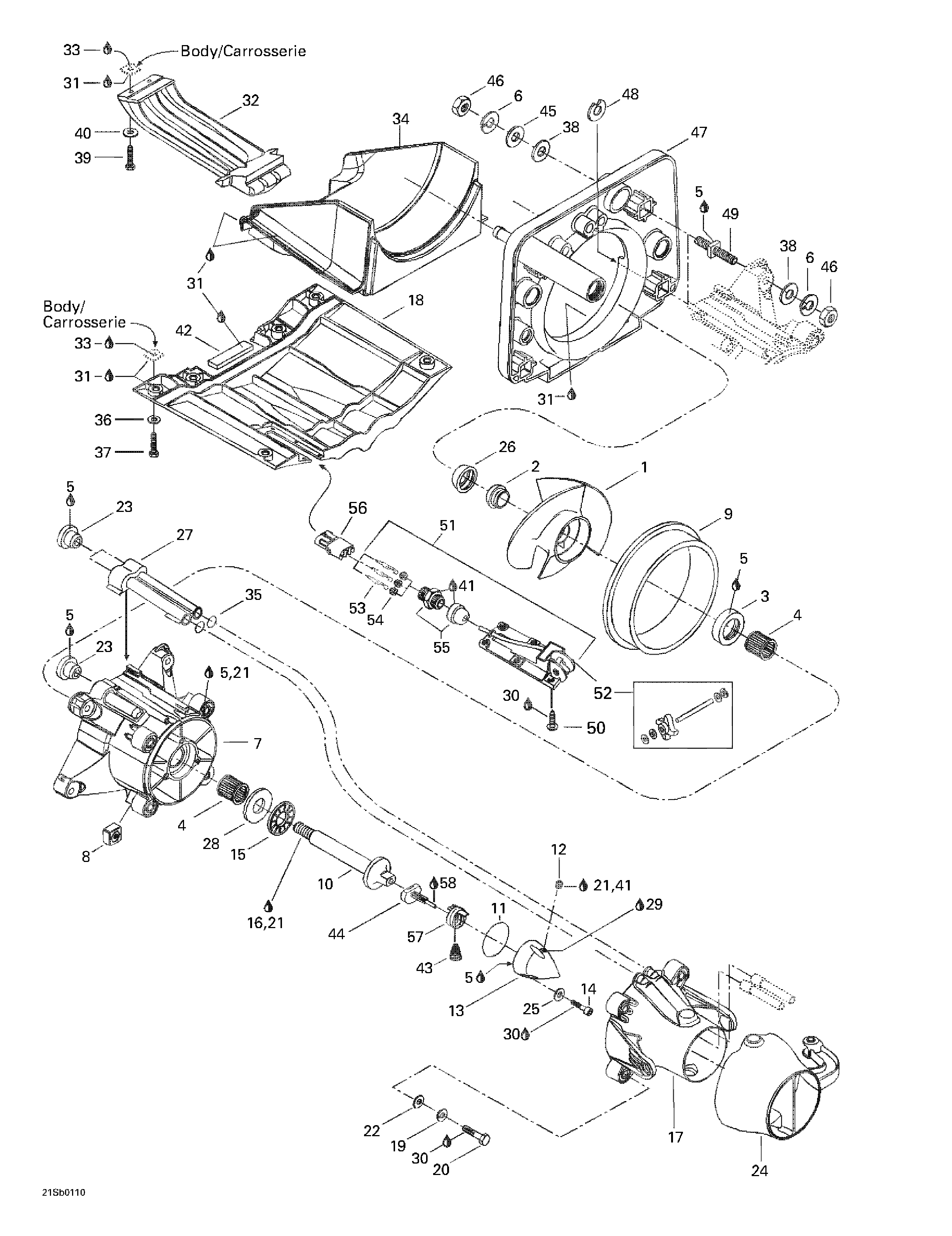

05- Propulsion System для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1271001024 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
271000931 Stainless Steel Impeller Ass'ym (H.A.)Stainless Steel Impeller Ass'ym (H.A.)
-
2271000516 Impeller BootImpeller Boot
-
3293200065 Double Lip SealDouble Lip Seal
-
4293350017 Needle BearingNeedle Bearing
-
5293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
6234101601 Washer Lock 10 mmWasher Lock 10 mm
-
7204160055 Impeller Housing Ass'y. Includes 7 - 9.Impeller Housing Ass'y. Includes 7 - 9.
-
8211100033 Square Nut M8Square Nut M8
-
9271000290 Wear-RingWear-Ring
-
10271000291 Impeller ShaftImpeller Shaft
-
11293300011 O-RingO-Ring
-
12211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
13271000895 Impeller CoverImpeller Cover
-
14205052060 Socket Head Screw M5 x 20Socket Head Screw M5 x 20
-
15293350019 Thrust BearingThrust Bearing
-
16413705200 Loctite 262, 10 mlLoctite 262, 10 ml
-
17271000867 Venturi Ass'yVenturi Ass'y
-
18271000955 Riding Plate (Black)Riding Plate (Black)
-
19234181601 Lock-Washer 8 mmLock-Washer 8 mm
-
20207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
21293800041 Primer LoctitePrimer Loctite
-
22234082600 Flat Washer 8 mmFlat Washer 8 mm
-
23293250084 O-RingO-Ring
-
24271000870 Steering NozzleSteering Nozzle
-
25234051600 Flat Washer 5 mmFlat Washer 5 mm
-
26271000517 RingRing
-
27271000972 Water OutletWater Outlet
-
28293350020 Thrust WasherThrust Washer
-
29293600011 Synthetic OilSynthetic Oil
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293800066 Sealant Loctite 5900, 300 mlSealant Loctite 5900, 300 ml
-
32271000732 Inlet GrateInlet Grate
-
33296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
34271000592 ShoeShoe
-
35293300013 O-RingO-Ring
-
36234081600 Washer 8 mmWasher 8 mm
-
37207383060 Screw Hex. M8 x 30 (Scoch Grip)Screw Hex. M8 x 30 (Scoch Grip)
-
38234001600 Stainless Flat Washer 10 mmStainless Flat Washer 10 mm
-
39207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
40234061600 Flat Washer 6 mmFlat Washer 6 mm
-
41293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
42293200003 SealSeal
-
43271001108 SpringSpring
-
44271001124 PusherPusher
-
45234002600 Stainless Washer 10 mmStainless Washer 10 mm
-
46232001600 Nut M10Nut M10
-
47271000928 Support pumpSupport pump
-
48272000053 ShimShim
-
49250300010 StudStud
-
50250000020 Screw M5 x 10Screw M5 x 10
-
51278000849 Speed Sensor. Includes 51 - 55.Speed Sensor. Includes 51 - 55.
-
52295500108 Paddle Wheel KitPaddle Wheel Kit
-
53278000222 Male Terminal (18 gauge)Male Terminal (18 gauge)
-
54278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
55293710031 Electric ConnectorElectric Connector
-
56278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
57271001107 SliderSlider
-
58293550025 Synthetic Grease, 300 mlSynthetic Grease, 300 ml
