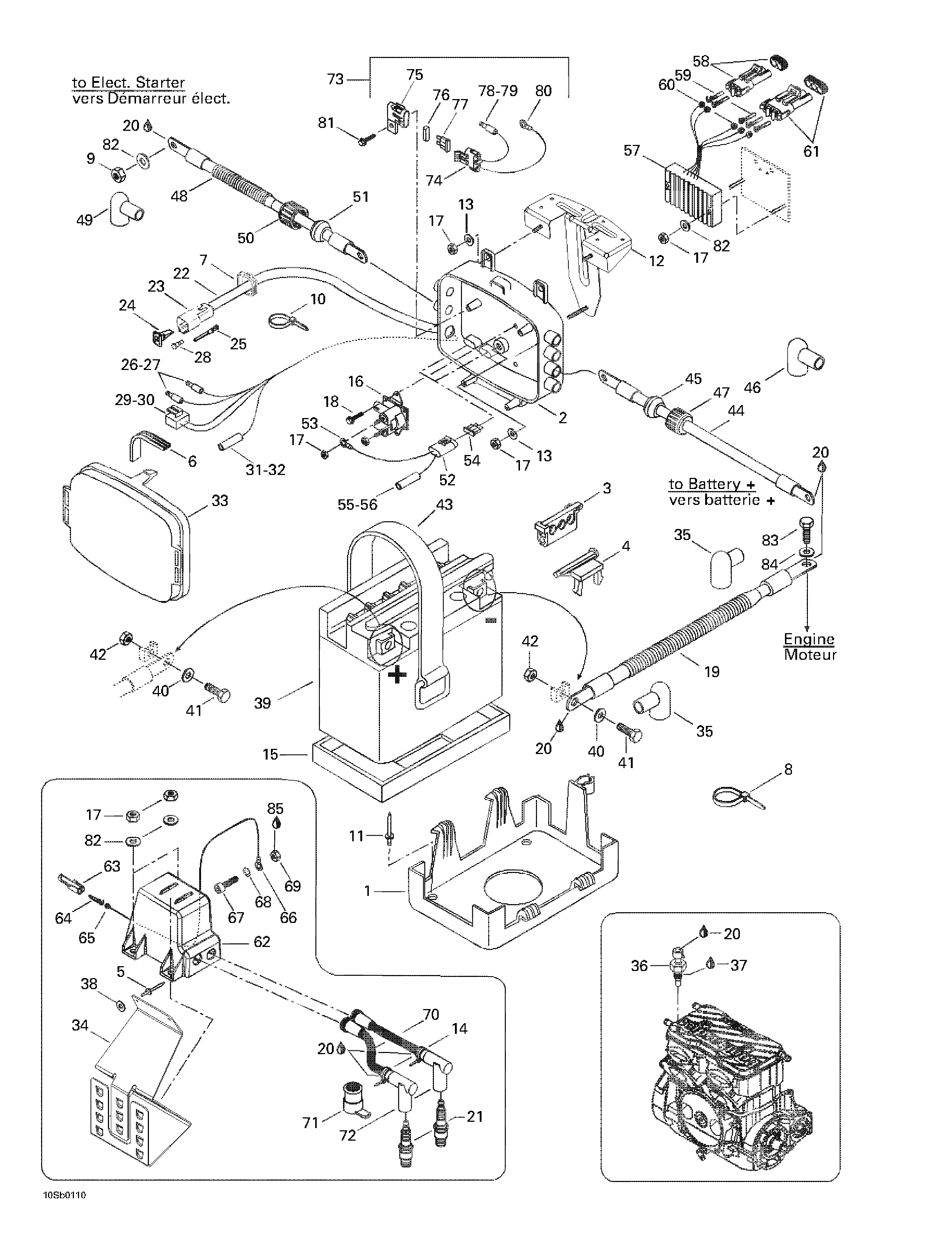

10- Electrical Box And Battery для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1278001233 Battery SupportBattery Support
-
2278001425 ElectricalBox BaseElectricalBox Base
-
3278000245 3 Wire Support3 Wire Support
-
4278001096 Collar SupportCollar Support
-
5293150043 RivetRivet
-
6278001173 GasketGasket
-
7293200030 GasketGasket
-
8293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10293750001 Tie Rap 94 mmTie Rap 94 mm
-
11293150037 RivetRivet
-
12278001418 Box Support Ass'yBox Support Ass'y
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14293750002 Tie Rap 130 mmTie Rap 130 mm
-
15278001234 Battery Lower PadBattery Lower Pad
-
16278001376 Starter RelayStarter Relay
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18210261040 Self Tapping Screw M6 x 10Self Tapping Screw M6 x 10
-
19278001446 Ground CableGround Cable
-
20293550004 Dielectric Grease, 150grDielectric Grease, 150gr
-
21278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
22278000945 Rear Electric Box Harness. Includes 22 - 32.Rear Electric Box Harness. Includes 22 - 32.
-
23270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
24278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
25278000631 Male TerminalMale Terminal
-
26278000230 Male TerminalMale Terminal
-
27278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
28293000052 Sealing CapSealing Cap
-
29278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
30278001114 Female TerminalFemale Terminal
-
31278001009 Female Terminal(AMP)Female Terminal(AMP)
-
32278001007 Insulating SheathInsulating Sheath
-
33278001433 Electrical Box CoverElectrical Box Cover
-
34278001412 Coil SupportCoil Support
-
35278000020 Protector CapProtector Cap
-
36278001016 Temperature SensorTemperature Sensor
-
37293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
38211200035 Flat WasherFlat Washer
-
39278000712 BatteryBattery
-
40211200018 Flat Washer 6 mmFlat Washer 6 mm
-
41211000045 Hex. ScrewHex. Screw
-
42211100022 Nut M6Nut M6
-
43293850021 StrapStrap
-
44278001445 Battery (Cable (Red). Includes 44 - 47.Battery (Cable (Red). Includes 44 - 47.
-
45278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
46278000020 Protector CapProtector Cap
-
47278000100 Electrical Box CapElectrical Box Cap
-
48278001444 Startor Cable (Red). Includes 48 - 51.Startor Cable (Red). Includes 48 - 51.
-
49278000020 Protector CapProtector Cap
-
50278000100 Electrical Box CapElectrical Box Cap
-
51278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
52278001142 Harness Fuse 20 Amp. Includes 52 - 56.Harness Fuse 20 Amp. Includes 52 - 56.
-
53278000300 Open BarrelOpen Barrel
-
54278001143 20 Amp. Fuse20 Amp. Fuse
-
55278001009 Female TerminalFemale Terminal
-
56278001007 Insulating Sheath (Simple)Insulating Sheath (Simple)
-
57278001554 Rectifier Ass'y. Includes 57 - 61.Rectifier Ass'y. Includes 57 - 61.
-
58278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
59409007300 Female TerminalFemale Terminal
-
60278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
61278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
62278001545 Ignition Coil ass'y. Includes 62 - 70.Ignition Coil ass'y. Includes 62 - 70.
-
63278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
64409004300 Male Terminal (16 Gauge)Male Terminal (16 Gauge)
-
65278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
66409003200 Open BarrelOpen Barrel
-
67205062044 Allen Screw M6 x 20Allen Screw M6 x 20
-
68394001900 Lock WasherLock Washer
-
69232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
70278001464 Spark Plug Wire (270 mm)Spark Plug Wire (270 mm)
-
278001465 Spark Plug Wire (320 mm)Spark Plug Wire (320 mm)
-
71278001380 Protector CapProtector Cap
-
72278000237 Spark Plug CapSpark Plug Cap
-
73278001384 Harness Fuse. Includes 73 - 80.Harness Fuse. Includes 73 - 80.
-
74278001325 Fuse HolderFuse Holder
-
75278001326 Fuse Holder CapFuse Holder Cap
-
76278000805 CushionCushion
-
77409012800 Fuse 1AFuse 1A
-
78278000230 Male TerminalMale Terminal
-
79278001008 Insulating SheathInsulating Sheath
-
80278000300 Open BarrelOpen Barrel
-
81211000037 Self Taping ScrewSelf Taping Screw
-
82234061600 Flat Washer 6 mmFlat Washer 6 mm
-
83207382560 Screw Hex. M8 x 25 (Scotch Grip)Screw Hex. M8 x 25 (Scotch Grip)
-
84234081600 Flat Washer 8 mmFlat Washer 8 mm
-
85293800005 Loctite 271, 10 mlLoctite 271, 10 ml
