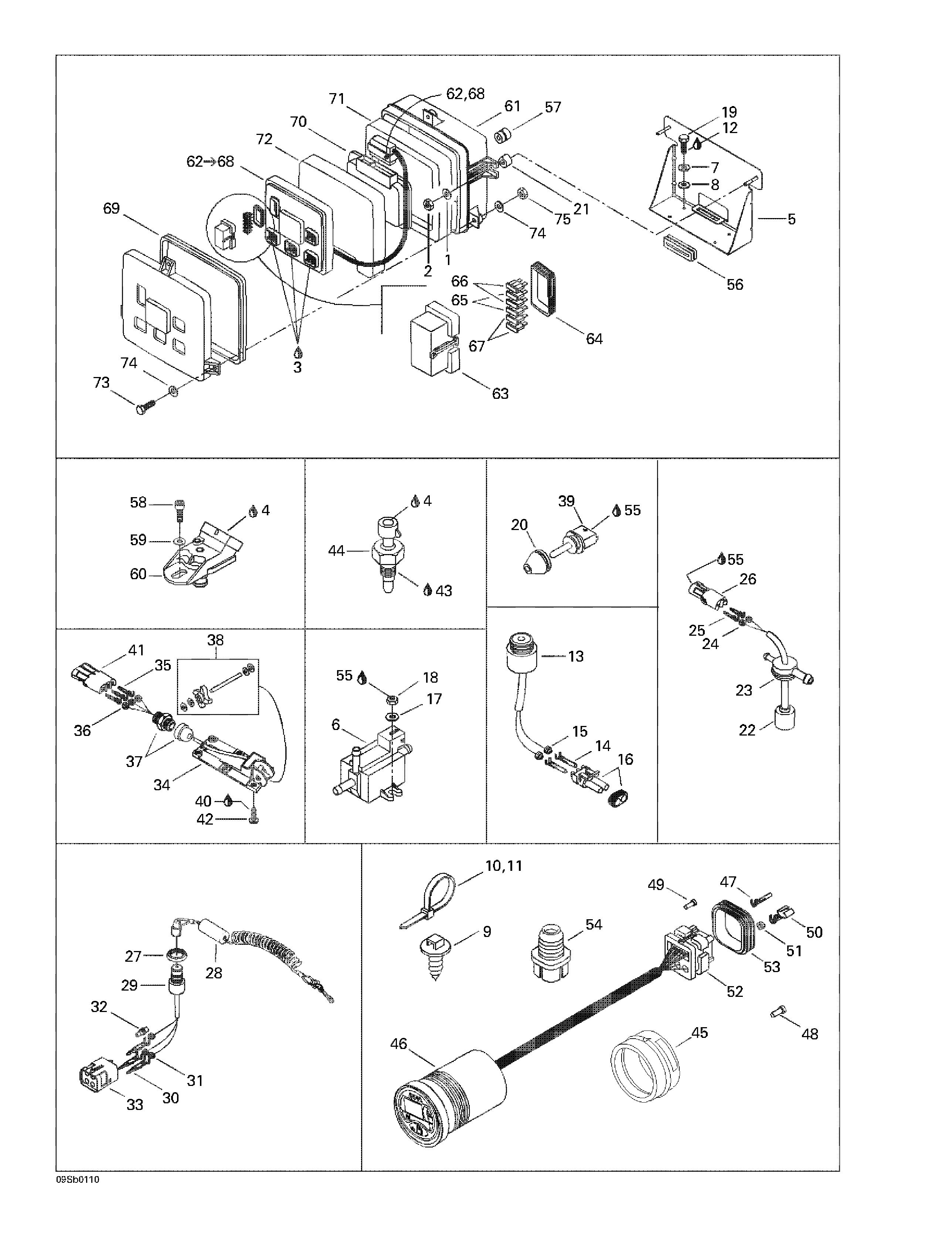

10- Electronic Module And Electrical Accessories для BRP GSX RFI, 5549 - 2001
-
№АртикулНазвание
-
1234062600 Flat Washer 6 mmFlat Washer 6 mm
-
2232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
3293550015 ''Deoxit'' Spray Lube''Deoxit'' Spray Lube
-
4293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
5278001139 Box Support Ass'yBox Support Ass'y
-
6270600005 Solenoid ValveSolenoid Valve
-
7234151601 Lock Washer M5Lock Washer M5
-
8234052600 Washer 5 mmWasher 5 mm
-
9293730018 Dart MountDart Mount
-
10293750002 Tie Rap 130 mmTie Rap 130 mm
-
11414115200 Tie Rap 180 mmTie Rap 180 mm
-
12293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
13278000978 Buzzer Ass'y. Includes 13 - 16.Buzzer Ass'y. Includes 13 - 16.
-
14278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
15278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
16278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
17234051600 Flat Washer 5 mmFlat Washer 5 mm
-
18232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
19243041660 Screw PlastiteScrew Plastite
-
20278001054 InsulatorInsulator
-
21272000074 SpacerSpacer
-
22278001401 Oil sensor. Includes 22 - 26.Oil sensor. Includes 22 - 26.
-
23293720008 GrommetGrommet
-
24278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
25278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
26278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
27278000508 Safety Switch NutSafety Switch Nut
-
28278001543 Safety Landyard Ass'ySafety Landyard Ass'y
-
29278000977 Safety Switch. Includes 29 - 33.Safety Switch. Includes 29 - 33.
-
30278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
31278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
32278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
33278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
34278000849 Speed Sensor. Includes 34 - 38.Speed Sensor. Includes 34 - 38.
-
35278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
36278000218 Wire Seal (16 and 18 Gauge - Green)Wire Seal (16 and 18 Gauge - Green)
-
37293710031 Electrical ConnectorElectrical Connector
-
38295500108 Paddle Wheel KitPaddle Wheel Kit
-
39270600000 Air SensorAir Sensor
-
40293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
41278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
42250000020 Screw M5 x 10Screw M5 x 10
-
43293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
44278001016 Temperature SensorTemperature Sensor
-
45293720047 Gauge SupportGauge Support
-
46278001542 LCD Info Gauge. Includes 46 - 54.LCD Info Gauge. Includes 46 - 54.
-
47278000995 Female Terminal(AMP)Female Terminal(AMP)
-
48293000070 Sealing Cap (AMPSealing Cap (AMP
-
49409013900 Wire Seal (Cap)Wire Seal (Cap)
-
50278000994 Female Terminal(AMP)Female Terminal(AMP)
-
51278000996 Wire Seal(AMP)Wire Seal(AMP)
-
52278000993 Male Housing (26 Circuits). Includes 52 - 53.Male Housing (26 Circuits). Includes 52 - 53.
-
53278001307 Wire Seal (AMP)Wire Seal (AMP)
-
54293720042 GrommetGrommet
-
55293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
56278001259 InsulatorInsulator
-
57278001260 InsulatorInsulator
-
58205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
59234061600 Flat Washer 6 mmFlat Washer 6 mm
-
60270600040 Pressure SensorPressure Sensor
-
61278001535 Electronic Module Ass'y. Includes 61 - 75.Electronic Module Ass'y. Includes 61 - 75.
-
61278000938 Electronic Box BaseElectronic Box Base
-
62278001529 Electronic Module. Includes 62 - 68.Electronic Module. Includes 62 - 68.
-
62278000999 Wire SealWire Seal
-
63278001069 Fuse Holder CoverFuse Holder Cover
-
64278001070 Cover SealCover Seal
-
65278000344 5 Amp. Fuse5 Amp. Fuse
-
66278000343 15 Amp. Fuse15 Amp. Fuse
-
67278001197 10 Amp. Fuse10 Amp. Fuse
-
68278000998 Female TerminalFemale Terminal
-
69293250063 GasketGasket
-
70278001530 Electronic ModuleElectronic Module
-
71278000941 Lower FoamLower Foam
-
72278001100 Top FoamTop Foam
-
73207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
74234062600 Flat Washer 6 mmFlat Washer 6 mm
-
75232561600 Elastic Stop Nut M6Elastic Stop Nut M6
