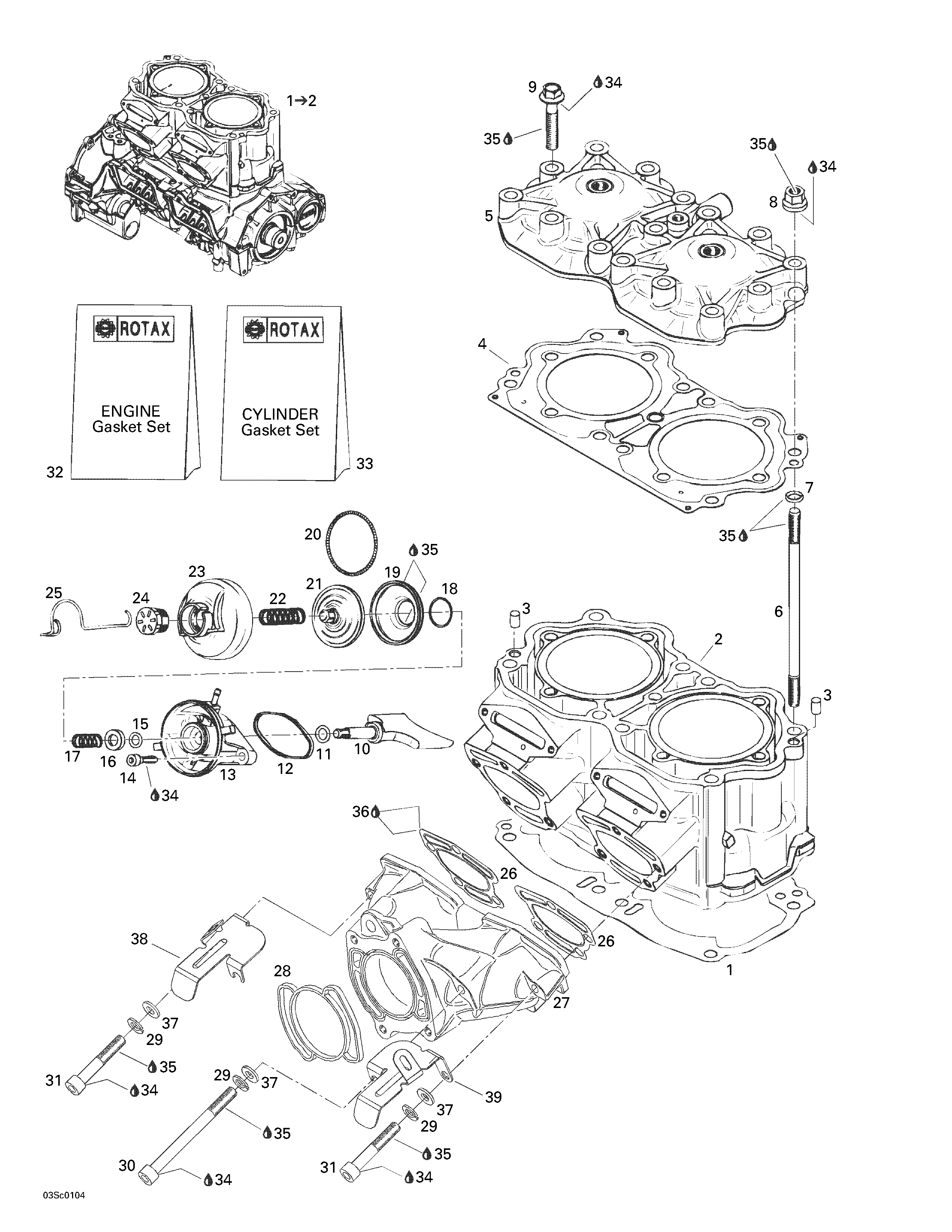

01- Cylinder, Exhaust Manifold для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1290094703 Short Block Ass'y. Includes 1 - 2.Short Block Ass'y. Includes 1 - 2.
-
1290931902 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
290931901 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931900 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
2290613561 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290632010 Pin 8 x 12Pin 8 x 12
-
4290931702 Cylinder Head GasketCylinder Head Gasket
-
5290923921 Head Cylinder (Silver)Head Cylinder (Silver)
-
6290640232 Stud M10 x 200Stud M10 x 200
-
7290850460 O-RingO-Ring
-
8290842863 Stud Nut M10Stud Nut M10
-
9290841708 Hex. Flanged Screw M10 x 60Hex. Flanged Screw M10 x 60
-
10290854410 Exhaust ValveExhaust Valve
-
11290931765 O-RingO-Ring
-
12290931670 Rubber GasketRubber Gasket
-
13290854435 Valve HousingValve Housing
-
14205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
15290931765 O-RingO-Ring
-
16290926220 Support RingSupport Ring
-
17290838260 SpringSpring
-
18420838253 Clamp SpringClamp Spring
-
19290260723 BellowsBellows
-
20290239048 Hose SpringHose Spring
-
21290854446 Exhaust ValveExhaust Valve
-
22290939137 Spring CompressionSpring Compression
-
23290911555 Cover ValveCover Valve
-
24420241221 Screw AdjustmentScrew Adjustment
-
25420838083 Spring ClipSpring Clip
-
26290931653 GasketGasket
-
27290979606 Exhaust Manifold (Silver)Exhaust Manifold (Silver)
-
28290931990 GasketGasket
-
29234101601 Lock Washer 10 mmLock Washer 10 mm
-
30290941483 Socket Head Screw M10 x 110Socket Head Screw M10 x 110
-
31205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
32290889150 Engine Gasket SetEngine Gasket Set
-
33290889155 Cylinder Gasket SetCylinder Gasket Set
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35413707000 Molykote 111Molykote 111
-
36293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
37234000600 Flat Washer 10 mmFlat Washer 10 mm
-
38273000170 Duct Support (MAG)Duct Support (MAG)
-
39273000169 Duct Support (PTO)Duct Support (PTO)
