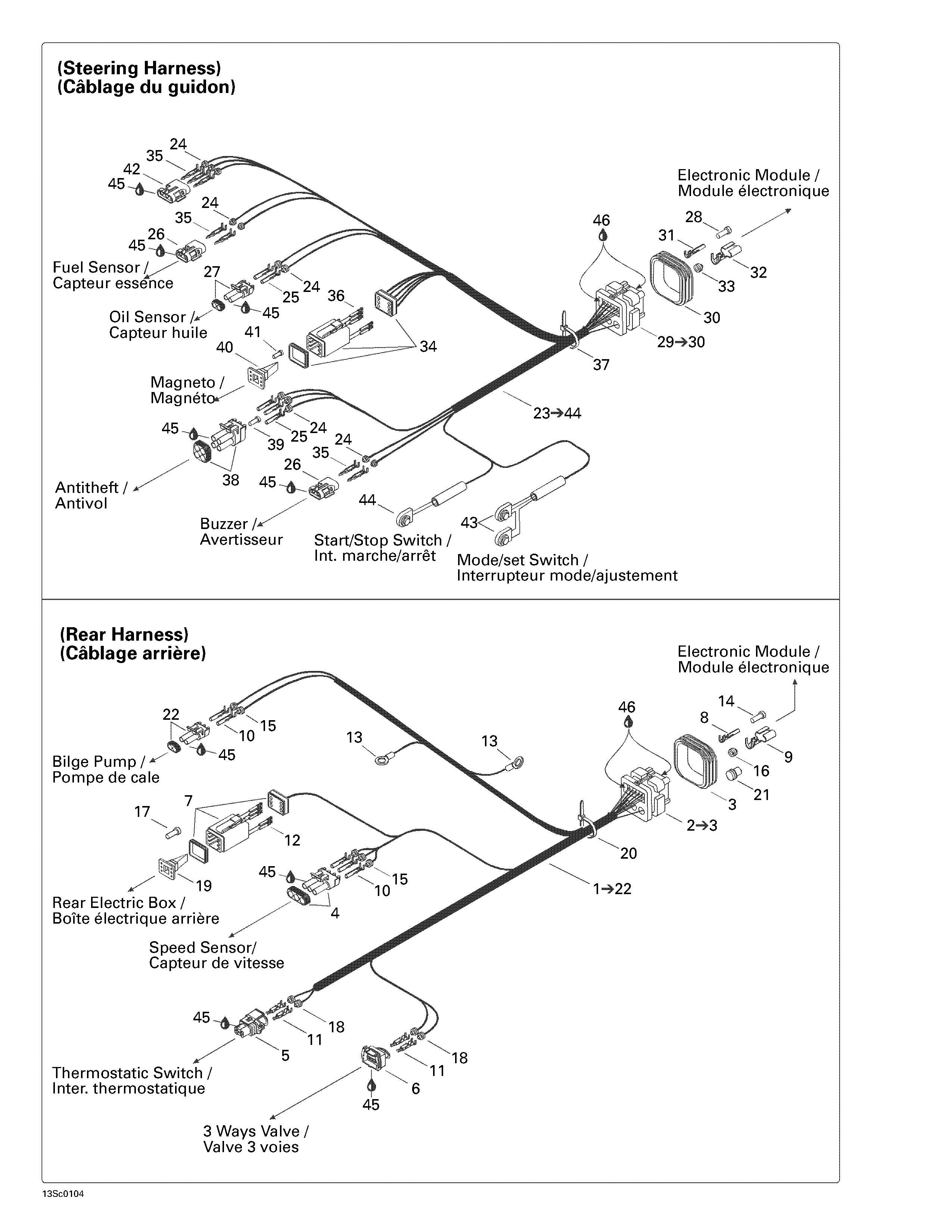

10- Electrical Harness для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1204050286 Rear Harness. Includes 1 - 22.Rear Harness. Includes 1 - 22.
-
2278001063 Male Housing (26 Circuits) (AMP). Includes 2 - 3.Male Housing (26 Circuits) (AMP). Includes 2 - 3.
-
3278001307 Wire Seal (AMP)Wire Seal (AMP)
-
4278000273 Male Housing (3 Circuits)(Packard)Male Housing (3 Circuits)(Packard)
-
5278001005 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
6278001003 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
7278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
8278000995 Female Terminal(AMP)Female Terminal(AMP)
-
9278000994 Female Terminal(AMP)Female Terminal(AMP)
-
10278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
11278000998 Female Terminal(AMP)Female Terminal(AMP)
-
12278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
13409003200 Open BarrelOpen Barrel
-
14293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
15278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
16278000996 Wire Seal(AMP)Wire Seal(AMP)
-
17293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
18278000999 Wire Seal(AMP)Wire Seal(AMP)
-
19278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
20293750002 Tie Rap 130 mmTie Rap 130 mm
-
21409013900 Plug(AMP)Plug(AMP)
-
22278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
23204390228 Steering Harness. Includes 23 - 44.Steering Harness. Includes 23 - 44.
-
24278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
25278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
26278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
27278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
28293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
29278001062 Male Housing (26 Circuits) (AMP). Includes 29 - 30.Male Housing (26 Circuits) (AMP). Includes 29 - 30.
-
30278001307 Wire Seal (AMP)Wire Seal (AMP)
-
31278000995 Female Terminal(AMP)Female Terminal(AMP)
-
32278000994 Female Terminal(AMP)Female Terminal(AMP)
-
33278000996 Wire Seal(AMP)Wire Seal(AMP)
-
34278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
35278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
36278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
37293750002 Tie Rap 130 mmTie Rap 130 mm
-
38278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
39278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
40278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
41293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
42278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
43204390229 Switch - Mode/SetSwitch - Mode/Set
-
44204390230 Stop/Start Switch Ass'yStop/Start Switch Ass'y
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46293550015 Deoxit Spray LubeDeoxit Spray Lube
