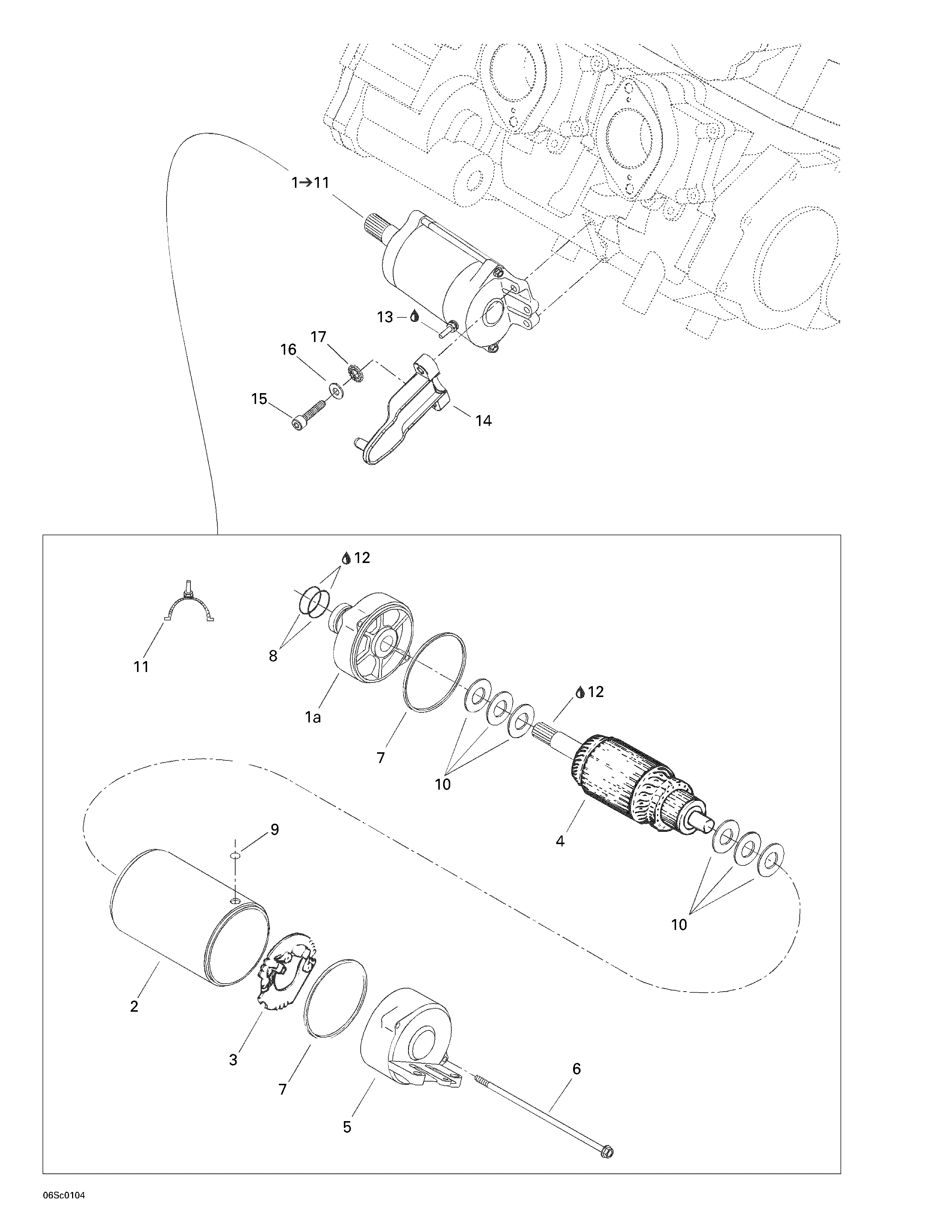

04- Starter для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1278000987 Starter Ass'y. Includes 1 - 11.Starter Ass'y. Includes 1 - 11.
-
1a278001152 Front HousingFront Housing
-
2278001153 Starter HousingStarter Housing
-
3278001154 Brush HolderBrush Holder
-
4278001155 ArmatureArmature
-
5278001156 Rear HousingRear Housing
-
6278001157 ScrewScrew
-
7278001158 Square RingSquare Ring
-
8278001159 O-RingO-Ring
-
9278001160 O-RingO-Ring
-
10278001161 Washer SetWasher Set
-
11278001385 Brush KitBrush Kit
-
12293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
14273000123 Air Silencer SupportAir Silencer Support
-
15205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
