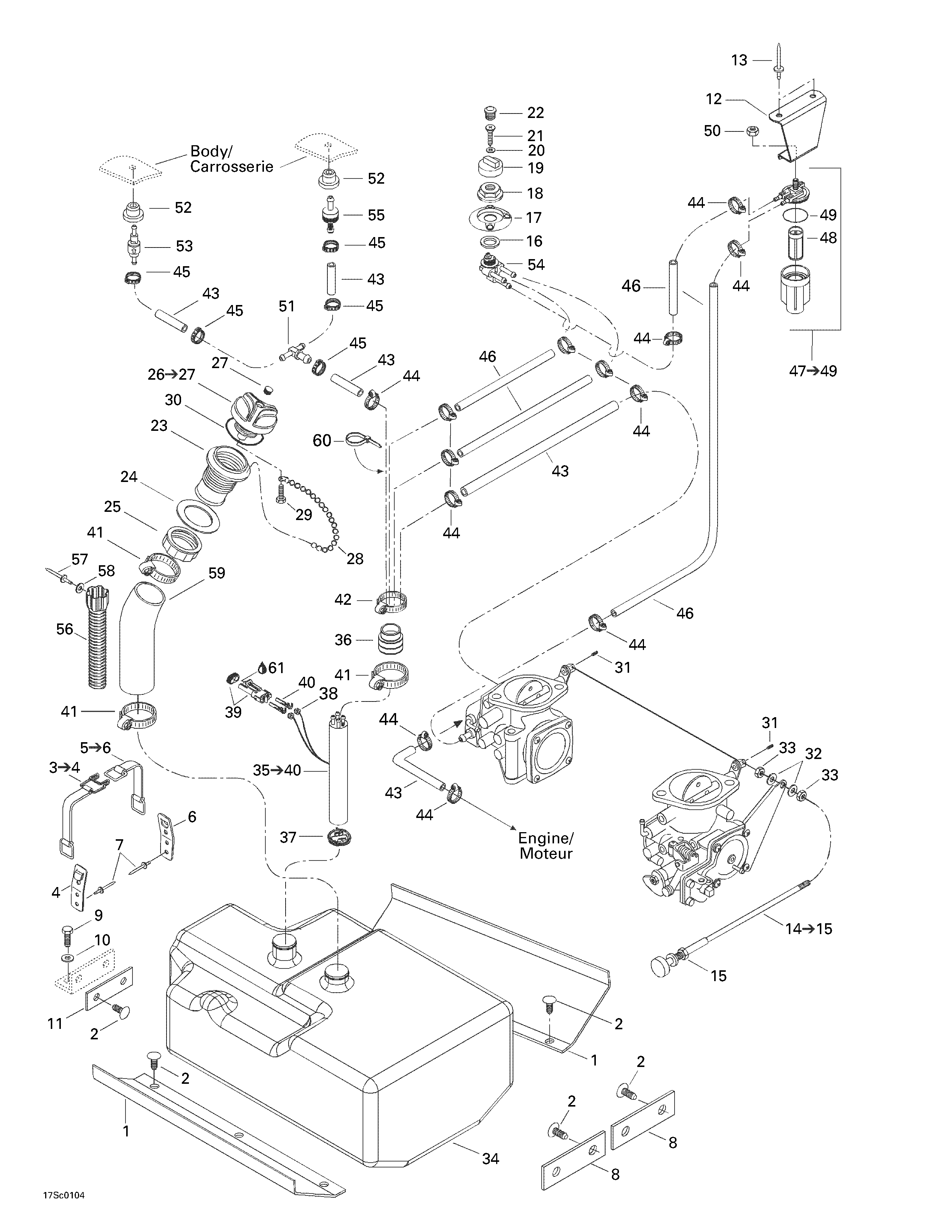

02- Fuel System для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1204050298 Rubber PadRubber Pad
-
2293730006 Dart (Black)Dart (Black)
-
3293850025 Strap. Includes 3 - 4.Strap. Includes 3 - 4.
-
4293850024 Strap ClipStrap Clip
-
5293850026 Strap. Includes 5 - 6.Strap. Includes 5 - 6.
-
6293850024 Strap ClipStrap Clip
-
7293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
8292000415 Rubber PadRubber Pad
-
9207162060 Screw Hex. M6 x 20Screw Hex. M6 x 20
-
10234062600 Flat Washer 6 mmFlat Washer 6 mm
-
11293830055 Rubber PadRubber Pad
-
12275500287 Fuel Filter SupportFuel Filter Support
-
13293150039 Pop Rivet 3/16''Pop Rivet 3/16''
-
14204250153 Choke Cable. Includes 14 - 15.Choke Cable. Includes 14 - 15.
-
15211100030 NutNut
-
16293250004 GasketGasket
-
17275500285 Fuel Valve PlateFuel Valve Plate
-
18212100009 Hex. Plastic NutHex. Plastic Nut
-
19275500299 Fuel Valve KnobFuel Valve Knob
-
20234040600 Flat Washer 4 mmFlat Washer 4 mm
-
21208640860 Phillips Screw M4 x 8Phillips Screw M4 x 8
-
22275500241 PlugPlug
-
23275500247 Filler NeckFiller Neck
-
24293250029 GasketGasket
-
25211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
26275500153 Fuel Tank Cap. Includes 26 - 27.Fuel Tank Cap. Includes 26 - 27.
-
27293000034 Snap CapSnap Cap
-
28275500015 ChainChain
-
29241140060 Hex. Screw K40 x 10Hex. Screw K40 x 10
-
30293250075 GasketGasket
-
31206540660 Socket Set Screw M4 x 6Socket Set Screw M4 x 6
-
32234061600 Flat Washer 6 mmFlat Washer 6 mm
-
33232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
34204560158 Fuel TankFuel Tank
-
35275500472 Baffle. Includes 35 - 40.Baffle. Includes 35 - 40.
-
36275500111 Tube AdapterTube Adapter
-
37275500397 Fuel FilterFuel Filter
-
38278000218 Wire SealWire Seal
-
39278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
40278000223 Female TerminalFemale Terminal
-
41293650023 Tridon ClampTridon Clamp
-
42293650035 Tridon ClampTridon Clamp
-
43275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
44293650038 Tridon ClampTridon Clamp
-
45293650042 Oetiker ClampOetiker Clamp
-
46275500345 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
47275500358 Fuel Filter Ass'y. Includes 47 - 49.Fuel Filter Ass'y. Includes 47 - 49.
-
48275500089 Fuel FilterFuel Filter
-
49275500090 O-RingO-Ring
-
50232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
51293710024 T-FittingT-Fitting
-
52293720029 GrommetGrommet
-
53275500479 Check ValveCheck Valve
-
54275500400 Fuel ValveFuel Valve
-
55275500398 Check ValveCheck Valve
-
56275500067 Inner Filler HoseInner Filler Hose
-
57293150057 Pop Rivet 1/8''Pop Rivet 1/8''
-
58234032600 Flat Washer 3 mmFlat Washer 3 mm
-
59204250135 Filler Hose NeckFiller Hose Neck
-
60414115200 Tie RapTie Rap
-
61293550004 Dielectric Grease, 400 gDielectric Grease, 400 g
