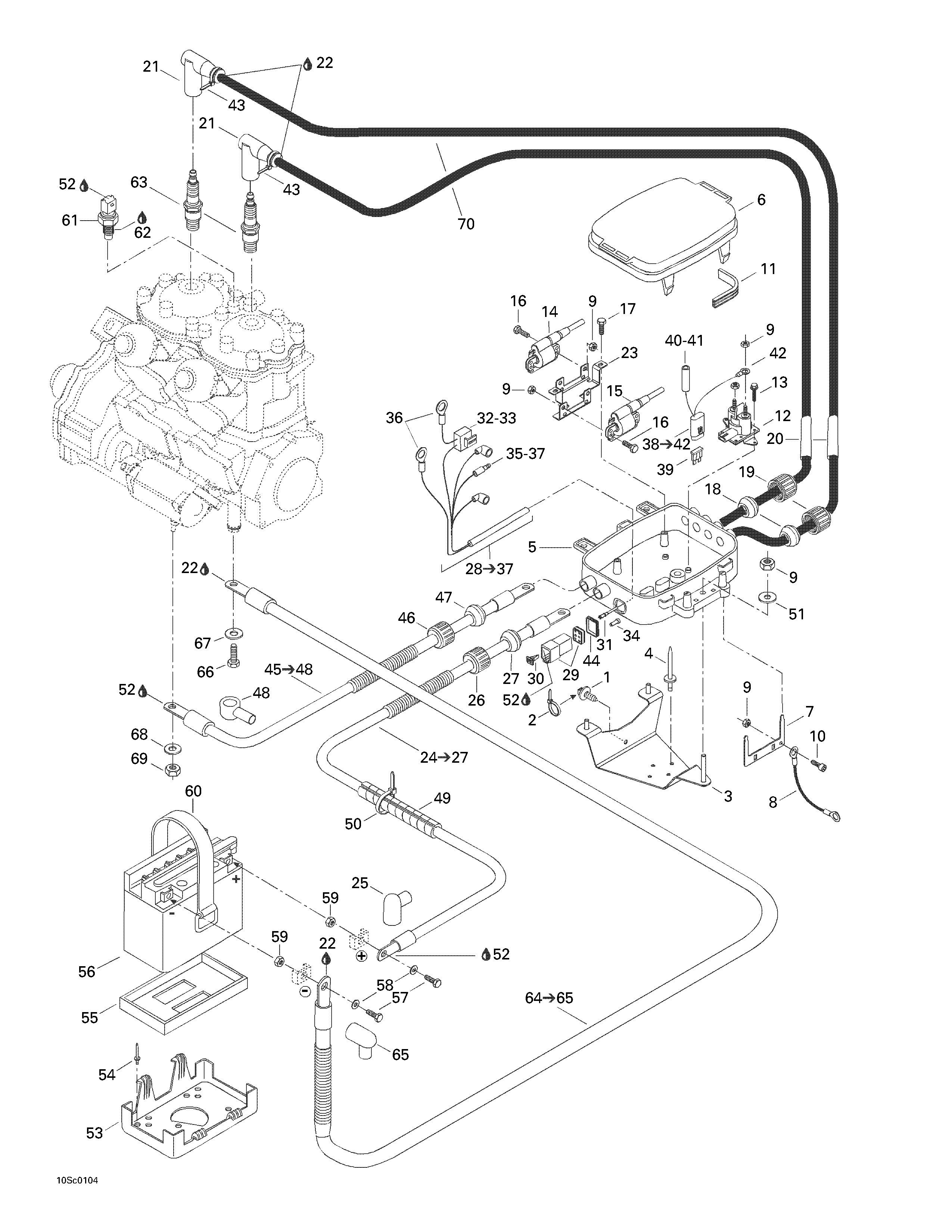

10- Rear Electrical Box для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1293730018 Dart MountDart Mount
-
2414115200 Tie Rap 180 mmTie Rap 180 mm
-
3278001426 Box Support Ass'yBox Support Ass'y
-
4293150037 Pop Rivet 3/16''Pop Rivet 3/16''
-
5278001425 BaseBase
-
6278001433 CoverCover
-
7278000732 Ground PlateGround Plate
-
8278001501 Ground WireGround Wire
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10205461060 Socket Head Screw M6 x 10Socket Head Screw M6 x 10
-
11278001173 GasketGasket
-
12278001376 Starter RelayStarter Relay
-
13210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
14278001416 Ignition Coil (MAG)Ignition Coil (MAG)
-
15278001414 Ignition Coil (PTO)Ignition Coil (PTO)
-
16207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
17209561640 Hex. Tapping ScrewHex. Tapping Screw
-
18278000682 Grommet (Gray)Grommet (Gray)
-
19278000100 Electric CapElectric Cap
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21278000237 Spark Plug CapSpark Plug Cap
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23278001421 Ignition Coil SupportIgnition Coil Support
-
24204470286 Battery Positive Cable (Red). Includes 24 - 27.Battery Positive Cable (Red). Includes 24 - 27.
-
25204470269 Boot (Red)Boot (Red)
-
26278000100 Electrical Box CapElectrical Box Cap
-
27278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
28278001423 Rear Electric Box Harness. Includes 28 - 37.Rear Electric Box Harness. Includes 28 - 37.
-
29270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
30278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
31278000631 Male TerminalMale Terminal
-
32278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
33278001114 Female TerminalFemale Terminal
-
34293000052 Sealing CapSealing Cap
-
35278000230 Male TerminalMale Terminal
-
36278000300 Open BarrelOpen Barrel
-
37278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
38278001212 Harness Fuse (15 Amperes). Includes 38 - 42.Harness Fuse (15 Amperes). Includes 38 - 42.
-
39278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
40278001009 Female TerminalFemale Terminal
-
41278001007 Insulating Sheath (Simple)Insulating Sheath (Simple)
-
42278000300 Open BarrelOpen Barrel
-
43293750002 Tie Rap 130 mmTie Rap 130 mm
-
44293200030 GasketGasket
-
45278001437 Starter Cable (Red). Includes 45 - 48.Starter Cable (Red). Includes 45 - 48.
-
46278000100 Electrical Box CapElectrical Box Cap
-
47278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
48278000020 Protector CapProtector Cap
-
49204050326 Split Loom 3/8'' (Meter)Split Loom 3/8'' (Meter)
-
50293750001 Tie Rap 94 mmTie Rap 94 mm
-
51234062600 Flat Washer 6 mmFlat Washer 6 mm
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53278001430 Battery SupportBattery Support
-
54293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
55278001234 Battery Lower PadBattery Lower Pad
-
56278000712 BatteryBattery
-
57211000045 Hex. ScrewHex. Screw
-
58211200018 Flat Washer 6 mmFlat Washer 6 mm
-
59211100022 Nut M6Nut M6
-
60293850021 StrapStrap
-
61278001016 Temperature SensorTemperature Sensor
-
62293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
63278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
64278001439 Battery Ground Cable. Includes 64 - 65.Battery Ground Cable. Includes 64 - 65.
-
66207302060 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
67234001600 Flat Washer 10 mmFlat Washer 10 mm
-
68234061600 Flat Washer 6 mmFlat Washer 6 mm
-
69232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
70278001268 Spark Plug WireSpark Plug Wire
