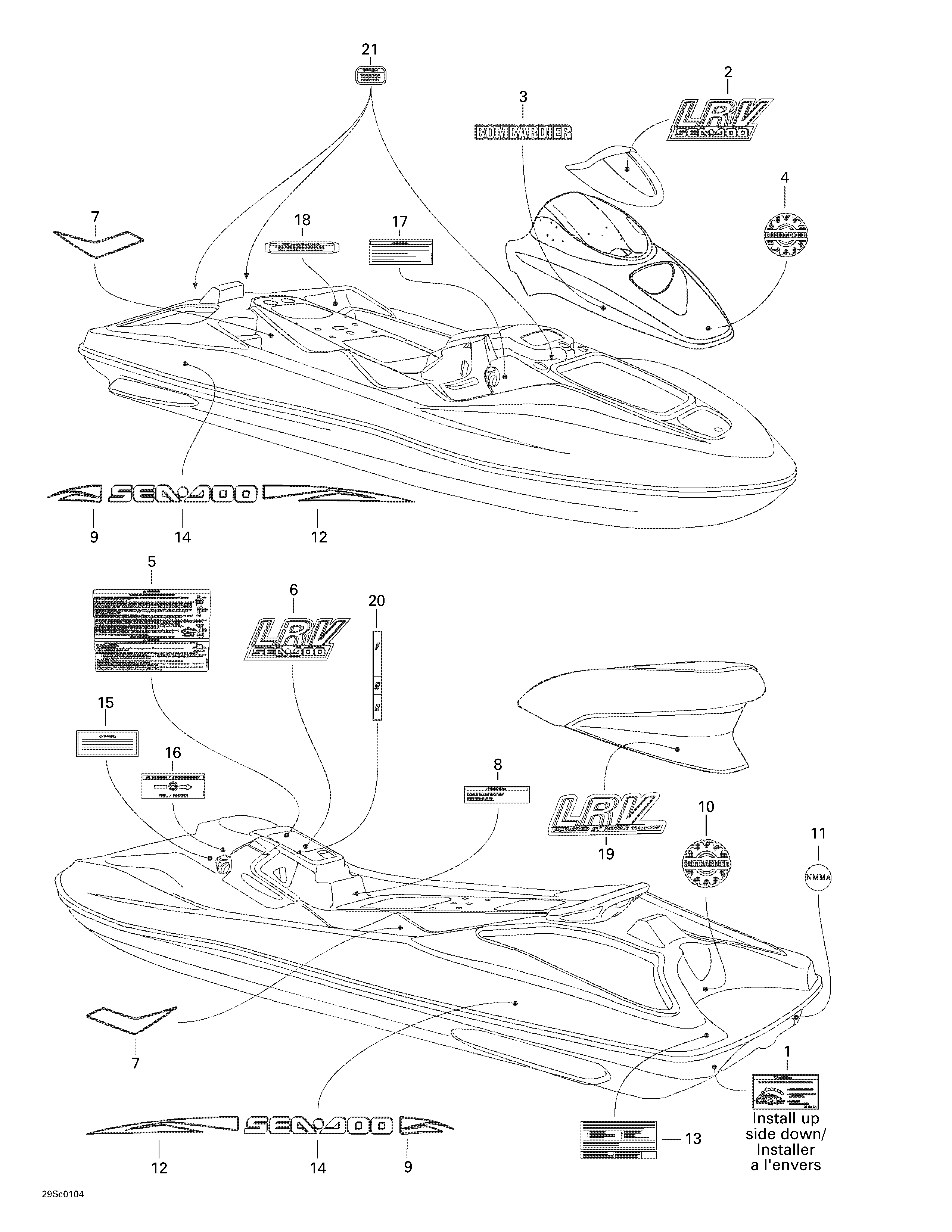

09- Decals для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1219900934 > Decal> Decal
-
2204900798 Decal Identification >Decal Identification >
-
3204900797 > Decal> Decal
-
4516000983 > Logo Decal> Logo Decal
-
5204900894 Warning LabelWarning Label
-
6204900800 Glove Box Decal >Glove Box Decal >
-
7204900792 R.H. Rear Decal (Starboard)R.H. Rear Decal (Starboard)
-
204900791 L.H. Rear Decal (Port)L.H. Rear Decal (Port)
-
8219900965 Warning Decal (Battery)Warning Decal (Battery)
-
9204900802 R.H. Fender Small Decal (Starboard)R.H. Fender Small Decal (Starboard)
-
204900794 L.H. Fender Small Decal (Port)L.H. Fender Small Decal (Port)
-
10219901180 > Logo Decal (Rear)> Logo Decal (Rear)
-
11204900627 > Decal> Decal
-
12204900801 R.H. Fender Large Decal (Starboard)R.H. Fender Large Decal (Starboard)
-
204900793 L.H. Side Fender Large Decal (Port)L.H. Side Fender Large Decal (Port)
-
13204900457 > Decal> Decal
-
14204900795 Logo >Logo >
-
15219901209 > Label> Label
-
16219901914 Warning Label (Fuel)Warning Label (Fuel)
-
17219901601 Warning Label (Oil)Warning Label (Oil)
-
18204900618 Warning LabelWarning Label
-
19204900796 > Logo> Logo
-
20204900799 Reverse DecalReverse Decal
-
21204900628 Warning Label. (Fuel Container Storage)Warning Label. (Fuel Container Storage)
