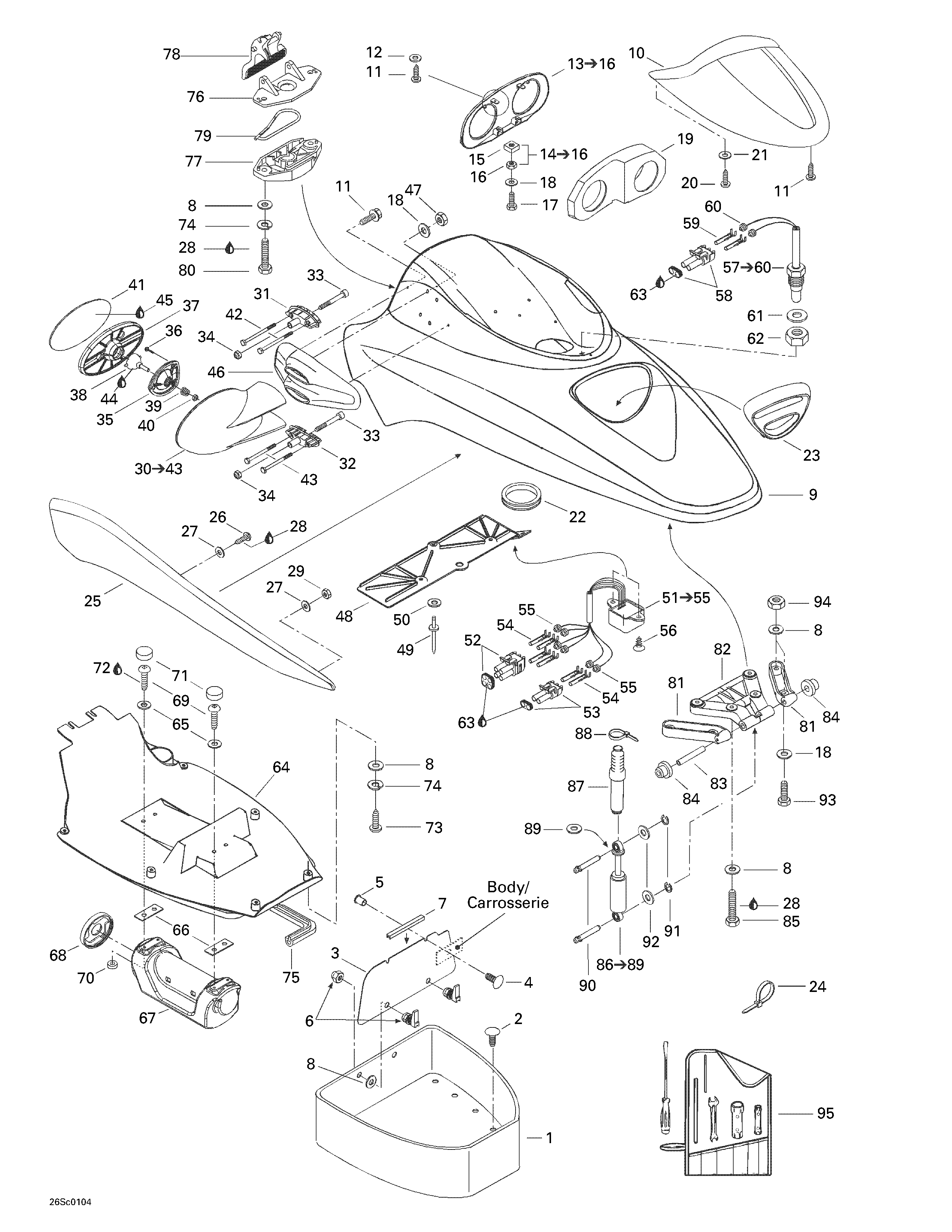

09- Front Storage Compartment для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1204050218 Front TrayFront Tray
-
2293730006 DartDart
-
3204630102 Front Access PanelFront Access Panel
-
4293730014 Dart (Black)Dart (Black)
-
5293720029 GrommetGrommet
-
6204050309 Latch Ass'yLatch Ass'y
-
7204070055 Black Trim (Meter)Black Trim (Meter)
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9204620200 Storage Cover UpperStorage Cover Upper
-
10204620201 DeflectorDeflector
-
11241141660 Screw K40 x 16Screw K40 x 16
-
12234041600 Flat Washer 4 mmFlat Washer 4 mm
-
13269500588 Dash Board. Includes 13 - 16.Dash Board. Includes 13 - 16.
-
14269500725 Nut Housing Ass'y. Includes 14 - 16.Nut Housing Ass'y. Includes 14 - 16.
-
15269500252 Nut HousingNut Housing
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17207162560 Screw Hex. M6 x 25Screw Hex. M6 x 25
-
18234062600 Flat Washer 6 mmFlat Washer 6 mm
-
19269500585 Gauge SupportGauge Support
-
20211000098 ScrewScrew
-
21211200007 Flat WasherFlat Washer
-
22570276900 Rubber RingRubber Ring
-
23269500746 Intake GrillIntake Grill
-
24293750002 Tie Rap 130 mmTie Rap 130 mm
-
25269500712 L.H. MouldingL.H. Moulding
-
269500713 R.H. MouldingR.H. Moulding
-
26205461660 Head Socket Screw M6 x 16Head Socket Screw M6 x 16
-
27234062600 Flat Washer 6 mmFlat Washer 6 mm
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29204100060 Hex. Jam NutHex. Jam Nut
-
30204620203 R.H. Mirror Ass'y. Includes 30 - 43.R.H. Mirror Ass'y. Includes 30 - 43.
-
204620206 L.H. Mirror Ass'yL.H. Mirror Ass'y
-
31269500546 AdaptorAdaptor
-
32269500547 AdaptorAdaptor
-
33205087560 Socket Head Screw M8 x 75Socket Head Screw M8 x 75
-
34232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
36241141660 Screw K40 x 16Screw K40 x 16
-
38269500079 Ball JointBall Joint
-
39269500453 SpringSpring
-
40232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
41269500454 MirrorMirror
-
42207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
43207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
44293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
45296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
46204620207 R.H. Support (Mirror)R.H. Support (Mirror)
-
204620209 L.H. Support (Mirror)L.H. Support (Mirror)
-
47232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
48278000857 Mounting PlateMounting Plate
-
49293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
50234051500 Flat Washer 5 mmFlat Washer 5 mm
-
51278001243 Compass. Includes 51 - 55.Compass. Includes 51 - 55.
-
52278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
53278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
54278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
55278000218 Wire Seal (16 and 18 Gauge-green)Wire Seal (16 and 18 Gauge-green)
-
56293730016 DartDart
-
57278000851 Temperature Sensor. Includes 57 - 60.Temperature Sensor. Includes 57 - 60.
-
58278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
59278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
60278000218 Wire Seal (16 and 18 Gauge - Green)Wire Seal (16 and 18 Gauge - Green)
-
61234000600 Flat Washer 10 mmFlat Washer 10 mm
-
62250100004 Hex. Nut M10Hex. Nut M10
-
63293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
64269500660 Lower Storage CoverLower Storage Cover
-
65211200019 Flat WasherFlat Washer
-
66293250037 GasketGasket
-
67269500606 Extinguisher HousingExtinguisher Housing
-
68269500603 Extinguisher Housing CoverExtinguisher Housing Cover
-
69208661660 Phillips Screw M6 x 16Phillips Screw M6 x 16
-
71204620183 Cap Screw CoverCap Screw Cover
-
72293800040 Loctite 425Loctite 425
-
73208661660 Phillips Screw M6 x 16Phillips Screw M6 x 16
-
74234161601 Lock Washer 6 mmLock Washer 6 mm
-
75293200060 Seal Neoprene (Meter)Seal Neoprene (Meter)
-
76269700020 Latch CoverLatch Cover
-
77269000015 Latch BaseLatch Base
-
78269500610 Latch LeverLatch Lever
-
79269700017 SpringSpring
-
80207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
81269700022111 R.H. HingeR.H. Hinge
-
269700023111 L.H. HingeL.H. Hinge
-
82269700038 Hinge CoverHinge Cover
-
83269700024 AxleAxle
-
84293350016 CushionCushion
-
85207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
86269500261 Gas Shock Ass'y. Includes 86 - 89.Gas Shock Ass'y. Includes 86 - 89.
-
87291000919 BellowBellow
-
88293750001 Tie Rap 94 mmTie Rap 94 mm
-
89211200034 Washer (Aluminum)Washer (Aluminum)
-
90211400006 Short PinShort Pin
-
91293370008 CirclipCirclip
-
92234081600 Flat Washer 8 mmFlat Washer 8 mm
-
93207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
94232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
95295000066 Tool KitTool Kit
