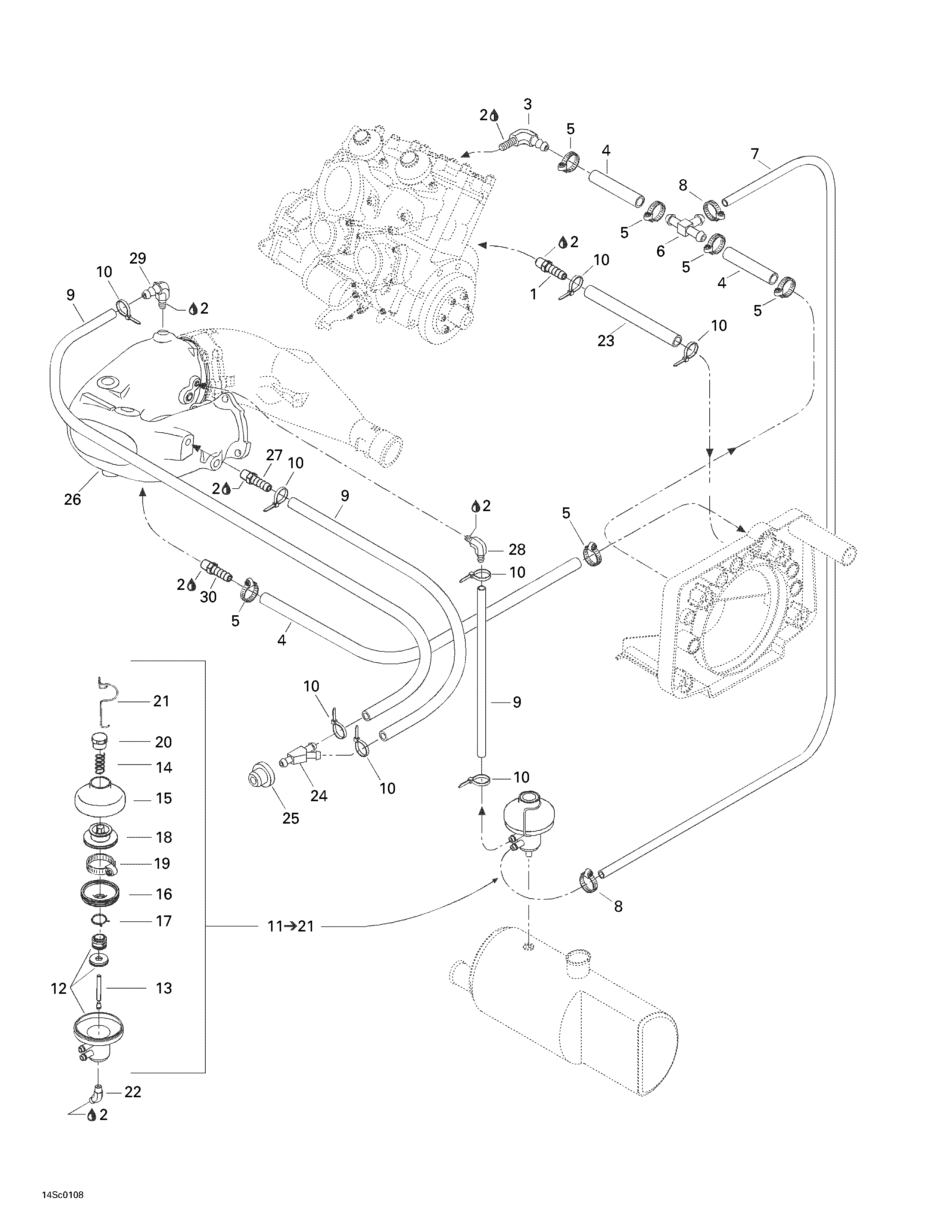

01- Cooling System для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1293710066 Male ConnectorMale Connector
-
2293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
3293700023 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
4276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
5293650037 Tridon ClampTridon Clamp
-
6293710025 T-FittingT-Fitting
-
7275500345 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
8293650027 Tridon ClampTridon Clamp
-
9276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
10293750001 Tie Rap 94 mmTie Rap 94 mm
-
11274000865 Pressure Regulator Ass'y. Includes 11 - 21.Pressure Regulator Ass'y. Includes 11 - 21.
-
13274000423 Feeding RodFeeding Rod
-
14274000382 SpringSpring
-
15420911552 Valve CoverValve Cover
-
16420260721 BellowsBellows
-
17420838190 ClampClamp
-
18420854440 Exhaust ValveExhaust Valve
-
19293650065 ClampClamp
-
20420241221 Adjustment ScrewAdjustment Screw
-
21290838083 Spring ClipSpring Clip
-
22293700033 Male ConnectorMale Connector
-
23275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
24293710059 Y-FittingY-Fitting
-
25293720029 GrommetGrommet
-
26274000928 Head PipeHead Pipe
-
27293710037 Male ConnectorMale Connector
-
28293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
29293710048 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
30293710021 Male ConnectorMale Connector
