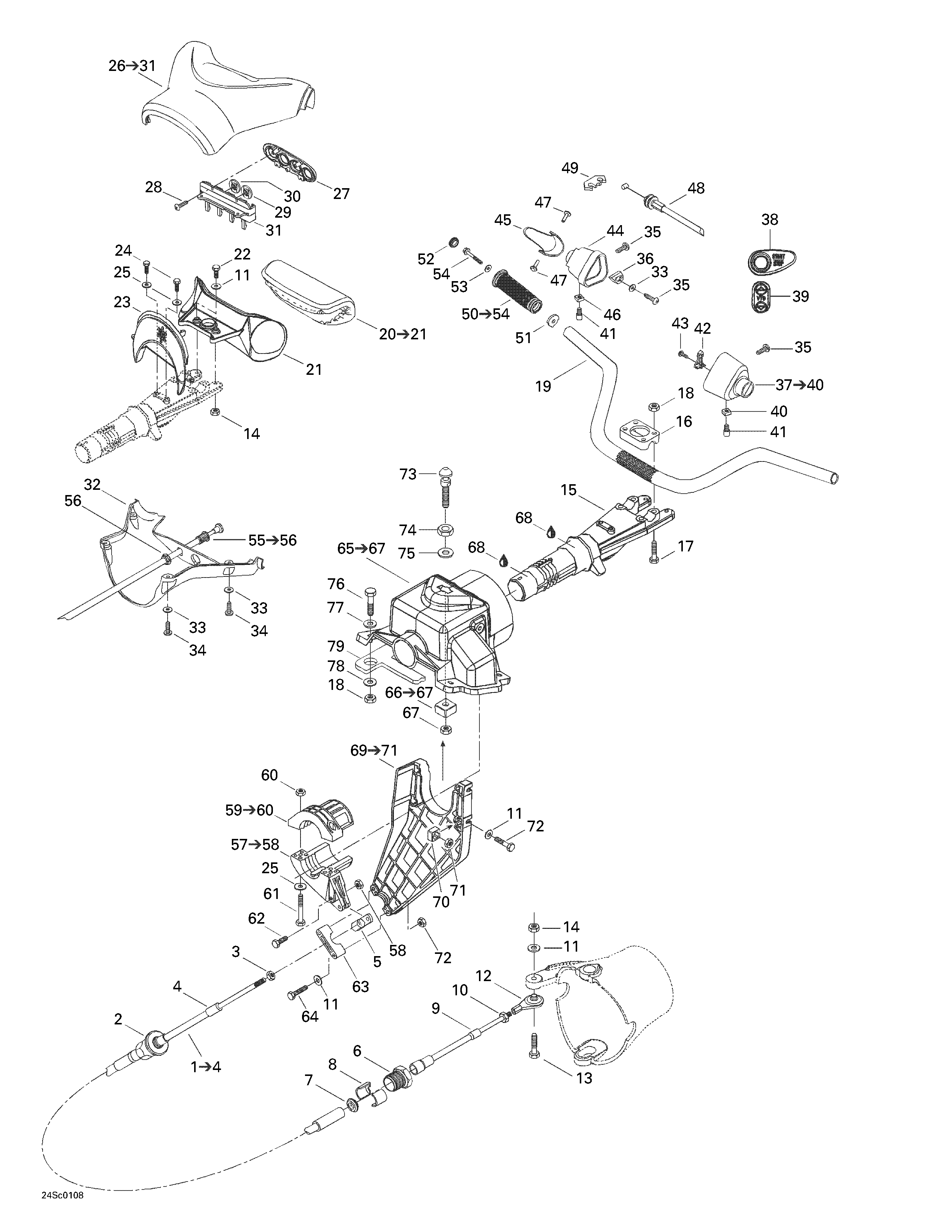

07- Steering System для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1277001011 Steering Cable Ass'y. Includes 1 - 4.Steering Cable Ass'y. Includes 1 - 4.
-
2277000782 Knob AdjusterKnob Adjuster
-
3211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
4277000441 Terminal WiperTerminal Wiper
-
5277000774 JointJoint
-
6277000784 Cable LockCable Lock
-
7293830063 Rubber WasherRubber Washer
-
8277000783 Half RingHalf Ring
-
9277000441 Terminal WiperTerminal Wiper
-
10211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
11234061600 Flat Washer 6 mmFlat Washer 6 mm
-
12277000775 Ball JointBall Joint
-
13207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
14232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
15277000562400 Steering StemSteering Stem
-
16277000142 Steering ClampSteering Clamp
-
17207085060 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
18232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
19277000824 Handle BarHandle Bar
-
20277000931 Handle Pad (Mazatlan Blue). Includes 20 - 21. RX (BLUE).Handle Pad (Mazatlan Blue). Includes 20 - 21. RX (BLUE).
-
277000891 Handle Pad (Metallic Pewter). RX (YELLOW).Handle Pad (Metallic Pewter). RX (YELLOW).
-
21277000687 Pad SupportPad Support
-
22207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
23277000549 Plate (Black)Plate (Black)
-
24211000036 Hex. Forming ScrewHex. Forming Screw
-
25234062600 Flat Washer 6 mmFlat Washer 6 mm
-
26277000753 Upper Steering Cover. Includes 26 - 31.Upper Steering Cover. Includes 26 - 31.
-
27277000688 Retainer PlateRetainer Plate
-
28241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
29293000079 > Knob> Knob
-
30293000080 > Knob> Knob
-
31277000563 Switch SupportSwitch Support
-
32277000625 Lower Steering CoverLower Steering Cover
-
33234051600 Flat Washer 5 mmFlat Washer 5 mm
-
34241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
35209630960 Tapping Phillips ScrewTapping Phillips Screw
-
36293450153 InsertInsert
-
37277000877 LH Handle Housing Ass'y. Includes 37 - 40.LH Handle Housing Ass'y. Includes 37 - 40.
-
38277000306 Switch KnobSwitch Knob
-
39277000497 VTS KnobVTS Knob
-
40232860600 Square Nut M6Square Nut M6
-
41250000036 Set Socket Screw M6 x 16Set Socket Screw M6 x 16
-
42277000845 Retainer PlateRetainer Plate
-
43209631360 Phillips Tapping ScrewPhillips Tapping Screw
-
44277000872 Throttle Handle HousingThrottle Handle Housing
-
45277000214 Throttle HandleThrottle Handle
-
46232860600 Square Nut M6Square Nut M6
-
47277000381 PinPin
-
48277000915 Throttle CableThrottle Cable
-
49277000279 Lock TabLock Tab
-
50295500691 Handle Grip Kit. Includes 50 - 54.Handle Grip Kit. Includes 50 - 54.
-
52277000203 Grip Cap (Black)Grip Cap (Black)
-
53234062600 Flat Washer 6 mmFlat Washer 6 mm
-
54250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
55270000383 Choke Cable. Includes 55 - 56.Choke Cable. Includes 55 - 56.
-
56211100030 Hex. NutHex. Nut
-
57277000518 Steering Stem Arm. Includes 57 - 58.Steering Stem Arm. Includes 57 - 58.
-
58232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
59277000519 Thrust Arm. Includes 59 - 60.Thrust Arm. Includes 59 - 60.
-
60232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
61207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
62211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
63277000162 Thrust SupportThrust Support
-
64207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
65277000515 Steering Support. Includes 65 - 67.Steering Support. Includes 65 - 67.
-
66271000598 Nut Housing. Includes 66 - 67.Nut Housing. Includes 66 - 67.
-
67232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
68293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
69277000516 Cable Support. Includes 69 - 71.Cable Support. Includes 69 - 71.
-
70269500252 Nut HousingNut Housing
-
71232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
72207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
73291000689 Stud LatchStud Latch
-
74232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
75234002600 Flat Washer 10 mmFlat Washer 10 mm
-
76207083560 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
77234081600 Flat Washer 8 mmFlat Washer 8 mm
-
78234082600 Flat Washer 8 mmFlat Washer 8 mm
-
79293250068 GasketGasket
