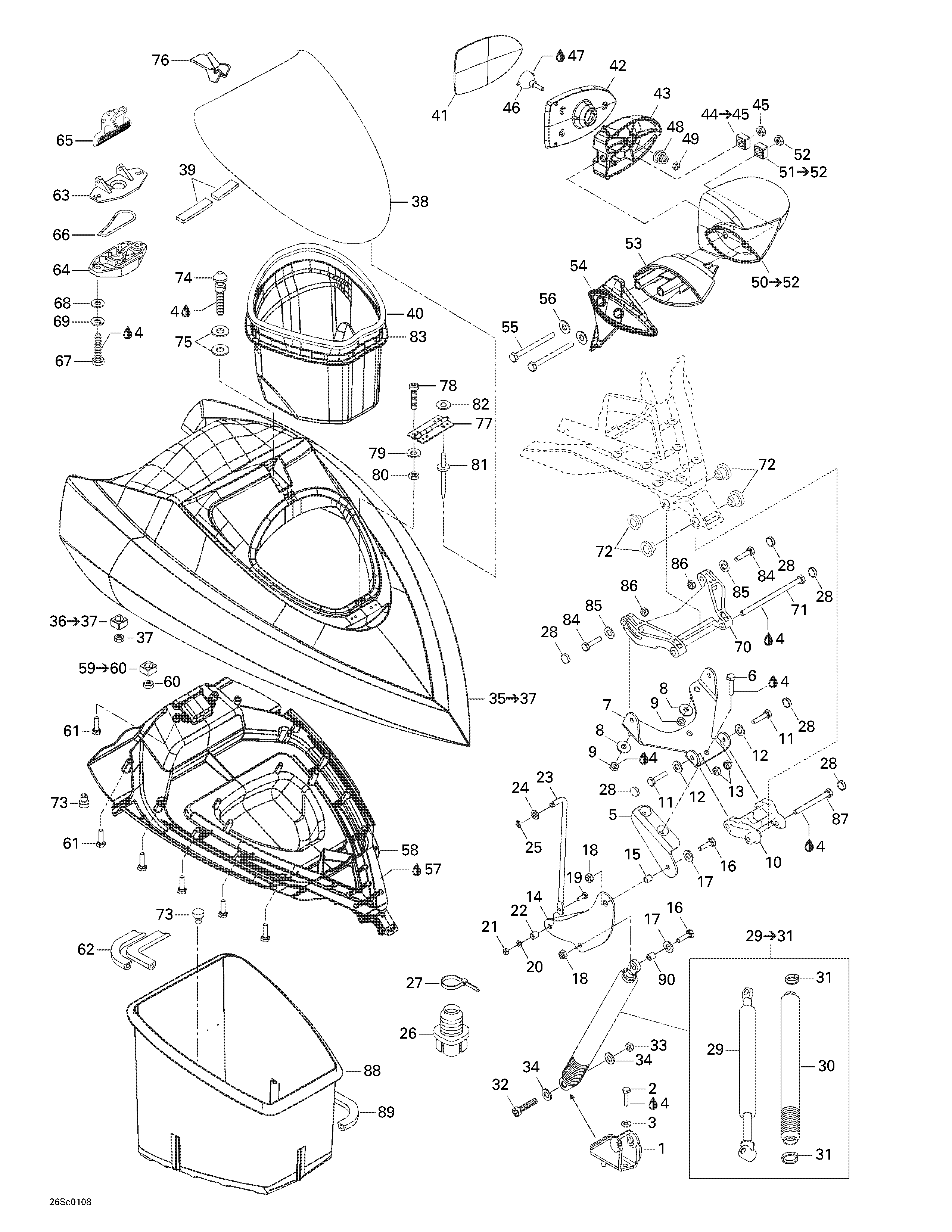

09- Front Storage Compartment для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1291001013 Shock SupportShock Support
-
2207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
3234161601 Lock Washer 6 mmLock Washer 6 mm
-
4293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
5269500846 Support LeverSupport Lever
-
6207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
7269500708 Pivot SupportPivot Support
-
8234062600 Flat Washer 6 mmFlat Washer 6 mm
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10269500704 Front ArmFront Arm
-
11211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
12234061600 Flat Washer 6 mmFlat Washer 6 mm
-
13232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14269500840 LeverLever
-
15291000536 SpacerSpacer
-
16207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
17234062600 Flat Washer 6 mmFlat Washer 6 mm
-
18232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
19207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
20234041600 Flat Washer 4 mmFlat Washer 4 mm
-
21232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
22269500841 SpacerSpacer
-
23269500842 RodRod
-
24234061600 Flat Washer 6 mmFlat Washer 6 mm
-
25293370005 Circlip 6 mmCirclip 6 mm
-
26293720063 Cable GrommetCable Grommet
-
27414115200 Tie RapTie Rap
-
28414436900 Snap Cap (Black)Snap Cap (Black)
-
29269500843 Gaz Shock Ass'y. Includes 29 - 31.Gaz Shock Ass'y. Includes 29 - 31.
-
30269500845 BellowBellow
-
31293750001 Tie Rap 94 mmTie Rap 94 mm
-
32205564560 Socket Head Screw M6 x 45 (Scotch Grip)Socket Head Screw M6 x 45 (Scotch Grip)
-
33232361600 Hex. Nut M6Hex. Nut M6
-
34234062600 Flat Washer 6 mmFlat Washer 6 mm
-
35269500891 Cover (Mazatlan Blue). Includes 35 - 37. RX (BLUE).Cover (Mazatlan Blue). Includes 35 - 37. RX (BLUE).
-
269500903 Cover (Metallic Pewter). RX (YELLOW).Cover (Metallic Pewter). RX (YELLOW).
-
36269500252 Nut Housing Ass'y. Includes 36 - 37.Nut Housing Ass'y. Includes 36 - 37.
-
37232061600 Hex. Nut M6Hex. Nut M6
-
38269500902 Access Cover (Mazatlan Blue). RX (BLUE).Access Cover (Mazatlan Blue). RX (BLUE).
-
269500700 Access Cover (Metallic Pewter). RX (YELLOW).Access Cover (Metallic Pewter). RX (YELLOW).
-
39293200003 Tray Seal (Meter)Tray Seal (Meter)
-
40293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
41269500687 R.H. MirrorR.H. Mirror
-
269500788 LH MirrorLH Mirror
-
42269500697 Frame MirrorFrame Mirror
-
43269500807 Housing SupportHousing Support
-
44269500813 Nut Housing Ass'y. Includes 44 - 45.Nut Housing Ass'y. Includes 44 - 45.
-
45232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
46269500079 Mirror Ball JointMirror Ball Joint
-
47293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
48269500453 Mirror SpringMirror Spring
-
49232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
50269501893 R.H. Mirror Shell (Mazatlan Blue). Includes 50 - 52. RX (BLUE).R.H. Mirror Shell (Mazatlan Blue). Includes 50 - 52. RX (BLUE).
-
269501023 R.H. Mirror Shell (Metallic Pewter). RX (YELLOW).R.H. Mirror Shell (Metallic Pewter). RX (YELLOW).
-
269500895 LH Mirror Shell (Mazatlan Blue). RX (BLUE).LH Mirror Shell (Mazatlan Blue). RX (BLUE).
-
269501026 LH Mirror Shell (Metallic Pewter). RX (YELLOW).LH Mirror Shell (Metallic Pewter). RX (YELLOW).
-
51269500813 Nut Housing Ass'y. Includes 51 - 52.Nut Housing Ass'y. Includes 51 - 52.
-
52232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
53269500897 R.H. Mirror Support (Mazatlan Blue). RX (BLUE).R.H. Mirror Support (Mazatlan Blue). RX (BLUE).
-
269500818 R.H. Mirror Support (Metallic Pewter). RX (YELLOW).R.H. Mirror Support (Metallic Pewter). RX (YELLOW).
-
269500899 LH Mirror Support (Mazatlan Blue). RX (BLUE).LH Mirror Support (Mazatlan Blue). RX (BLUE).
-
269500819 LH Mirror Support (Metallic Pewter). RX (YELLOW).LH Mirror Support (Metallic Pewter). RX (YELLOW).
-
54269500792 R.H. SpacerR.H. Spacer
-
269500793 LH SpacerLH Spacer
-
55230082060 Hex. Screw M8 x 120Hex. Screw M8 x 120
-
56234082600 Flat Washer 8 mmFlat Washer 8 mm
-
57413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
58269500702 Lower Strorage CoverLower Strorage Cover
-
59269500252 Nut Housing Ass'y. Includes 59 - 60.Nut Housing Ass'y. Includes 59 - 60.
-
60232061600 Hex. Nut M6Hex. Nut M6
-
61241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
62293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
63269700020 Latch CoverLatch Cover
-
64269000015 Latch BaseLatch Base
-
65269000016 Latch LeverLatch Lever
-
66269700017 Latch SpringLatch Spring
-
67207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
68234061600 Flat Washer 6 mmFlat Washer 6 mm
-
69234161601 Lock Washer 6 mmLock Washer 6 mm
-
70269500705 Rear ArmRear Arm
-
71230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
72269500706 SleeveSleeve
-
73293830005 Rubber PlugRubber Plug
-
74291001242 Latch StudLatch Stud
-
75234062600 Flat Washer 6 mmFlat Washer 6 mm
-
76269500530 LatchLatch
-
77269500338 HingeHinge
-
78205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
79234052600 Flat Washer 5 mmFlat Washer 5 mm
-
80232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
81204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
82234052600 Flat Washer 5 mmFlat Washer 5 mm
-
83269500339 Gloves BoxGloves Box
-
84211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
85234061600 Flat Washer 6 mmFlat Washer 6 mm
-
86232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
87207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
88269500691 Strorage TrayStrorage Tray
-
89293200020 Tray Seal (Meter)Tray Seal (Meter)
