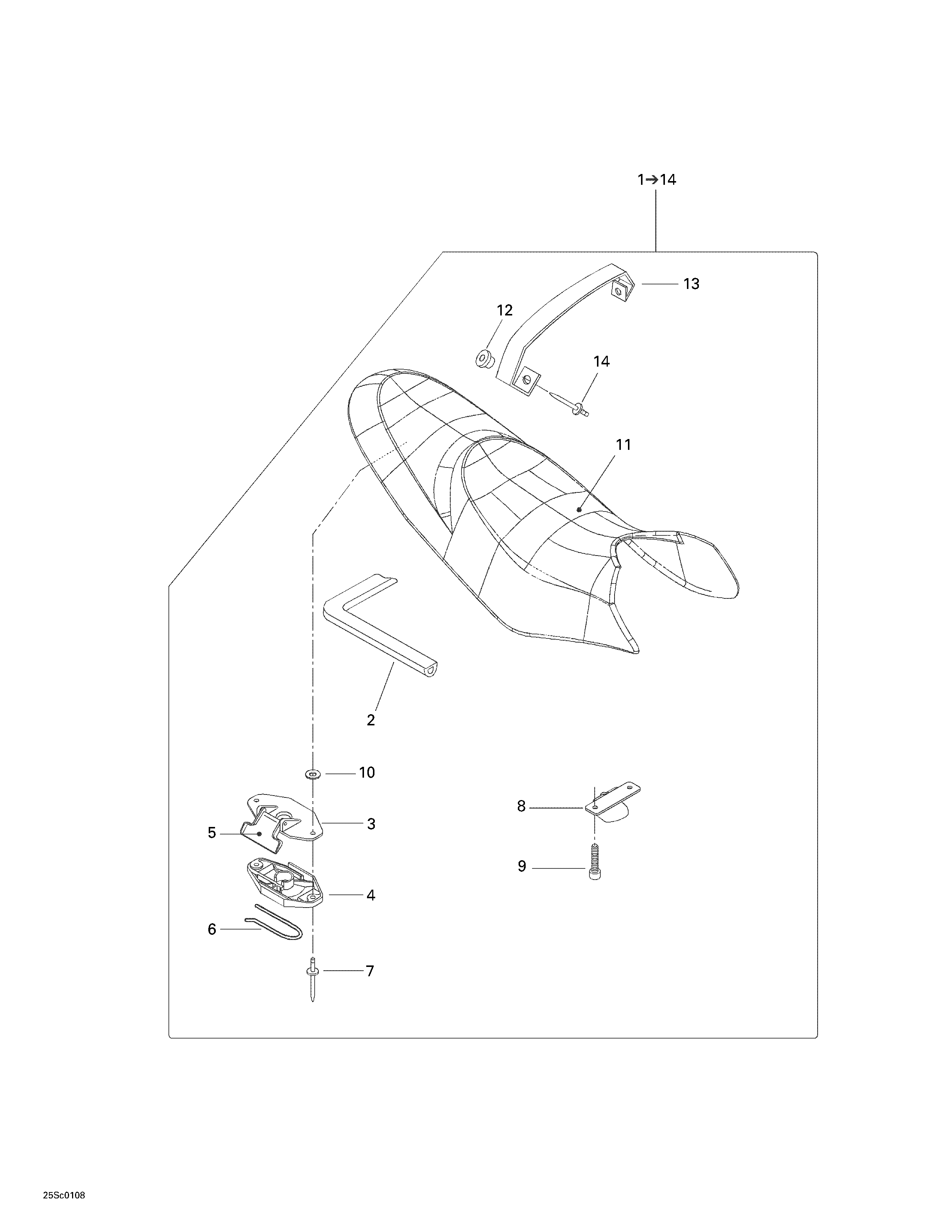

09- Seat для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1269000703 Seat Ass'y. Includes 1 - 14. RX (BLUE).Seat Ass'y. Includes 1 - 14. RX (BLUE).
-
269000578 Seat Ass'y. RX (YELLOW).Seat Ass'y. RX (YELLOW).
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700020 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269000016 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8291001485 Seat HookSeat Hook
-
9205961060 Socket Head Screw M6 x 10 (Scotch Grip)Socket Head Screw M6 x 10 (Scotch Grip)
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11269000704 Cover and Foam. RX (BLUE).Cover and Foam. RX (BLUE).
-
269000621 Cover and Foam. RX (YELLOW).Cover and Foam. RX (YELLOW).
-
12293720067 GrommetGrommet
-
13269000705 Seat Strap. RX (BLUE).Seat Strap. RX (BLUE).
-
269000622 Seat Strap. RX (YELLOW).Seat Strap. RX (YELLOW).
-
14293150078 Pop Rivet 1/4''Pop Rivet 1/4''
