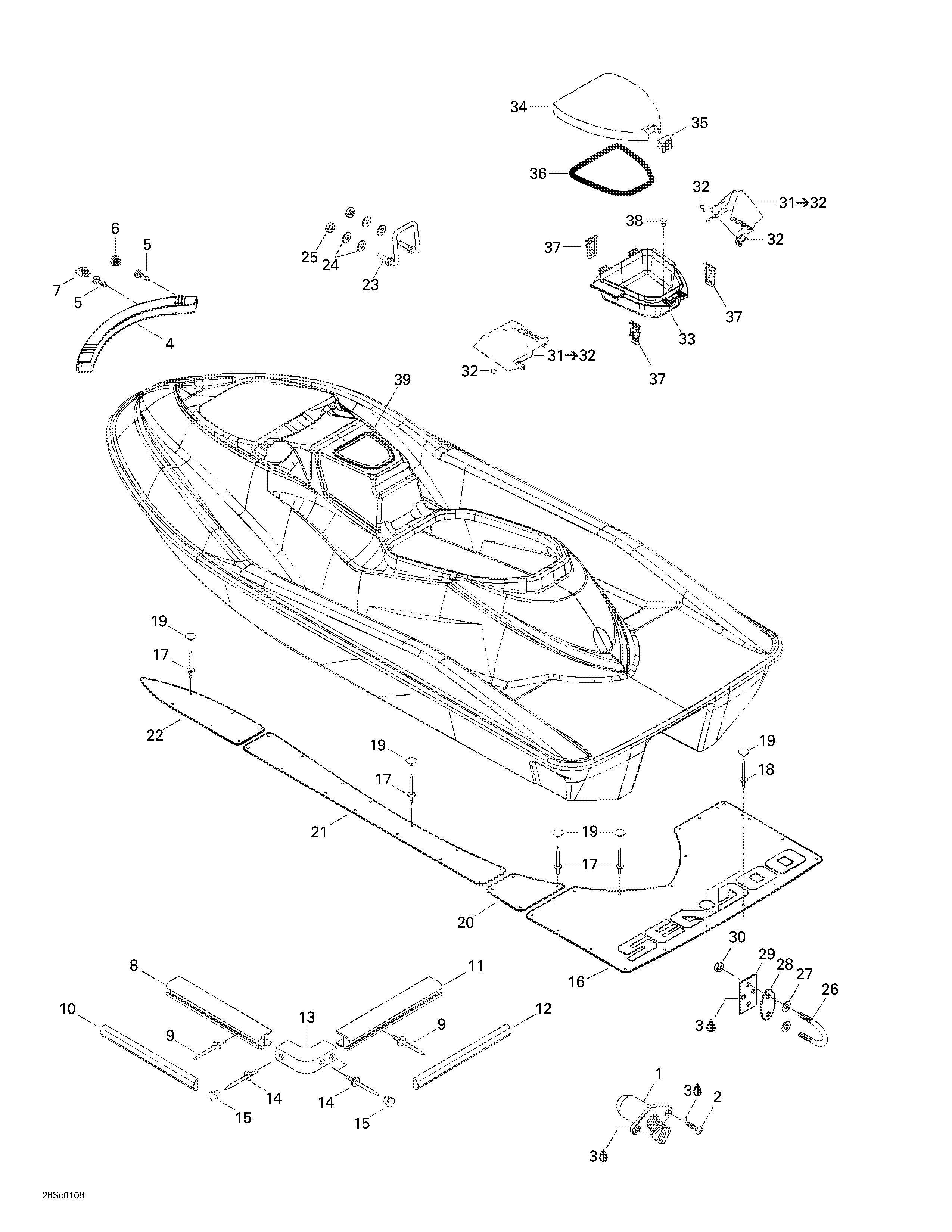

09- Body для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1292000685 Drain PlugDrain Plug
-
2211000021 Phillips ScrewPhillips Screw
-
3296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
4291001035 Nose Bumper (Black)Nose Bumper (Black)
-
5211000037 Phillips Screw 10-14 x 7/8''Phillips Screw 10-14 x 7/8''
-
6291001519 Bumper Plug (Black)Bumper Plug (Black)
-
7291001040 Bumper Plug (Black)Bumper Plug (Black)
-
8291001481 Side Bumper (Black)Side Bumper (Black)
-
9293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
10291001539 Side Bumper Trim (Blue). RX (BLUE).Side Bumper Trim (Blue). RX (BLUE).
-
291001536 Side Bumper Trim (Yellow). RX (YELLOW).Side Bumper Trim (Yellow). RX (YELLOW).
-
11291001483 Rear Bumper (Black)Rear Bumper (Black)
-
12291001540 Rear Bumper Trim (Blue). RX (BLUE).Rear Bumper Trim (Blue). RX (BLUE).
-
291001537 Rear Bumper Trim (Yellow). RX (YELLOW).Rear Bumper Trim (Yellow). RX (YELLOW).
-
13291001505 Bumper Corner (Black)Bumper Corner (Black)
-
14293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
15291000339 Bumper Plug (Black)Bumper Plug (Black)
-
16291001381 Center Rear CarpetCenter Rear Carpet
-
17293150036 Pop Rivet 1/8''Pop Rivet 1/8''
-
18293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
19293000014 Snap Cap (Black)Snap Cap (Black)
-
20291001464 R.H. Rear CarpetR.H. Rear Carpet
-
291001465 LH Rear CarpetLH Rear Carpet
-
21291001382 R.H. Center Carpet (Black)R.H. Center Carpet (Black)
-
291001383 LH Center Carpet (Black)LH Center Carpet (Black)
-
22291001384 R.H. Front Carpet (Black)R.H. Front Carpet (Black)
-
291001385 LH Front Carpet (Black)LH Front Carpet (Black)
-
23291001436 U-ClampU-Clamp
-
24234062600 Flat Washer 6 mmFlat Washer 6 mm
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26292000011 U-ClampU-Clamp
-
27293050001 WasherWasher
-
28291001386 Finition Plate (Black)Finition Plate (Black)
-
29291001387 Retainer PlateRetainer Plate
-
30232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
31291001649 R.H. Grill Ass'y (Black). Includes 31 - 32.R.H. Grill Ass'y (Black). Includes 31 - 32.
-
291001650 LH Grill Ass'y (Black)LH Grill Ass'y (Black)
-
32293730010 Dard (Black)Dard (Black)
-
33269500717 Gloves BoxGloves Box
-
34269500928 Box DoorBox Door
-
35269500719 LatchLatch
-
36293250100 GasketGasket
-
37269500820 Retainer LatchRetainer Latch
-
38293830005 Rubber PlugRubber Plug
-
39293250099 GasketGasket
