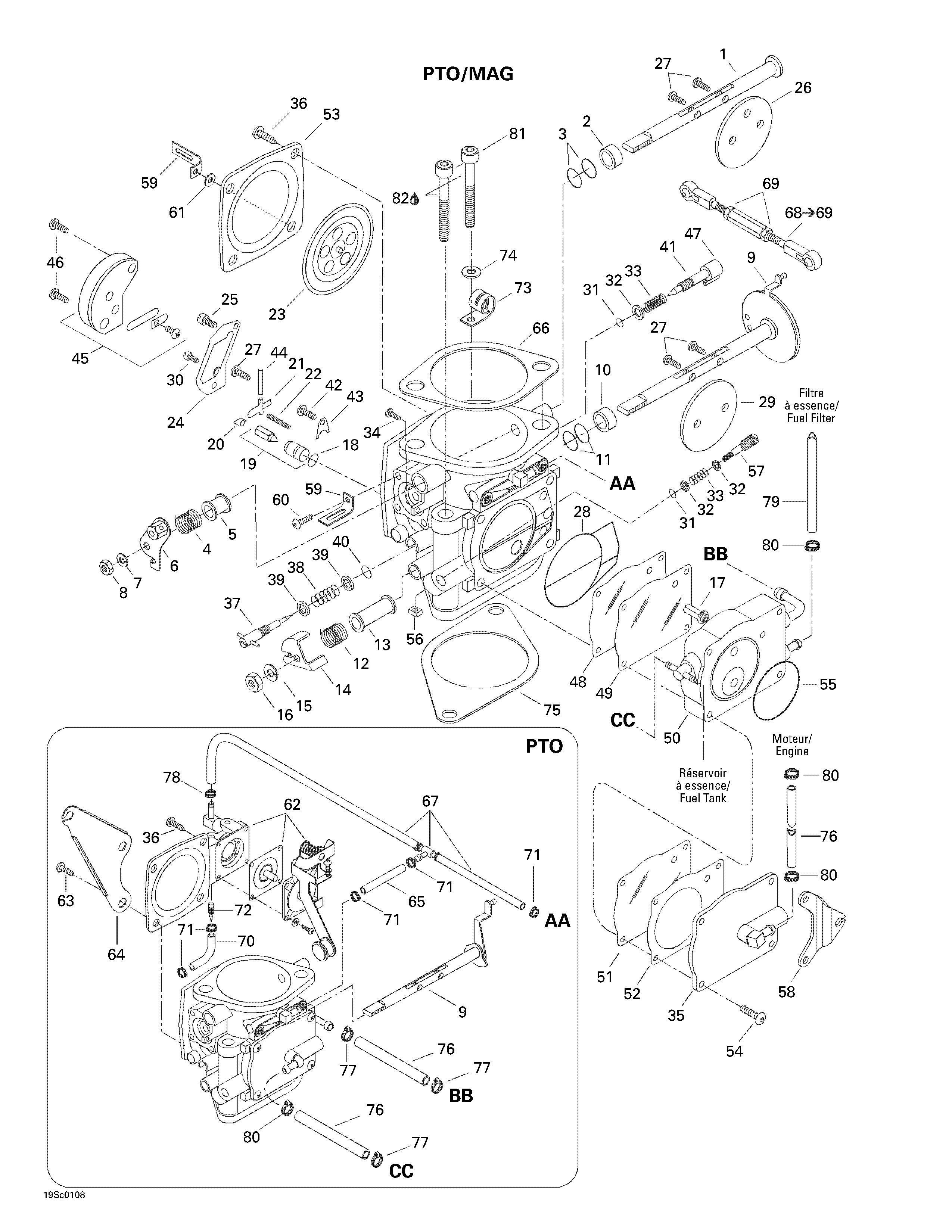

02- Carburetors для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1270500790 Carburetor BN46I-42-14 (MAG Side). Includes 1 - 65.Carburetor BN46I-42-14 (MAG Side). Includes 1 - 65.
-
270500417 Carburetor BN46I-42-12 (PTO Side)Carburetor BN46I-42-12 (PTO Side)
-
2270500239 RingRing
-
3270500234 Sealing RingSealing Ring
-
4270500382 SpringSpring
-
5270500381 RingRing
-
6270500431 Choke Lever Ass'yChoke Lever Ass'y
-
7270500230 Spring WasherSpring Washer
-
8270500229 NutNut
-
10270500353 Ring (MAG)Ring (MAG)
-
270500435 Ring (PTO)Ring (PTO)
-
11270500222 Sealing RingSealing Ring
-
12270500379 Spring (MAG)Spring (MAG)
-
270500413 Spring (PTO)Spring (PTO)
-
13270500378 RingRing
-
14270500436 Throttle Lever (MAG)Throttle Lever (MAG)
-
270500412 Throttle Lever (PTO)Throttle Lever (PTO)
-
15270500011 Spring WasherSpring Washer
-
16270500376 NutNut
-
17270500115 Fuel FilterFuel Filter
-
18270500127 O-RingO-Ring
-
19270500208 Needle Valve 2.0Needle Valve 2.0
-
20270500129 ClipClip
-
21270500128 Needle Valve LeverNeedle Valve Lever
-
22270500313 SpringSpring
-
23270500132 Diaphragm Ass'yDiaphragm Ass'y
-
24270500131 GasketGasket
-
25270500371 Main Jet 162.5Main Jet 162.5
-
27270500156 Screw and Spring WasherScrew and Spring Washer
-
28270500370 O-RingO-Ring
-
30270500427 Pilot Jet 75.0Pilot Jet 75.0
-
31270500144 O-Ring (MAG)O-Ring (MAG)
-
270500144 O-Ring (PTO)O-Ring (PTO)
-
32270500136 Washer (MAG)Washer (MAG)
-
270500136 Washer (PTO)Washer (PTO)
-
33270500091 Spring (MAG)Spring (MAG)
-
270500091 Spring (PTO)Spring (PTO)
-
34270500228 ScrewScrew
-
35270500409 Pump Cover (MAG)Pump Cover (MAG)
-
270500405 Pump Cover (PTO)Pump Cover (PTO)
-
36270500243 Screw (MAG)Screw (MAG)
-
270500322 Screw (PTO)Screw (PTO)
-
37270500020 Idle Adjusting ScrewIdle Adjusting Screw
-
38270500019 SpringSpring
-
39270500018 WasherWasher
-
40270500119 O-RingO-Ring
-
41270500113 Adjuster ScrewAdjuster Screw
-
42270500155 Screw and Spring WasherScrew and Spring Washer
-
43270500125 PlatePlate
-
44270500038 PinPin
-
45270500124 Valve Ass'yValve Ass'y
-
46270500123 ScrewScrew
-
47270500154 CapCap
-
48270500369 Diaphragm (MAG)Diaphragm (MAG)
-
49270500368 Diaphragm (MAG)Diaphragm (MAG)
-
50270500439 Body Pump Ass'y (MAG)Body Pump Ass'y (MAG)
-
51270500366 Diaphragm (MAG)Diaphragm (MAG)
-
52270500365 Gasket (MAG)Gasket (MAG)
-
53270500133 Cover (MAG)Cover (MAG)
-
54270500303 Screw and Washer (MAG)Screw and Washer (MAG)
-
55270500363 O-Ring (MAG)O-Ring (MAG)
-
56270500249 Nut (MAG)Nut (MAG)
-
57270500288 Adjuster Screw (MAG)Adjuster Screw (MAG)
-
58270500440 Cable Support (MAG)Cable Support (MAG)
-
59270500359 Plate (MAG)Plate (MAG)
-
60270500358 Screw (MAG)Screw (MAG)
-
61270500402 Washer (MAG)Washer (MAG)
-
62270500433 Diaphragm Cover (PTO)Diaphragm Cover (PTO)
-
63270500238 Screw (PTO)Screw (PTO)
-
64270500403 Bracket (PTO)Bracket (PTO)
-
65270500342 Hose (PTO)Hose (PTO)
-
66270500384 GasketGasket
-
67270500441 Hose Ass'yHose Ass'y
-
68270500319 Carburator Linkage. Includes 68 - 70.Carburator Linkage. Includes 68 - 70.
-
69270500351 NutNut
-
270500352 NutNut
-
70270500442 HoseHose
-
71270500401 ClipClip
-
72270500443 JetJet
-
73293850018 ClipClip
-
74234081600 Flat Washer 8 mmFlat Washer 8 mm
-
75293250066 GasketGasket
-
76275500139 Hose (Meter)Hose (Meter)
-
77293650042 Oetiker ClampOetiker Clamp
-
78293650071 Oetiker ClampOetiker Clamp
-
79293500345 HoseHose
-
80293650038 Oetiker ClampOetiker Clamp
-
81231182060 Socket Head Screw M8 x 120 (Scotch Grip)Socket Head Screw M8 x 120 (Scotch Grip)
-
82293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
