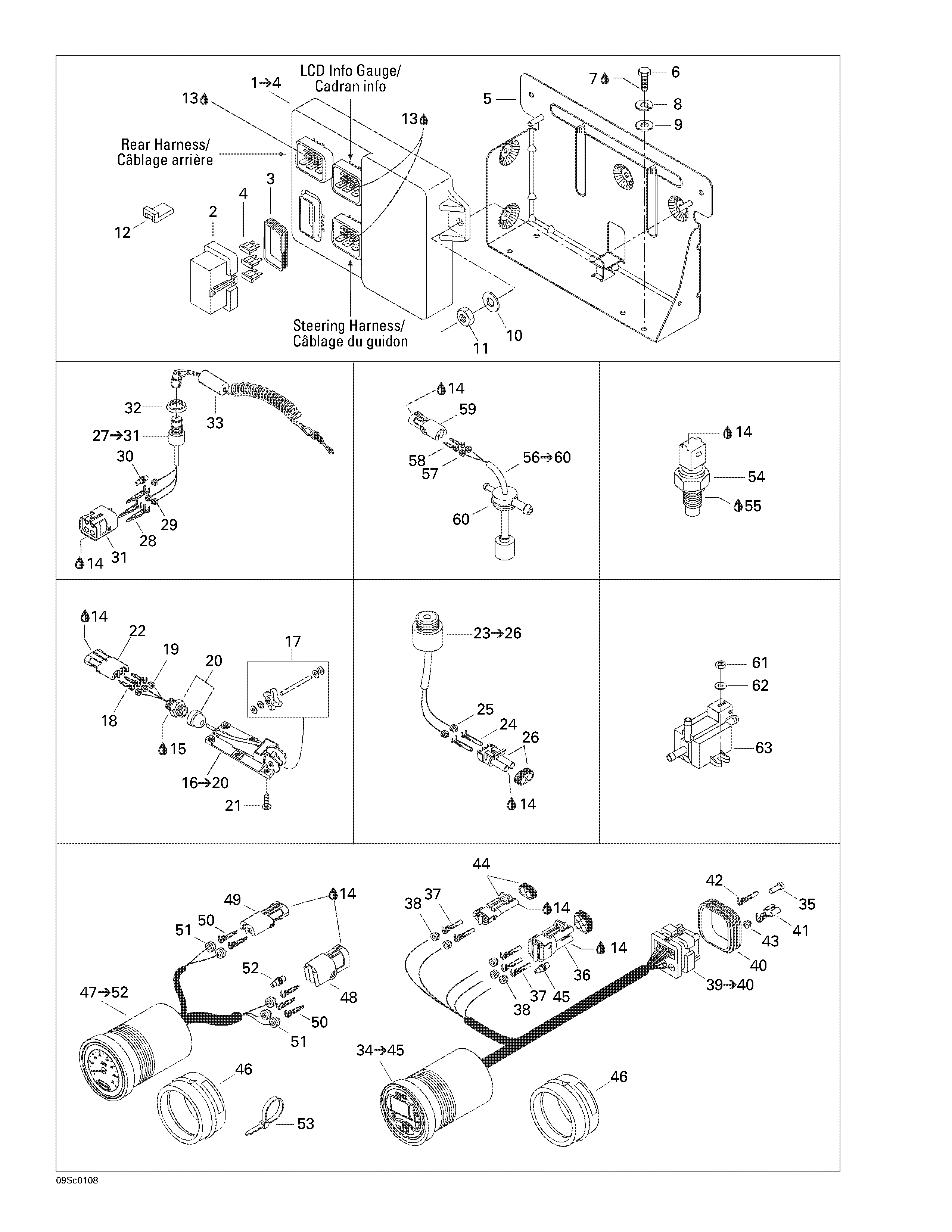

10- Electronic Module And Electrical Accessories для BRP RX, 5532/5533/5542/5543 - 2001
-
№АртикулНазвание
-
1278001718 Electronic Module Ass'y. Includes 1 - 4.Electronic Module Ass'y. Includes 1 - 4.
-
2278001069 Fuse HolderFuse Holder
-
3278001070 SealSeal
-
4278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
5278001563 Module SupportModule Support
-
6243042060 Hex. Screw M4.8 x 20Hex. Screw M4.8 x 20
-
7293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
8211200043 Lock WasherLock Washer
-
9234052600 Flat Washer 5 mmFlat Washer 5 mm
-
10234062600 Flat Washer 6 mmFlat Washer 6 mm
-
11232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
12278001166 Module ProtectorModule Protector
-
13293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
16278001595 Speed Sensor. Includes 16 - 20.Speed Sensor. Includes 16 - 20.
-
17295500108 Paddle Wheel KitPaddle Wheel Kit
-
18278000222 Male TerminalMale Terminal
-
19278000218 Wire SealWire Seal
-
20293710031 Electrical ConnectorElectrical Connector
-
21250000020 Phillips Screw M5 x 10 (Scotch Grip)Phillips Screw M5 x 10 (Scotch Grip)
-
22278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
23278000978 Buzzer Ass'y. Includes 23 - 26.Buzzer Ass'y. Includes 23 - 26.
-
24278000223 Female TerminalFemale Terminal
-
25278000218 Wire SealWire Seal
-
26278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
27278000977 Safety Switch. Includes 27 - 31.Safety Switch. Includes 27 - 31.
-
28278000222 Male TerminalMale Terminal
-
29278000218 Wire SealWire Seal
-
30278000216 Wire Seal (Cap)Wire Seal (Cap)
-
31278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
32278000508 Safety Switch NutSafety Switch Nut
-
33278001543 Safety Landyard Ass'ySafety Landyard Ass'y
-
34278001471 LCD Info Gauge. Includes 34 - 45.LCD Info Gauge. Includes 34 - 45.
-
35293000070 Sealing CapSealing Cap
-
36278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
37278000223 Female TerminalFemale Terminal
-
38278001065 Wire SealWire Seal
-
39278000993 Male Housing (26 Circuits). Includes 39 - 40.Male Housing (26 Circuits). Includes 39 - 40.
-
40278001307 Wire SealWire Seal
-
41278000994 Female TerminalFemale Terminal
-
42278000995 Female TerminalFemale Terminal
-
43278000996 Wire SealWire Seal
-
44278000220 Male Housing (2 Circuit)Male Housing (2 Circuit)
-
45278000216 Wire Seal (Cap)Wire Seal (Cap)
-
46293720047 Gauge SupportGauge Support
-
47278001359 Speedometer. Includes 47 - 52.Speedometer. Includes 47 - 52.
-
48278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
49278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
50278000222 Male TerminalMale Terminal
-
51278001065 Wire SealWire Seal
-
52278000216 Wire Seal (Cap)Wire Seal (Cap)
-
53414115200 Tie RapTie Rap
-
54278001016 Temperature SensorTemperature Sensor
-
55293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
56278001402 Oil sensor. Includes 56 - 60.Oil sensor. Includes 56 - 60.
-
57278000218 Wire SealWire Seal
-
58278000222 Male TerminalMale Terminal
-
59278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
60293720008 GrommetGrommet
-
61232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
62234051600 Flat Washer 5 mmFlat Washer 5 mm
-
63270600005 Solenoid ValveSolenoid Valve
