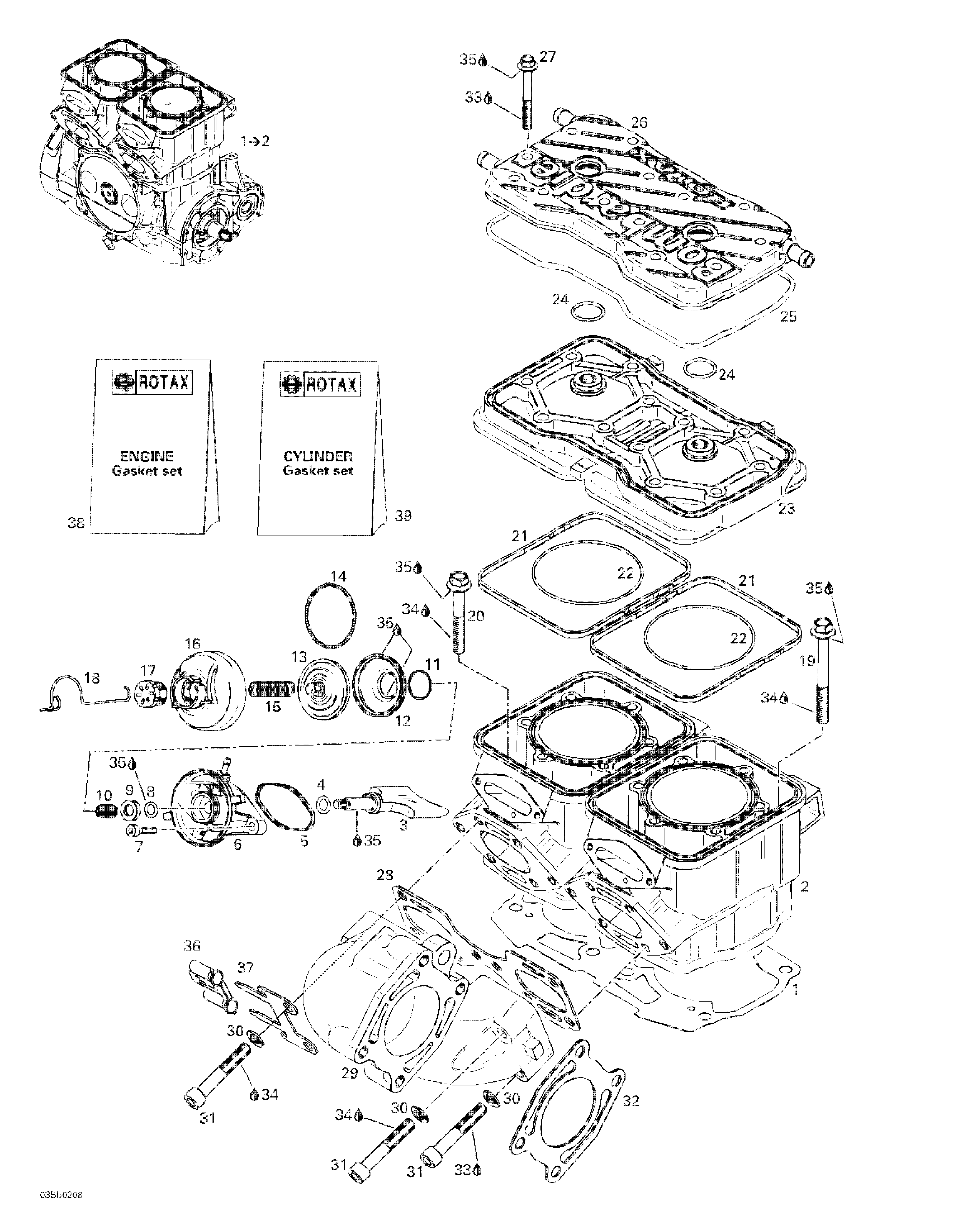

01- Cylinder, Exhaust Manifold для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1290078703 Short Block > Ass'y. Includes 1 - 2.Short Block > Ass'y. Includes 1 - 2.
-
290931728 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931726 Gasket Cylinder 0.4 mmGasket Cylinder 0.4 mm
-
290931725 Gasket Cylinder 0.3 mmGasket Cylinder 0.3 mm
-
2290923846 Cylinder with SleeveCylinder with Sleeve
-
3290854354 Exhaust ValveExhaust Valve
-
4290931765 O-RingO-Ring
-
5290931670 GasketGasket
-
6290854438 Valve HousingValve Housing
-
7205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
8290931765 O-RingO-Ring
-
9290926225 Supporting RingSupporting Ring
-
10290838260 Compression SpringCompression Spring
-
11420838253 Spring ClampSpring Clamp
-
12290260723 BellowsBellows
-
13290854446 Exhaust ValveExhaust Valve
-
14290239048 SpringSpring
-
15290939137 Compression SpringCompression Spring
-
16290911558 Valve CoverValve Cover
-
17420241221 Adjustment ScrewAdjustment Screw
-
18290838083 Spring ClipSpring Clip
-
19290941903 Hex. Flanged Screw M10 x 105Hex. Flanged Screw M10 x 105
-
20290941333 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
21290931420 Rubber RingRubber Ring
-
22290931410 O-RingO-Ring
-
23290923308 Head Cylinder (Silver)Head Cylinder (Silver)
-
24420430782 O-RingO-Ring
-
25290831550 O-RingO-Ring
-
26290923313 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
27290240728 Flanged Hex. Screw M8 x 60Flanged Hex. Screw M8 x 60
-
28290931481 GasketGasket
-
29290979484 Exhaust ManifoldExhaust Manifold
-
30234101601 Lock Washer 10 mmLock Washer 10 mm
-
31205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
32290931503 GasketGasket
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
35413707000 Molykote 111Molykote 111
-
36278000213 InsolatorInsolator
-
37278001273 Ground PlateGround Plate
-
38290886392 Engine Gasket SetEngine Gasket Set
-
39290886396 Cylinder Gasket SetCylinder Gasket Set
