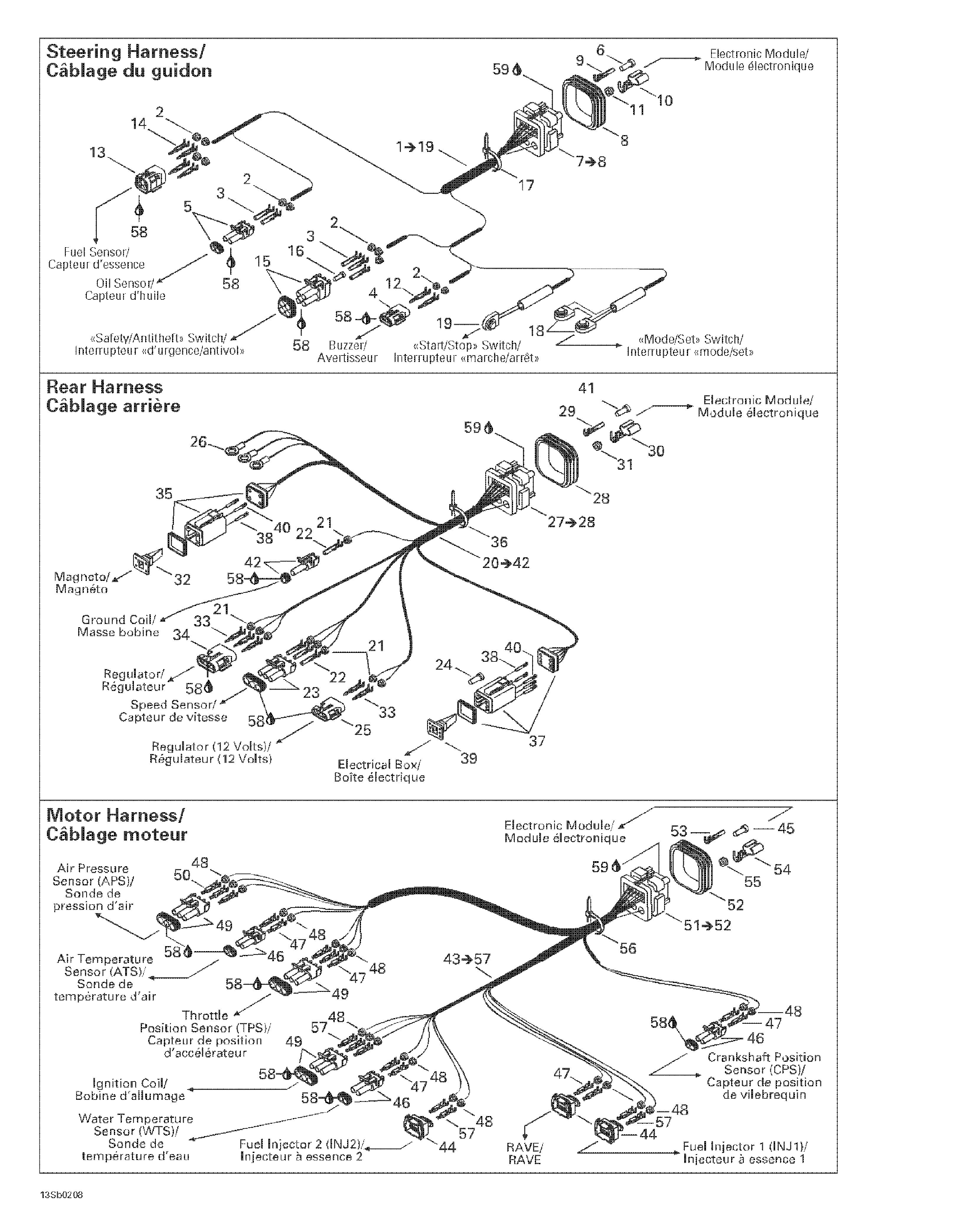

10- Electrical Harness для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1278001498 Steering Harness. Includes 1 - 19.Steering Harness. Includes 1 - 19.
-
2278000218 Wire SealWire Seal
-
3278000223 Female TerminalFemale Terminal
-
4278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
5278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
6293000070 Sealing CapSealing Cap
-
7278001062 Male Housing (26 Circuits). Includes 7 - 8.Male Housing (26 Circuits). Includes 7 - 8.
-
8278001307 Wire SealWire Seal
-
9278000995 Female TerminalFemale Terminal
-
10278000994 Female TerminalFemale Terminal
-
11278000996 Wire SealWire Seal
-
12278000222 Male TerminalMale Terminal
-
13278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
14278001114 Terminal FemaleTerminal Female
-
15278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
16278000216 Wire Seal (Cap)Wire Seal (Cap)
-
17293750002 Tie Rap 130 mmTie Rap 130 mm
-
18278001375 > Switch> Switch
-
19278001405 > Switch> Switch
-
20278000951 Rear Harness. Includes 20 - 42.Rear Harness. Includes 20 - 42.
-
21278000218 Wire SealWire Seal
-
22278000223 Female TerminalFemale Terminal
-
23278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
24293000052 Sealing CapSealing Cap
-
25278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
26409003200 Open BarrelOpen Barrel
-
27278001063 Male Housing (26 Circuits). Includes 27 - 28.Male Housing (26 Circuits). Includes 27 - 28.
-
28278001307 Wire SealWire Seal
-
29278000995 Female TerminalFemale Terminal
-
30409011700 Female TerminalFemale Terminal
-
31278001223 Wire SealWire Seal
-
32278000738 Male Secondary Lock (4 Circuits)Male Secondary Lock (4 Circuits)
-
33409004300 Male TerminalMale Terminal
-
34278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
35278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
36293750002 Tie Rap 130 mmTie Rap 130 mm
-
37278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
38278000632 Female TerminalFemale Terminal
-
39278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
40278001661 Female TerminalFemale Terminal
-
41293000070 Sealing CapSealing Cap
-
42278000219 Male Housing (1 Circuit)Male Housing (1 Circuit)
-
43278000950 Engine Harness. Includes 43 - 57.Engine Harness. Includes 43 - 57.
-
44278001003 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
45293000070 Sealing CapSealing Cap
-
46278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
47278000998 Female TerminalFemale Terminal
-
48278000999 Wire SealWire Seal
-
49278000997 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
50278001210 Male TerminalMale Terminal
-
51278001211 Male Housing (26 Circuits). Includes 51 - 52.Male Housing (26 Circuits). Includes 51 - 52.
-
52278001307 Wire SealWire Seal
-
53278000995 Female TerminalFemale Terminal
-
54278000994 Female TerminalFemale Terminal
-
55278001223 Wire SealWire Seal
-
56293750002 Tie Rap 130 mmTie Rap 130 mm
-
57278001310 Female TerminalFemale Terminal
-
58293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
59293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
