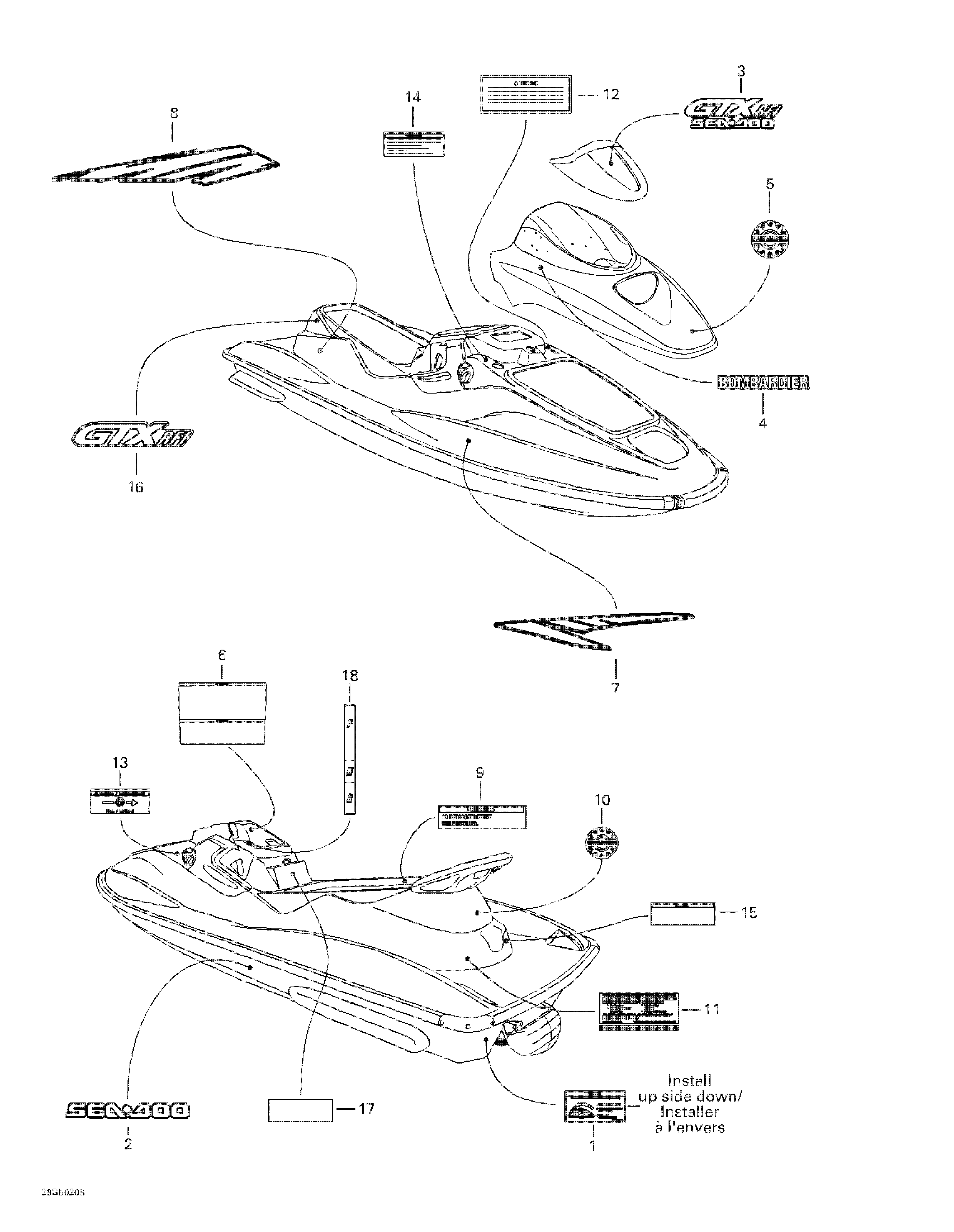

09- Decals для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1219900934 Caution Label (Tip Over)Caution Label (Tip Over)
-
2219902007 > Decal> Decal
-
3219901811 Identification Decal >Identification Decal >
-
4219901548 > Decal> Decal
-
5516000983 > Logo> Logo
-
6219901713 Warning DecalWarning Decal
-
7219901806 R.H. Front DecalR.H. Front Decal
-
219901805 LH Front DecalLH Front Decal
-
8219901808 R.H. Rear DecalR.H. Rear Decal
-
219901807 LH Rear DecalLH Rear Decal
-
9219900965 Warning Label (Battery)Warning Label (Battery)
-
10219901180 > Logo (Rear)> Logo (Rear)
-
11219900656 > Label> Label
-
12219901209 Warning Label (Fuel)Warning Label (Fuel)
-
13219901914 Warning Label (Fuel)Warning Label (Fuel)
-
14219901601 Warning Label (Oil)Warning Label (Oil)
-
15219900977 Warning LabelWarning Label
-
16219901810 > Decal> Decal
-
17219902021 E.P.A. LabelE.P.A. Label
-
18219902008 Reverse DecalReverse Decal
