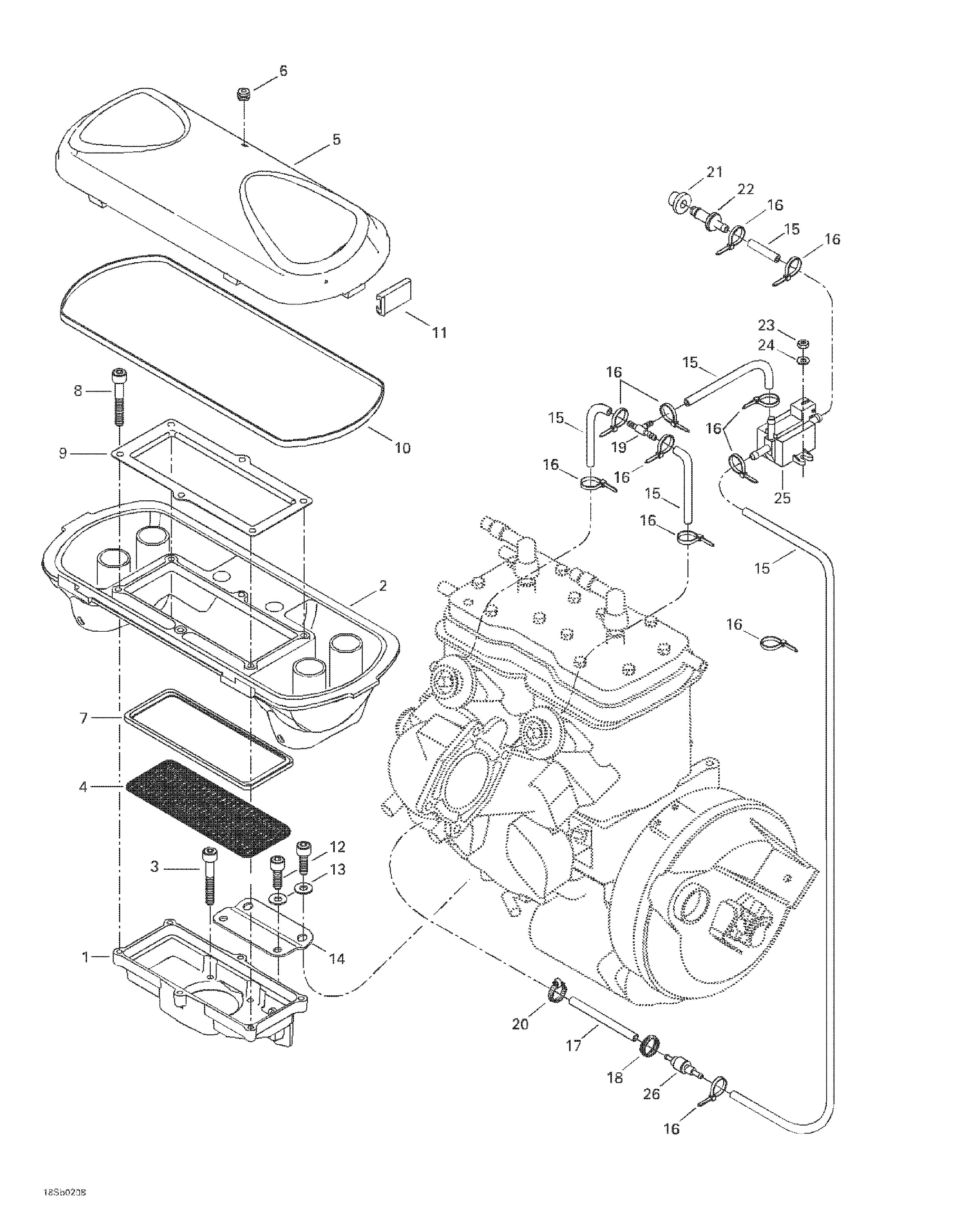

02- Air Intake System для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1273000086 Arrester HousingArrester Housing
-
2273000103 Air Silencer BaseAir Silencer Base
-
3205569060 Socket Head Screw M6 x 90 (Scotch Grip)Socket Head Screw M6 x 90 (Scotch Grip)
-
4273000118 Flame ArresterFlame Arrester
-
5273000115 Air Silencer CoverAir Silencer Cover
-
6293830005 Rubber PlugRubber Plug
-
7273000020 IsolatorIsolator
-
8205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
9273000059 HolderHolder
-
10293250023 GasketGasket
-
11273000006 Retainer ClipRetainer Clip
-
12205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
13234061600 Flat Washer 6 mmFlat Washer 6 mm
-
14270000248 SupportSupport
-
15270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
16293750001 Tie Rap 94 mmTie Rap 94 mm
-
17275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
18293650050 Oetiker ClampOetiker Clamp
-
19293710068 T-FittingT-Fitting
-
20293650128 Tridon ClampTridon Clamp
-
21293720029 GrommetGrommet
-
22293700031 FittingFitting
-
23232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
24234051600 Flat Washer 5 mmFlat Washer 5 mm
-
25270600005 Solenoid ValveSolenoid Valve
-
26275500479 Check ValveCheck Valve
