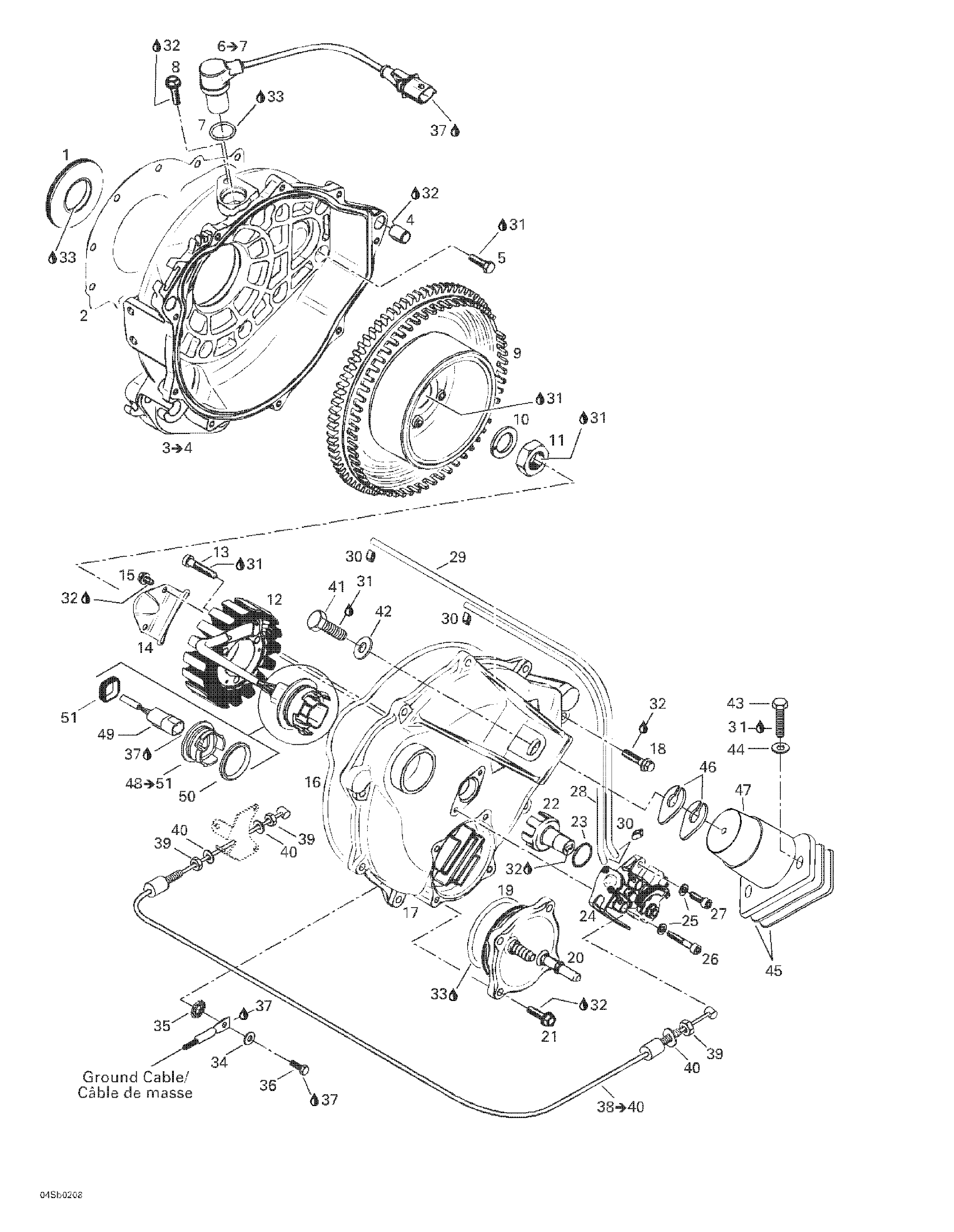

03- Magneto, Oil Pump для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1290830749 Oil SealOil Seal
-
2290931470 GasketGasket
-
3290811011 Ignition Housing (Silver). Includes 3 - 4.Ignition Housing (Silver). Includes 3 - 4.
-
4290229153 Dowel TubeDowel Tube
-
5420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
6278001346 Crank Sensor. Includes 6 - 7.Crank Sensor. Includes 6 - 7.
-
7293300051 O-RingO-Ring
-
8210361660 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
9290966564 Trigger WheelTrigger Wheel
-
10290945757 Lock Washer 18 mmLock Washer 18 mm
-
11420942220 Hex. Nut M18Hex. Nut M18
-
12290887950 Stator Plate Ass'yStator Plate Ass'y
-
13290640051 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
14290851400 Holding StripHolding Strip
-
15207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
16420950360 O-RingO-Ring
-
17290811022 Ignition CoverIgnition Cover
-
18290240033 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
19290850390 O-RingO-Ring
-
20290811220 Waterchannel CoverWaterchannel Cover
-
21290941253 Taptite Screw M6 x 20Taptite Screw M6 x 20
-
22290837392 Shaft Oil PumpShaft Oil Pump
-
23293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
24290887339 Oil Pump Ass'yOil Pump Ass'y
-
25290845389 Lock Washer 5 mmLock Washer 5 mm
-
26290940883 Socket Head Screw M5 x 30Socket Head Screw M5 x 30
-
27205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
28414413800 Hose (Foot)Hose (Foot)
-
29414413800 Hose (Foot)Hose (Foot)
-
30420256408 ClampClamp
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
33413707000 Molykote 111Molykote 111
-
34234062600 Flat Washer 6 mmFlat Washer 6 mm
-
35234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
36207361660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38270000437 Injection Cable Ass'y. Includes 38 - 40.Injection Cable Ass'y. Includes 38 - 40.
-
39232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
40234061600 Flat Washer 6 mmFlat Washer 6 mm
-
41207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
42234082600 Flat Washer 8 mmFlat Washer 8 mm
-
43207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
44234081600 Flat Washer 8 mmFlat Washer 8 mm
-
45270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
46270000024 Shim 0.4 mmShim 0.4 mm
-
270000025 Shim 1.3 mmShim 1.3 mm
-
47270000426 Rubber MountRubber Mount
-
48270000243 Adaptor Ass'y. Includes 48 - 51.Adaptor Ass'y. Includes 48 - 51.
-
49278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
50293300033 GasketGasket
-
51293200042 GasketGasket
-
52290886392 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
53290886396 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
