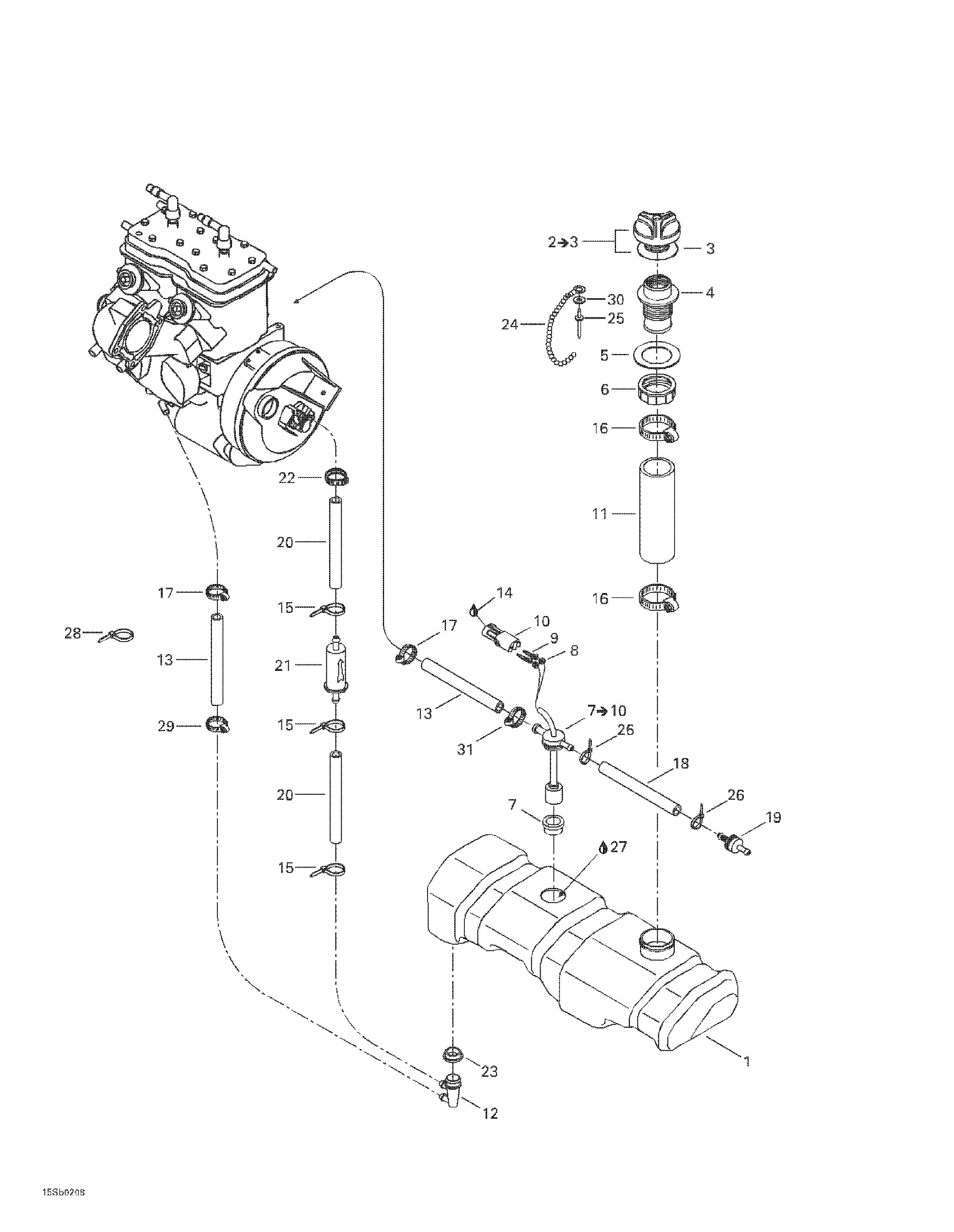

02- Oil Injection System для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1275000238 Oil TankOil Tank
-
2275000186 Oil Cap. Includes 2 - 3.Oil Cap. Includes 2 - 3.
-
3293250025 O-RingO-Ring
-
4275000242 Filler NeckFiller Neck
-
5293250132 GasketGasket
-
6211100013 Nut-Neck Oil FillerNut-Neck Oil Filler
-
7278001401 Oil Level Sensor Ass'y. Includes 7 - 10.Oil Level Sensor Ass'y. Includes 7 - 10.
-
7293720008 GrommetGrommet
-
8278000218 Wire SealWire Seal
-
9278000222 Male TerminalMale Terminal
-
10278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
11275000230 Filler HoseFiller Hose
-
12293710051 Fitting Elbow 90 DegFitting Elbow 90 Deg
-
13275000008 Hose 12 mm (Meter)Hose 12 mm (Meter)
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15293750001 Tie RapTie Rap
-
16293650035 Tridon ClampTridon Clamp
-
17293650128 Tridon Hose ClampTridon Hose Clamp
-
18275500549 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
19275500398 Check ValveCheck Valve
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21275000051 Oil FilterOil Filter
-
22293650042 Oetiker ClampOetiker Clamp
-
23293720008 GrommetGrommet
-
24275500015 Oil Cap ChainOil Cap Chain
-
25390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liters)Injection Oil (3 x 4 Liters)
-
413803200 Injection Oil (Drum)Injection Oil (Drum)
-
413710500 Synthetic Injection Oil (12 x 1 Liter)Synthetic Injection Oil (12 x 1 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liters)Synthetic Injection Oil (3 x 4 Liters)
-
413710700 Synthetic Injection Oil (205 Liters)Synthetic Injection Oil (205 Liters)
-
293600032 Formula XP-S DI Oil (12 x 1 Liters)Formula XP-S DI Oil (12 x 1 Liters)
-
293600033 Formula XP-S DI Oil (3 x 4 Liters)Formula XP-S DI Oil (3 x 4 Liters)
-
293600034 Formula XP-S DI Oil (205 Liters)Formula XP-S DI Oil (205 Liters)
-
28414115200 Tie Rap 180 mmTie Rap 180 mm
-
29293650084 Norma ClampNorma Clamp
-
30234032600 Flat Washer 3 mmFlat Washer 3 mm
-
31293650129 Tridon Hose ClampTridon Hose Clamp
