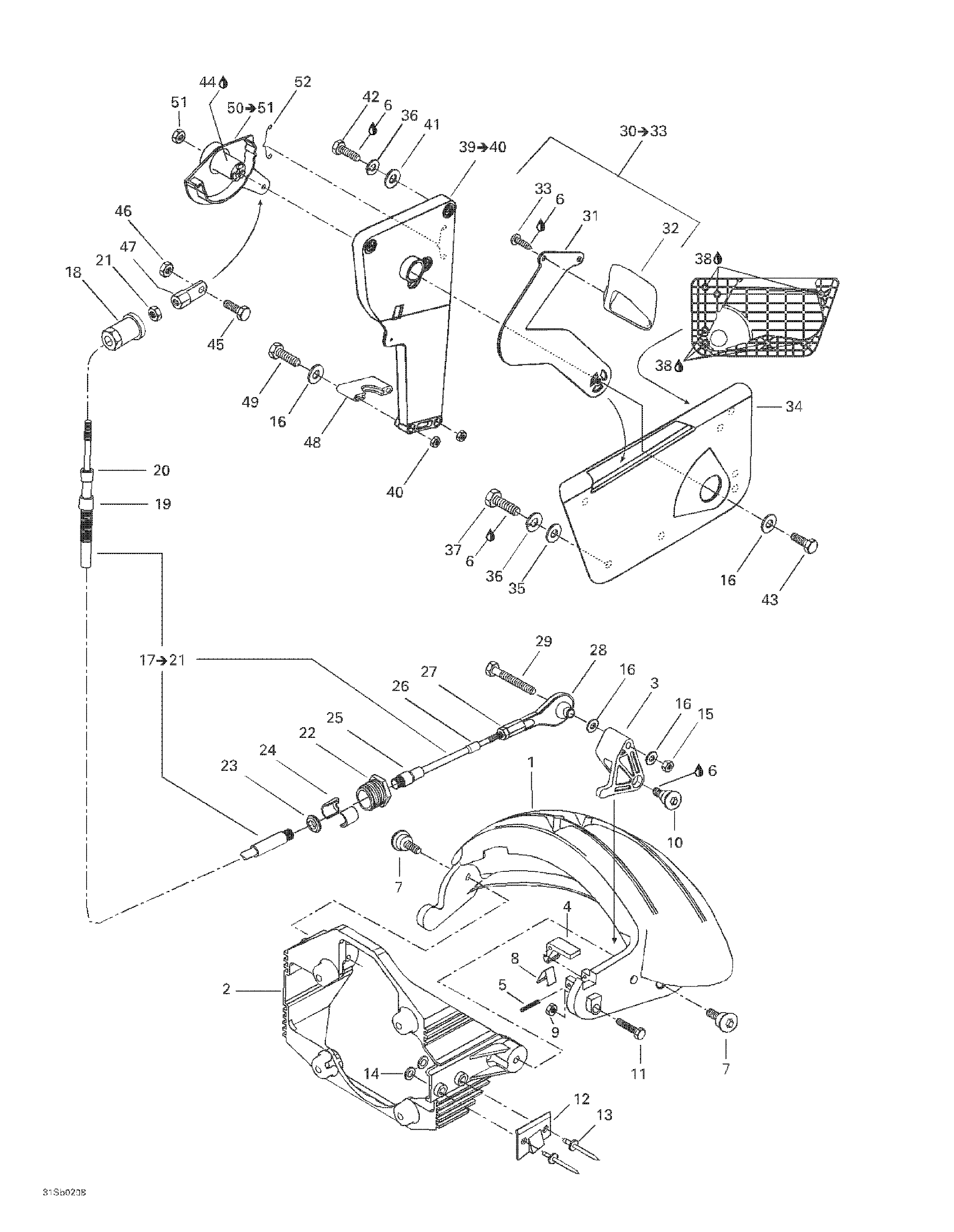

05- Reverse для BRP GTX RFI, 5566/5565 - 2002
-
№АртикулНазвание
-
1271000947 Gate - ReverseGate - Reverse
-
2271000846 Gate SupportGate Support
-
3271000583 Cable LeverCable Lever
-
4271000430 Hook LeverHook Lever
-
5211400009 Roll Pin 1/8''Roll Pin 1/8''
-
6293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
7211000007 ScrewScrew
-
8271000431 SpringSpring
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10211000077 Flanged Screw M8Flanged Screw M8
-
11207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
12271000485 Stop PawlStop Pawl
-
13293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
14211200035 Flat WasherFlat Washer
-
15232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17277000725 Reverse Cable Ass'y. Includes 17 - 21.Reverse Cable Ass'y. Includes 17 - 21.
-
18277000167 Knob AdjusterKnob Adjuster
-
19277000473 Large BootLarge Boot
-
20277000466 Small BootSmall Boot
-
21212100005 Hex. Nut 10-32Hex. Nut 10-32
-
22277000052 Cable LockCable Lock
-
23211100009 Rubber WasherRubber Washer
-
24277000055 Half RingHalf Ring
-
25277000473 Large BootLarge Boot
-
26277000466 Small BootSmall Boot
-
27212100005 Hex. NutHex. Nut
-
28277000153 Ball JointBall Joint
-
29207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
30271000586 Handle Reverse Ass'y. Includes 30 - 33.Handle Reverse Ass'y. Includes 30 - 33.
-
31271000613 LeverLever
-
32271000614 Reverse HandleReverse Handle
-
33208451260 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
34271001055 Reverse Handle HousingReverse Handle Housing
-
35211200033 Flat WasherFlat Washer
-
36234151601 Lock Washer 5 mmLock Washer 5 mm
-
37207151260 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
38296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
39271000584 Reverse Cable Support. Includes 39 - 40.Reverse Cable Support. Includes 39 - 40.
-
40232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
41234052600 Flat Washer 5 mmFlat Washer 5 mm
-
42207151660 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
43207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
44293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
45211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
46232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
47277000646 JointJoint
-
48277000162 Thrust SupportThrust Support
-
49207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
50271000585 Lever Interior. Includes 50 - 51.Lever Interior. Includes 50 - 51.
-
51232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
52271000612 SpringSpring
