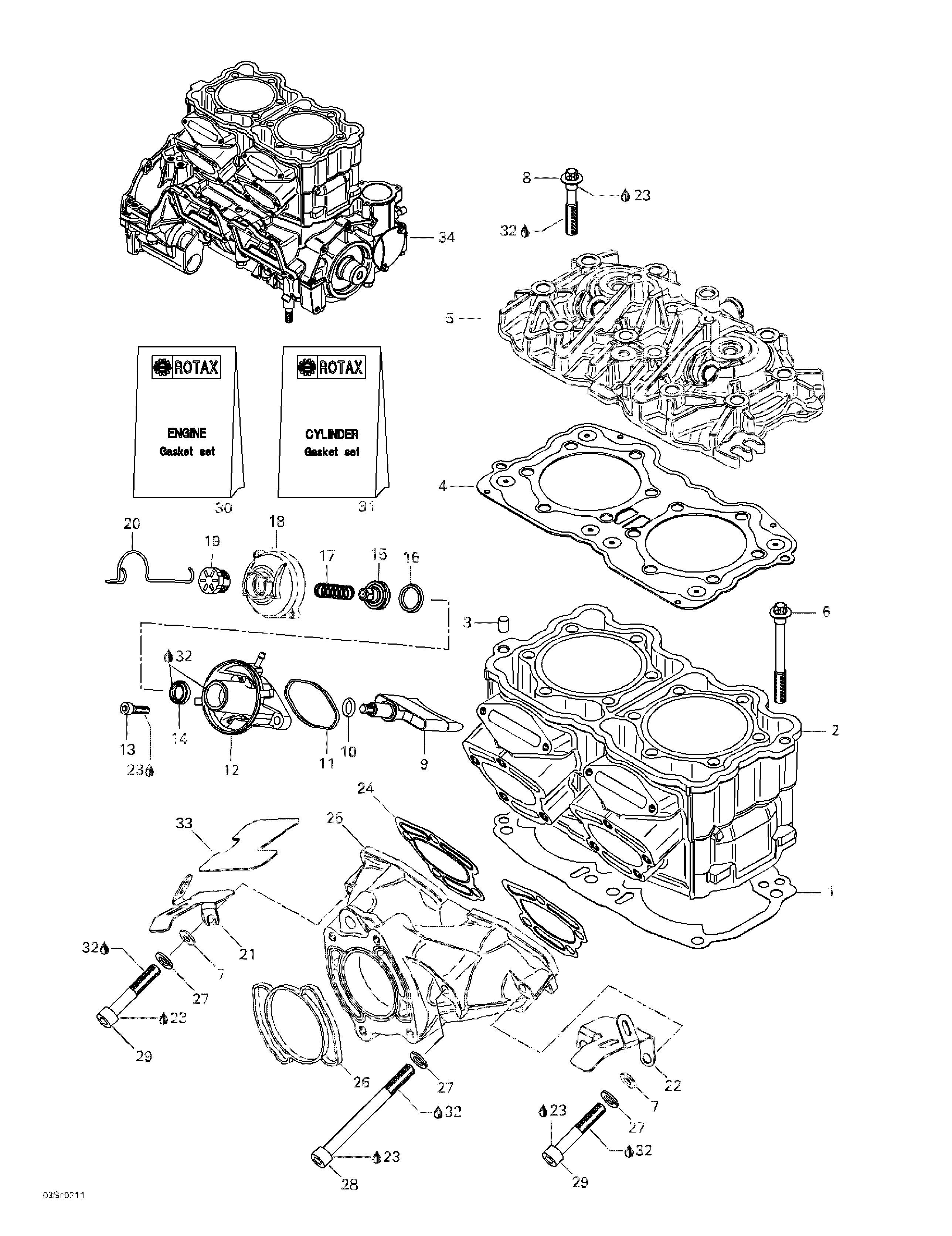

01- Cylinder, Exhaust Manifold для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1290931907 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
290931908 Gasket Cylinder 0.7 mmGasket Cylinder 0.7 mm
-
290931906 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931905 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
2290613576 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290632010 Pin 8 x 12Pin 8 x 12
-
4290931706 Cylinder Head GasketCylinder Head Gasket
-
5290613681 Head Cylinder (Silver)Head Cylinder (Silver)
-
6290640293 Torx Screw M10 x 94Torx Screw M10 x 94
-
7234000600 Flat Washer 10 mmFlat Washer 10 mm
-
8290640308 Screw Hex. Flange M10 x 60Screw Hex. Flange M10 x 60
-
9290854540 Exhaust ValveExhaust Valve
-
10290250462 O-RingO-Ring
-
11290931670 Rubber GasketRubber Gasket
-
12290854555 Valve HousingValve Housing
-
13205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
14290931970 Sealing RingSealing Ring
-
15290854560 Exhaust Valve PistonExhaust Valve Piston
-
16290931950 Grooved RingGrooved Ring
-
17290939130 Compression SpringCompression Spring
-
18290911558 Valve CoverValve Cover
-
19290241222 Screw AdjustmentScrew Adjustment
-
20290838083 Spring ClipSpring Clip
-
21273000170 Duct Support (MAG)Duct Support (MAG)
-
22273000169 Duct Support (PTO)Duct Support (PTO)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24290931653 GasketGasket
-
25290979606 Exhaust ManifoldExhaust Manifold
-
26290931990 Exhaust GasketExhaust Gasket
-
27234101601 Lock Washer 10 mmLock Washer 10 mm
-
28290941483 Socket Head Screw M10 x 110Socket Head Screw M10 x 110
-
29205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
30290888134 Engine Gasket SetEngine Gasket Set
-
31290888139 Cylinder Gasket SetCylinder Gasket Set
-
32413707000 Molykote 111Molykote 111
-
33273000165 Pad ProtectorPad Protector
-
34290094706 Short Block Ass'yShort Block Ass'y
