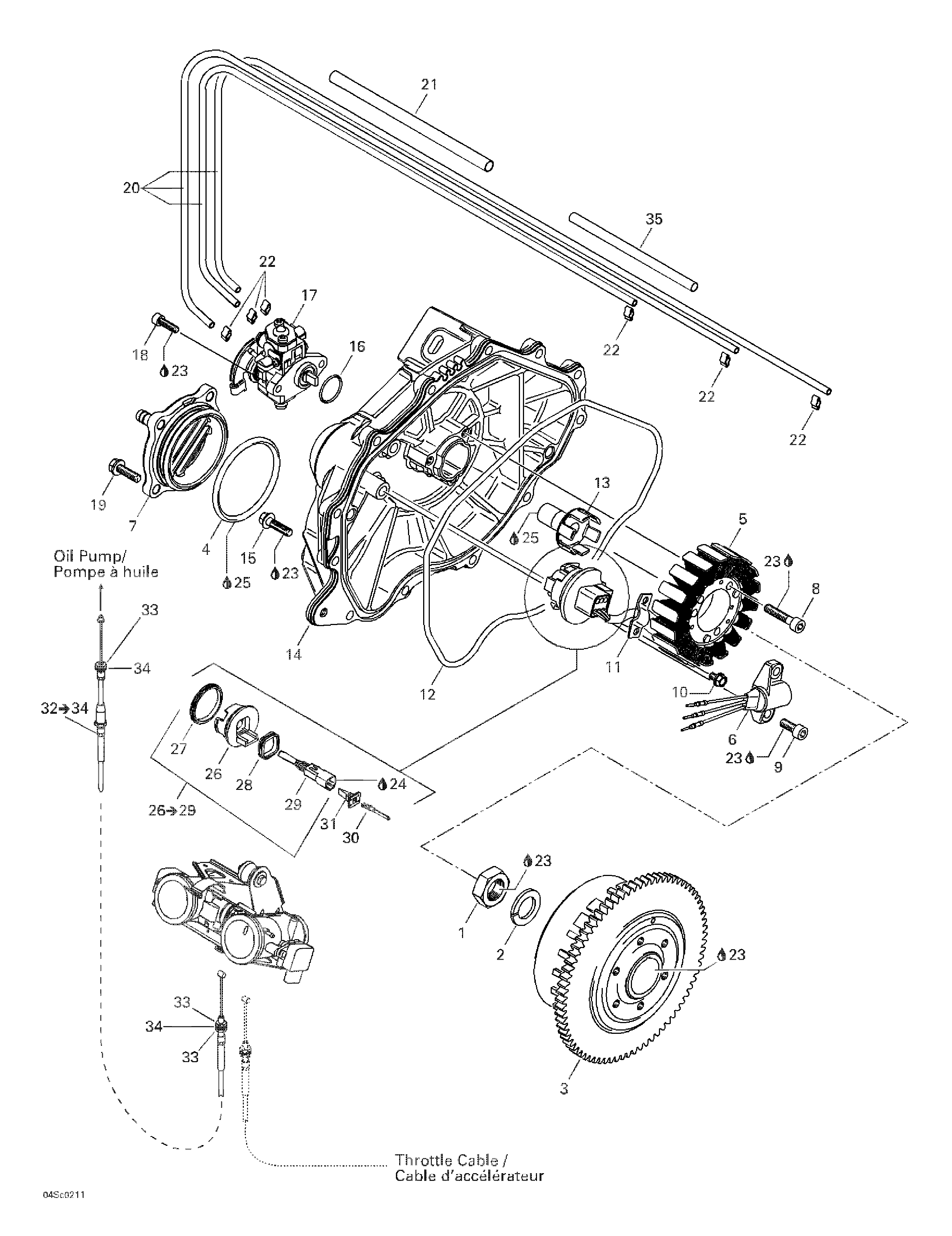

03- Magneto, Oil Pump для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1420942220 Hex. Nut M18Hex. Nut M18
-
2290945757 Lock Washer 18 mmLock Washer 18 mm
-
3290966822 Flywheel HubFlywheel Hub
-
4290850390 O-RingO-Ring
-
5290888652 Stator Plate Ass'yStator Plate Ass'y
-
6290966760 Sensor Ass'ySensor Ass'y
-
7290811225 Waterchannel CoverWaterchannel Cover
-
8290640051 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
9420940566 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
10207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
11290853080 Retainer PlateRetainer Plate
-
12290931690 O-RingO-Ring
-
13290837395 Oil Pump ShaftOil Pump Shaft
-
14290811421 Ignition CoverIgnition Cover
-
15290240033 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
16293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
17290888540 Oil Pump Ass'yOil Pump Ass'y
-
18205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
19290941253 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
20414413800 Hose (Foot)Hose (Foot)
-
21290960205 Protection HoseProtection Hose
-
22293650105 ClampClamp
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
25413707000 Molykote 111Molykote 111
-
26707000031 Adaptor Ass'y. Includes 26 - 29.Adaptor Ass'y. Includes 26 - 29.
-
26270000138 AdaptorAdaptor
-
27293300033 GasketGasket
-
28293200055 GasketGasket
-
29270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
30278000631 Male TerminalMale Terminal
-
31278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
32270000546 Injection Cable. Includes 32 - 34.Injection Cable. Includes 32 - 34.
-
33232160600 Nut Hex. M6Nut Hex. M6
-
34232061600 Flat Washer 6 mmFlat Washer 6 mm
-
35290260465 Protection HoseProtection Hose
-
36290888134 Engine Gasket Set (Not Shown). .Engine Gasket Set (Not Shown). .
-
37290888139 Cylinder Gasket Set (Not Shown). .Cylinder Gasket Set (Not Shown). .
