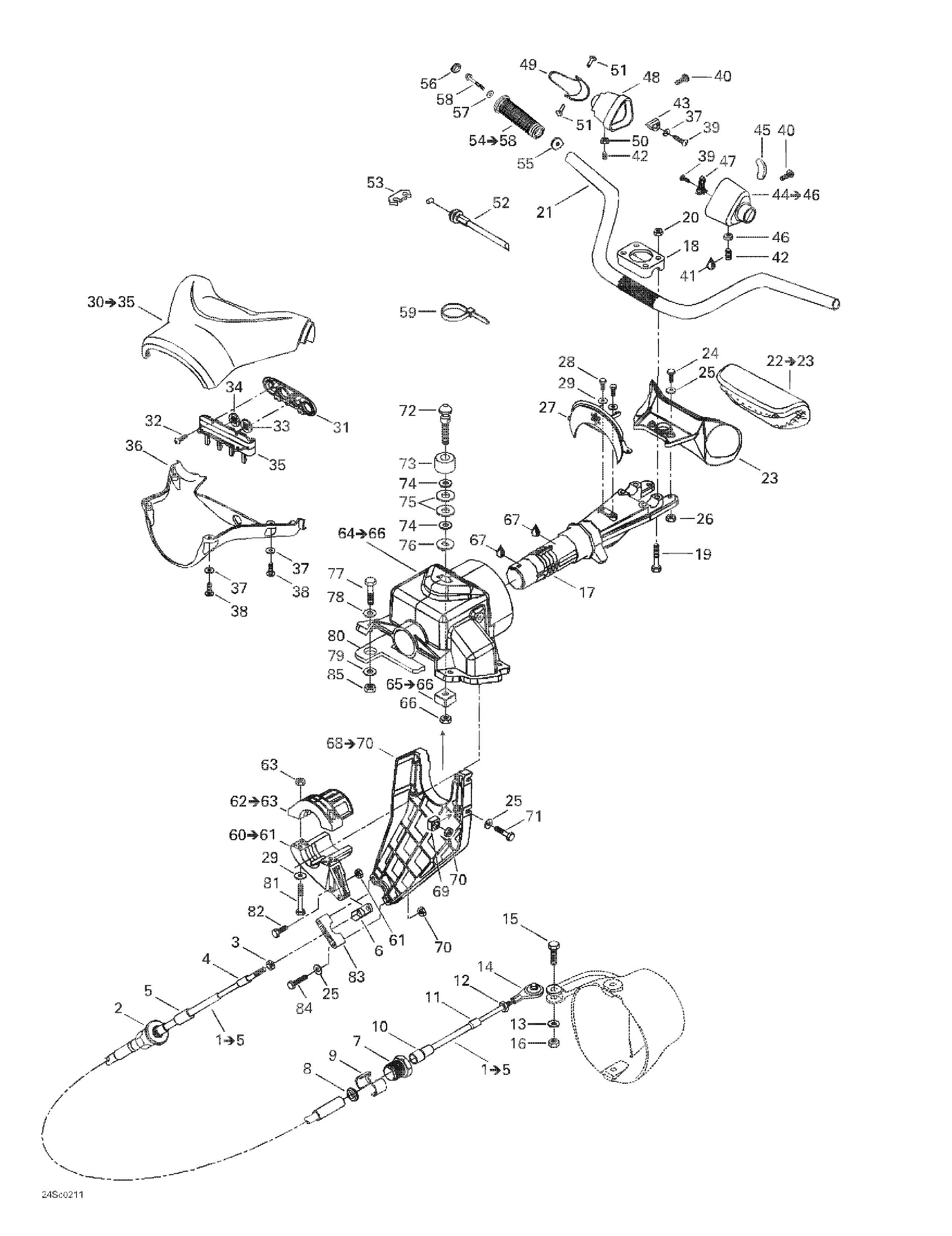

07- Steering System для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1204390205 Steering Cable. Includes 1 - 5.Steering Cable. Includes 1 - 5.
-
2277000782 Knob AdjusterKnob Adjuster
-
3211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
4277000849 Small BootSmall Boot
-
5277000846 Large BootLarge Boot
-
6277000774 JointJoint
-
7277000784 Cable LockCable Lock
-
8293830063 Rubber WasherRubber Washer
-
9277000783 Half RingHalf Ring
-
10277000846 Large BootLarge Boot
-
11277000849 Small BootSmall Boot
-
12211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
13234061600 Flat Washer 6 mmFlat Washer 6 mm
-
14277000775 Ball JointBall Joint
-
15207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17277000562400 Steering StemSteering Stem
-
18277000142 Steering ClampSteering Clamp
-
19207085060 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
20232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
21277000840 Handle barHandle bar
-
22277000891 Handle pad. Includes 22 - 23.Handle pad. Includes 22 - 23.
-
23277000687 Pad SupportPad Support
-
24207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
25234061600 Flat Washer 6 mmFlat Washer 6 mm
-
26232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
27277000766 PlatePlate
-
28211000036 Hex. Forming ScrewHex. Forming Screw
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30277000753 Upper Steering Cover. Includes 30 - 35.Upper Steering Cover. Includes 30 - 35.
-
31277000688 Retainer PlateRetainer Plate
-
32241140060 Screw K40 x 10Screw K40 x 10
-
33293000079 > Knob> Knob
-
34293000080 > Knob> Knob
-
35277000563 Switch SupportSwitch Support
-
36277000808 Lower Steering CoverLower Steering Cover
-
37234051600 Flat Washer 5 mmFlat Washer 5 mm
-
38241141660 Screw K40 x 16Screw K40 x 16
-
39209631360 Tapping ScrewTapping Screw
-
40209630960 Tapping ScrewTapping Screw
-
41293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
42206361260 Set Screw M6 x 12Set Screw M6 x 12
-
43293450153 Nylon InsertNylon Insert
-
44277000869 LH Handle Housing Ass'y. Includes 44 - 46.LH Handle Housing Ass'y. Includes 44 - 46.
-
45277000306 Switch KnobSwitch Knob
-
46232860600 Square Nut M6Square Nut M6
-
47277000845 Retainer PlateRetainer Plate
-
48277000872 Throttle Handle HousingThrottle Handle Housing
-
49277000214 Throttle HandleThrottle Handle
-
50232860600 Square Nut M6Square Nut M6
-
51277000381 PinPin
-
52204390301 Throttle CableThrottle Cable
-
53277000279 Lock TabLock Tab
-
54295500691 Handle Grip Kit. Includes 54 - 58.Handle Grip Kit. Includes 54 - 58.
-
56277000203 Grip CapGrip Cap
-
57234062600 Flat Washer 6 mmFlat Washer 6 mm
-
58250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
59293750001 Tie Rap 94 mmTie Rap 94 mm
-
60277000573 Steering Stem Arm. Includes 60 - 61.Steering Stem Arm. Includes 60 - 61.
-
61232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
62277000519 Thrust Arm. Includes 62 - 63.Thrust Arm. Includes 62 - 63.
-
63232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
64277000898 Steering Support. Includes 64 - 66.Steering Support. Includes 64 - 66.
-
65271001115 Nut Housing. Includes 65 - 66.Nut Housing. Includes 65 - 66.
-
66232001600 Elastic Stop Nut M10Elastic Stop Nut M10
-
67293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
68277000516 Cable Support. Includes 68 - 70.Cable Support. Includes 68 - 70.
-
69269500252 Nut HousingNut Housing
-
70232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
71207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
72291000987 Stud LatchStud Latch
-
73293830025 Rubber PadRubber Pad
-
74234002600 Flat Washer 10 mmFlat Washer 10 mm
-
75291000628 Rubber WasherRubber Washer
-
76293450152 Nylon InsertNylon Insert
-
77207083560 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
78234081600 Flat Washer 8 mmFlat Washer 8 mm
-
79234082600 Flat Washer 8 mmFlat Washer 8 mm
-
80293250068 GasketGasket
-
81207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
82211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
83277000162 Thrust SupportThrust Support
-
84207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
85232581600 Stop Nut Elastic M8Stop Nut Elastic M8
